BianchiArcadex - GRX 810 Di2

Loading..

Unfortunately sold out.

This product variant is currently sold out. If available, you can choose a different color or size, or go back to the previous page.

Questions and Answers

Carbon
Shimano GRX
28" / 700c
Diamond
Disc Brakes

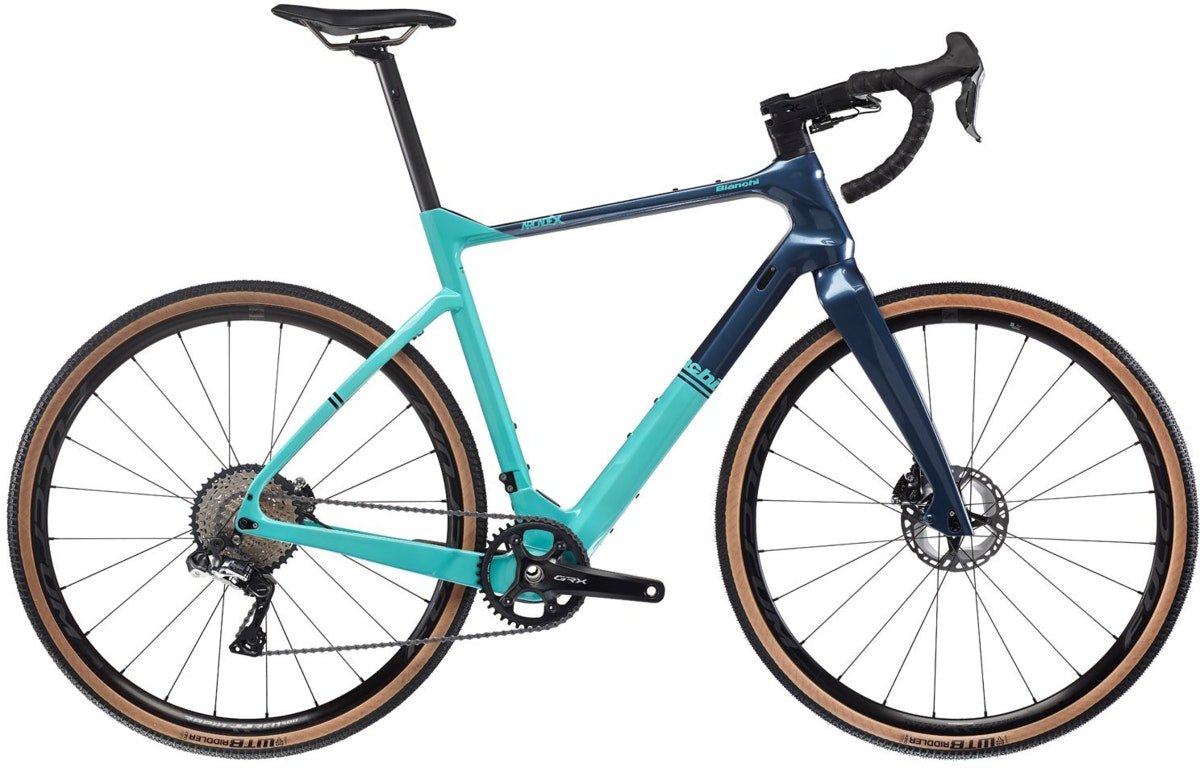

Introducing the Bianchi Arcadex - GRX 810 Di2, a gravel bike that expertly combines the thrill of racing with an adventurous spirit. This bike is designed not just for the hardcore gravel enthusiast but also for those looking to explore varied terrains with confidence and speed. The sculpted Arcadex Carbon frame stands out with its responsiveness, providing an exhilarating ride the moment you star ...Read more

General

  • FrameArcadex Carbon, 1.5" headset, seatpost diam. 31.6mm, thru axle 12x142mm, flat mount caliper, Pressfit 41 BB, compatible with 42mm tire and mudguard predisposition

Brakes

  • BrakeShimano BR-RX810
  • RotorsShimano SM-RT800 Center Lock, diam. 160mm
  • Brake LeverIncluded w/shifters

Wheels & Tires

  • TiresWTB Riddler Race 700x37
  • WheelsFulcrum Rapid Red 500 DB 2WF-R C23 AFS

Cockpit

  • StemReparto Corse by Fsa ST-OS-188/SMR-0°, Alloy 6061 , 1 1/4", rise 0°
  • HeadsetFSA SMR HS with 1.1/8” custom top cone Bianchi, H2475, Internal Headset, Integrated Alloy custom top cup 1.1/8", 1.5", 36°/45° ACB
  • HandlebarReparto Corse Aero shape, Aluminum 6061, reach 70mm, flare angle 16°, drop cc 130mm
  • GripsLa Spirale Ribbon cork

Groupset

  • CassetteShimano XT CS-M8000 11sp, 11-13-15-17-19-21-24-28-32-37-42T
  • GearingShimano GRX
  • CranksetShimano GRX 810 FC-RX810-1 40T, Hollowtech II
  • PedalsSold separately
  • ShiftersShimano GRX 815 Di2 11sp Hydraulic disc brake
  • Bottom BracketShimano SM-BB72-41B
  • Rear DerailleurShimano GRX RX 817 Di2, RD-RX817, 11sp, top normal shadow plus design, direct attachment
  • Chain / BeltShimano Ultegra CN-HG701-11

Saddle

  • SaddleFi'zi:k Argo Tempo R5, nylon carbon reinforced shell w/WingFlex, rail S alloy, 260x150mm
  • Seat PostReparto Corse carbon shaft UD finish, forged alloy head, 15mm offset L350mm, 31,6mm

Suspension

  • ForkBianchi Full Carbon Disc, 1.5" head, flat mount caliper, thru axle 12x100mm

Note on Product Images, Product Description and Specifications

Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components.

Images used on the product pages may partly be sample images and may deviate from the actual configuration. The specified specifications are solely decisive for the scope of delivery and the specific product design.

The specified model year corresponds to the model series defined by the manufacturer and not necessarily to the year of manufacture. Since some models are produced unchanged over several years, the actual year of manufacture may vary. Regardless of this, you will receive a current product in accordance with the specified specifications.

Product descriptions may be partly automatically generated. Despite careful checking, errors cannot be completely ruled out. The product description is therefore not binding; in this case, too, only the specifications are decisive.

Subject to alterations and errors.
