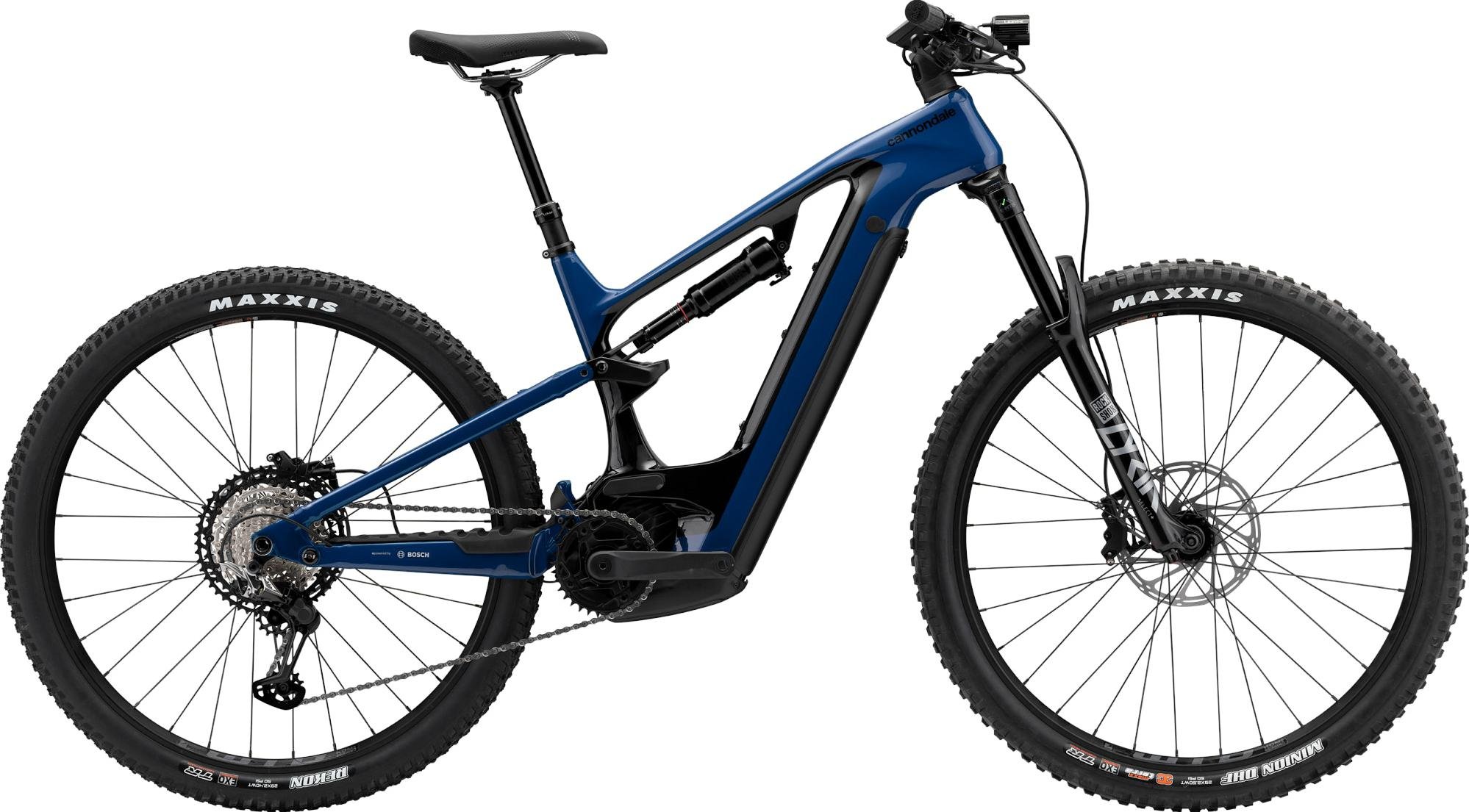

CannondaleMoterra Neo Carbon 1

Loading..

Unfortunately sold out.

This product variant is currently sold out. If available, you can choose a different color or size, or go back to the previous page.

Questions and Answers

Carbon
750
Bosch
Shimano XTR
29"
Diamond
Disc Brakes
The Cannondale Moterra Neo Carbon 1 2022 is a top-tier electric mountain bike designed for those who crave adventure, whether you're a seasoned rider or just looking to elevate your trail experience. With its impressive performance capabilities and smart engineering, this bike brings a level of confidence and ease to rugged terrains, making it a perfect companion for exploring nature.
At the core ...Read more

General

  • FrameMoterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger

Brakes

  • BrakeShimano XT 8120 4-piston hydraulic disc, 203/203mm RT76 rotors
  • Front BrakeShimano XT 8120 4-piston hydraulic disc, 203/203mm RT76 rotors
  • Rear BrakeShimano XT 8120 4-piston hydraulic disc, 203/203mm RT76 rotors
  • Brake LeverShimano XT hydraulic disc

Wheels & Tires

  • Front Tire Size2.6
  • Tire Size2.6
  • SpokesDT Swiss Champion
  • Rear TireMaxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready
  • WheelsWTB KOM Trail i30 TCS, 32h, tubeless ready
  • Wheel Size29
  • Front TireMaxxis Minion DHF, 29x2.6", EXO, tubeless ready
  • Hub(F) Formula 15x110mm thru-axle / (R) DT Swiss, 12x148mm thru-axle
  • Tires(F) Maxxis Minion DHF, 29x2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready

Cockpit

  • StemCannondale 2, 6061 Alloy, 35mm, 0°
  • HeadsetAcros integrated sealed bearing, tapered
  • HandlebarHollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
  • GripsFabric FunGuy
  • DisplayBosch Kiox 300 w/ LED remote

Motor & Battery

  • Battery Capacity750 Wh
  • ChargerBosch 4A
  • Battery ManufacturerBosch
  • Motor ManufacturerBosch
  • Maximum Motor Supportup to 25 kph
  • BatteryBosch PowerTube, 750Wh
  • MotorBosch Performance Line CX 250W
  • Motor Positionmid-engine

Groupset

  • GearingShimano XTR
  • CrankFSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
  • Number Of Gears12
  • PedalsNot included
  • ShiftersShimano XT, 12-speed
  • CassetteShimano XT, 10-51, 12-speed
  • Rear DerailleurShimano XTR
  • Chain / BeltShimano XT, 12-speed

Saddle

  • SaddleFabric Scoop Shallow Elite, cro-mo rails
  • Seat PostCannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL)

Suspension

  • Fork typesuspension fork
  • Front suspension150mm | RockShox Lyrik Select|E-Bike|DEBONAIR|160mm||FS-LYRK-SEL-C2
  • ShockRockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound
  • Fork ManufacturerRockShox
  • ForkRockShox Lyrik Select+, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset
  • Rear suspension150mm | Moterra DLX MY21 - RockShoxDeluxe

Note on Product Images, Product Description and Specifications

Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components.

Images used on the product pages may partly be sample images and may deviate from the actual configuration. The specified specifications are solely decisive for the scope of delivery and the specific product design.

The specified model year corresponds to the model series defined by the manufacturer and not necessarily to the year of manufacture. Since some models are produced unchanged over several years, the actual year of manufacture may vary. Regardless of this, you will receive a current product in accordance with the specified specifications.

Product descriptions may be partly automatically generated. Despite careful checking, errors cannot be completely ruled out. The product description is therefore not binding; in this case, too, only the specifications are decisive.

Subject to alterations and errors.
