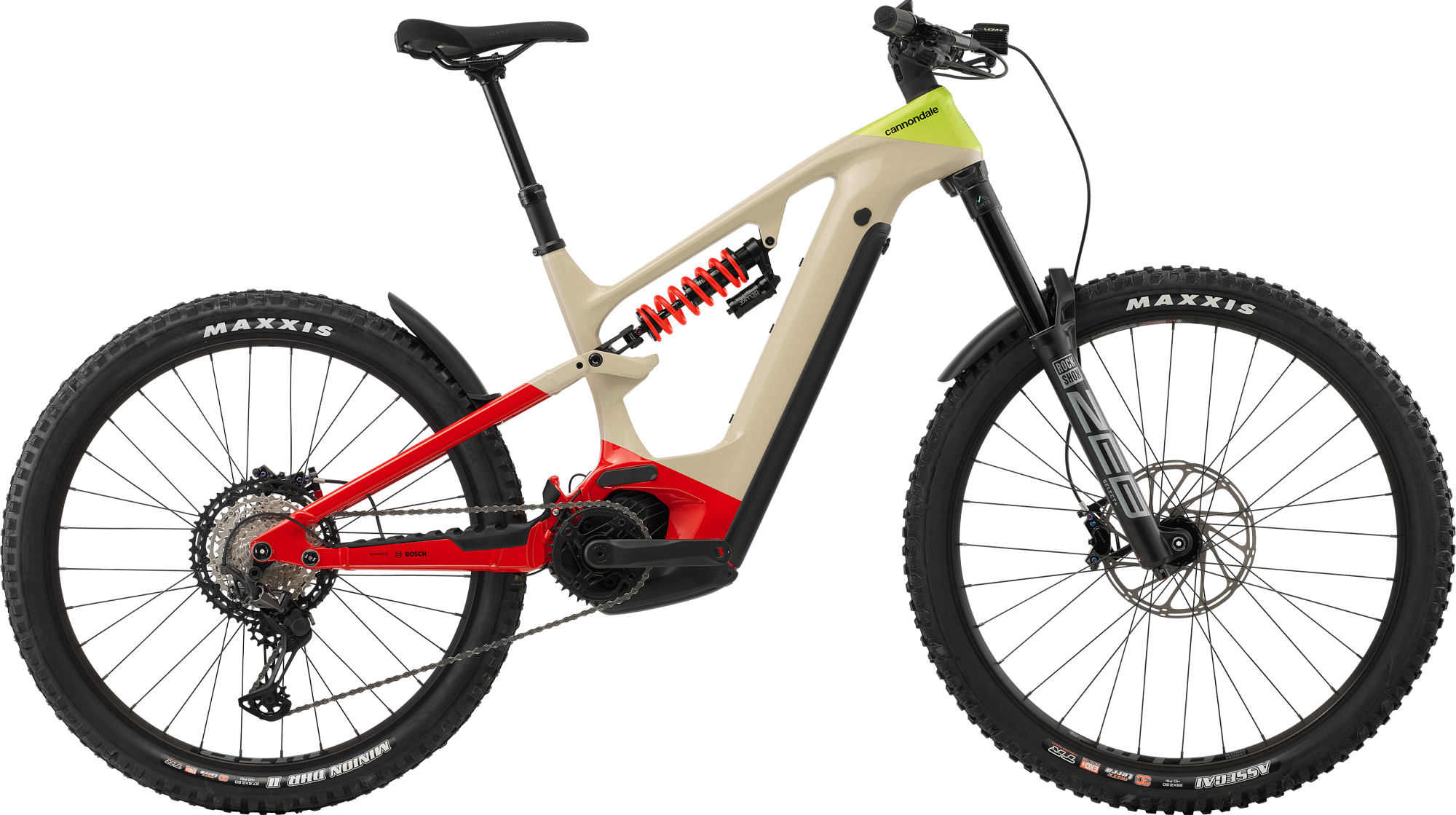

CannondaleMoterra Neo LT Carbon 1

Loading..

Questions and Answers

Carbon
750
Bosch
Shimano Deore XT
29" / 27.5"
Diamond
Disc Brakes
Breaking Boundaries
With the new Bosch Performance Line CX & 750Wh battery, getting there was the easy part - now it's time for the fun With 170mm/165mm of travel, piggy back shock and burly build, it's ready to give as much as you are.Highlights
Proportional Response Tuned carbon frame, 165mm travel / RockShox Zeb Select+ fork, 170mm travel• Bosch SmartSystem - 750wh battery & Performance CX motor• ...Read more

General

  • FrameMoterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 165mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake

    • Brakes

  • BrakeSRAM Code RSC hydraulic disc, 4-piston, CenterLine 220/200mm rotors
  • Rear BrakeSRAM Code RSC hydraulic disc, 4-piston, CenterLine 220/200mm rotors
  • Brake LeverSRAM Code RSC hydraulic disc
  • Front BrakeSRAM Code RSC hydraulic disc, 4-piston, CenterLine 220/200mm rotors

    • Wheels & Tires

  • Hub(F) Formula 15x110mm thru-axle / (R) DT Swiss, 12x148mm thru-axle
  • Tires(F) Maxxis Assegai, 29x2.6", 3C, EXO+, tubeless ready, (R) Maxxis DHR II, 27.5x2.6", 3C, EXO+, tubeless ready
  • SpokesDT Swiss Champion
  • WheelsWTB KOM Trail i30 TCS, 32h, tubeless ready
  • Tire Size2.6
  • Wheel Size29
  • Front Tire Size2.6

    • Cockpit

  • StemCannondale 2, 6061 Alloy, 35mm, 0°
  • GripsFabric FunGuy
  • DisplayBosch Kiox 300 w/ LED remote
  • HeadsetAcros integrated sealed bearing, tapered
  • HandlebarHollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm

    • Motor & Battery

  • MotorBosch Performance Line CX 250W
  • BatteryBosch PowerTube, 750Wh
  • ChargerBosch 4A

    • Groupset

  • Chain / BeltShimano XT, 12-speed
  • CrankFSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
  • PedalsNot included
  • CassetteShimano XT, 10-51, 12-speed
  • ShiftersShimano XT, 12-speed
  • Number Of Gears12
  • Rear DerailleurShimano XT
  • GearingShimano Deore XT

    • Saddle

  • SaddleFabric Magic Elite Saddle, cro-mo rails
  • Seat PostCannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL)

    • Suspension

  • ForkRockShox Zeb Select +, Charger RC, 170mm, DebonAir, 15x110mm, 44mm offset
  • ShockRockShox Deluxe Select+, Coil, 2-Pos mode adjust, adjustable rebound
  • Rear suspension165mm
  • Front suspension170mm | RockShox Zeb Select+|170mm|DEBONAIR|E-bike
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. Errors and omissions excepted.
