CannondaleMoterra S4

Loading..

Unfortunately sold out.

This product variant is currently sold out. If available, you can choose a different color or size, or go back to the previous page.

Questions and Answers

Aluminum
504
Shimano
Shimano Cues
29"
Diamond
Disc Brakes

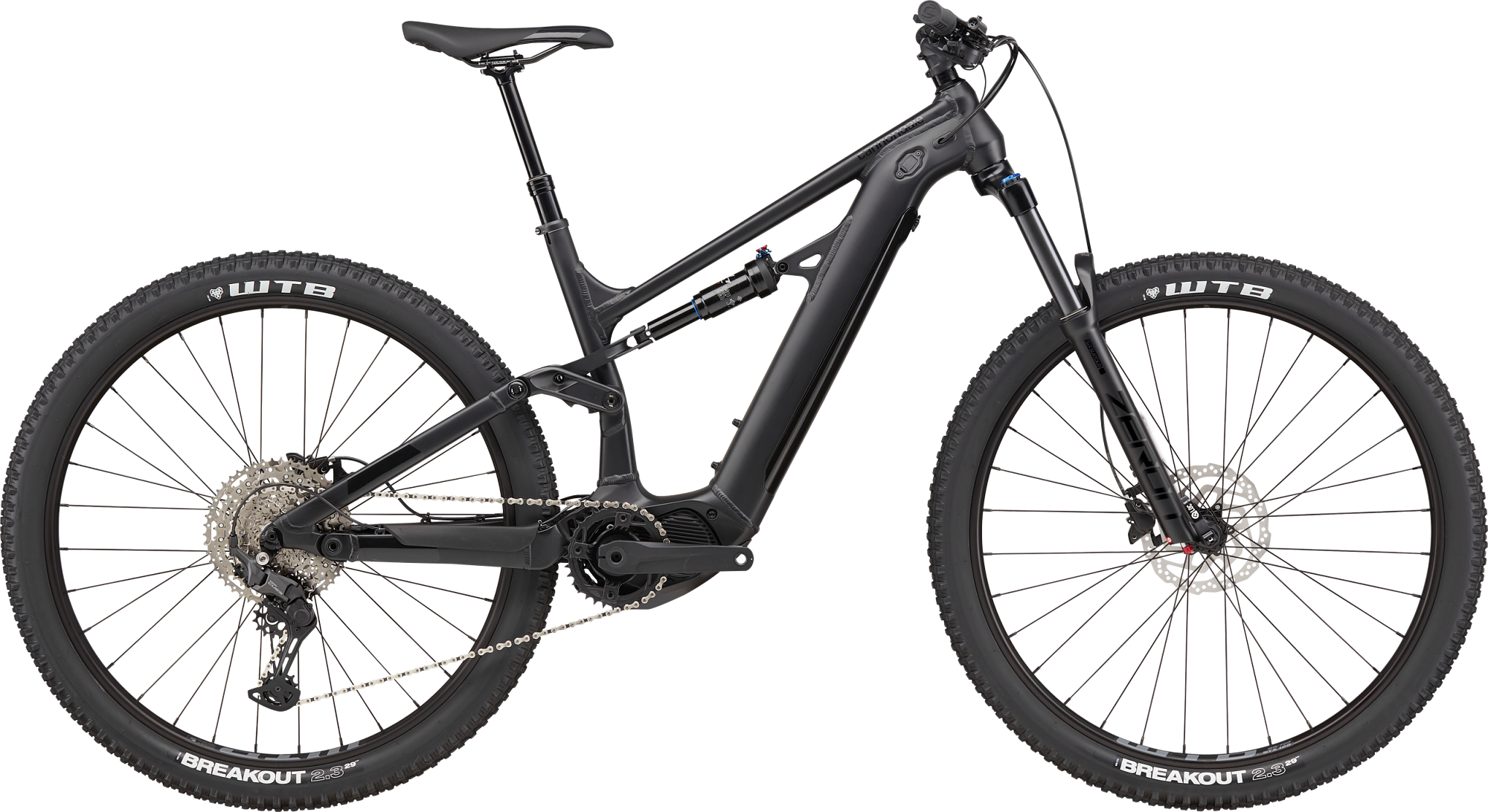

Introducing the Cannondale Moterra S4 2023, the electric mountain bike that effortlessly merges capability and comfort for an exhilarating ride on rugged terrain. Designed for both beginners and experienced riders looking to take their skills to the next level, this bike is built to allow you to explore trails with confidence and ease.
At the heart of the Moterra S4 is a SmartForm C2 Alloy frame ...Read more

Brakes

  • BrakeShimano MT200 hydraulic disc, 180/180mm RT10 rotors
  • Front BrakeShimano MT200 hydraulic disc, 180/180mm RT10 rotors
  • Rear BrakeShimano MT200 hydraulic disc, 180/180mm RT10 rotors
  • Brake LeverShimano MT200 hydraulic disc

Cockpit

  • StemCannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 6°
  • HeadsetIntegrated, 1-1/8 to 1.5", sealed bearings
  • HandlebarCannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
  • GripsCannondale Locking Grips
  • DisplayShimano SC-EN500

General

  • Frame materialAlloy
  • Frame150mm travel, SmartForm C2 Alloy, Cannondale Tuned Suspension, removable downtube battery, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube

Groupset

  • CassetteShimano CUES LG400, 11-50, 11-speed
  • CrankFSA E-Bike for Shimano, 165mm, 34T
  • Number Of Gears11.0
  • PedalsNot included
  • ShiftersShimano CUES U6000, trigger style, 11-speed
  • Rear DerailleurShimano CUES U6000, 11-speed
  • Chain / BeltShimano LG500 Linkglide, 11-speed

Motor & Battery

  • Battery Capacity504 Wh
  • ChargerShimano Battery Charger 2A
  • Motor ManufacturerShimano
  • BatteryShimano BT-EN8035, 504Wh
  • MotorShimano EP6

Wheels & Tires

  • Front Tire Size2.3
  • Hub(F) Shimano TC500, 15x110mm thru-axle, centerlock / (R) Shimano TC500, 12x148mm thru-axle, centerlock
  • Tire Size2.3
  • SpokesStainless Steel, 14g
  • WheelsWTB STX i25 TCS, 32h
  • TiresWTB Breakout Comp, 29x2.3", DNA compound

Saddle

  • SaddleCannondale Stage 3
  • Seat PostTranzX dropper, internal routing, 31.6, 120mm (S), 130mm (M-XL)

Suspension

  • Fork typeSuspension Fork
  • Front suspension140mm
  • ShockX-Fusion O2 Pro Air, adjustable rebound, lock-out
  • Fork ManufacturerSR Suntour
  • ForkSR Suntour Zeron 36 Boost, 140mm, Air, rebound adjust,tapered steerer, 44 mm offset
  • Rear suspension150mm

Note on Product Images, Product Description and Specifications

Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components.

Images used on the product pages may partly be sample images and may deviate from the actual configuration. The specified specifications are solely decisive for the scope of delivery and the specific product design.

The specified model year corresponds to the model series defined by the manufacturer and not necessarily to the year of manufacture. Since some models are produced unchanged over several years, the actual year of manufacture may vary. Regardless of this, you will receive a current product in accordance with the specified specifications.

Product descriptions may be partly automatically generated. Despite careful checking, errors cannot be completely ruled out. The product description is therefore not binding; in this case, too, only the specifications are decisive.

Subject to alterations and errors.
