Questions and Answers

Aluminum
SRAM SX Eagle
29"
Diamond
Disc Brakes

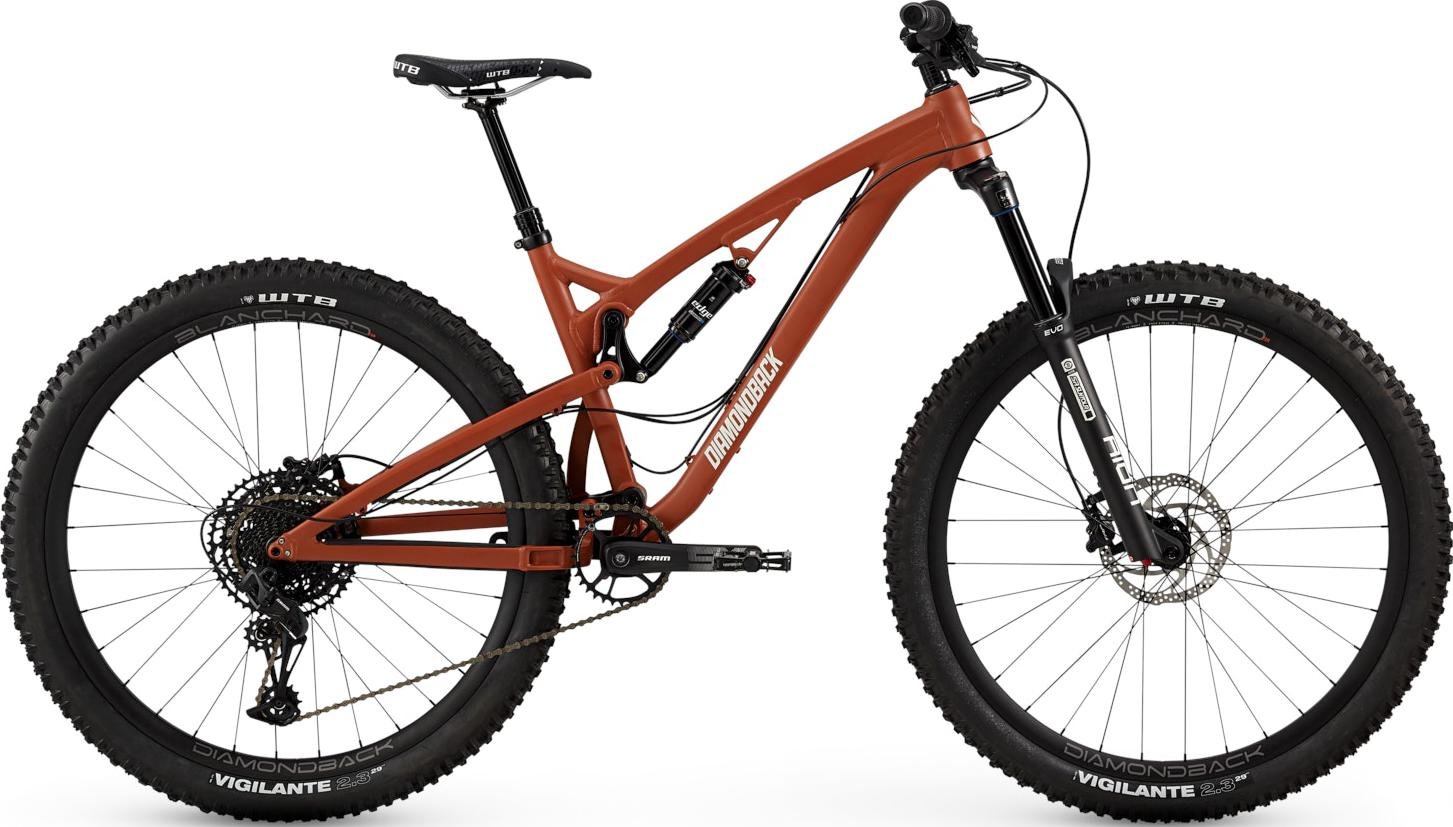

The Diamondback Release 29 1 is designed to take your mountain biking experience to exhilarating new heights. Built with a robust aluminum frame, this 29-inch bike is ideal for both seasoned riders and those looking to elevate their skills on challenging terrain. With its thoughtful geometry and the playful attitude characteristic of Diamondback’s Level Link series, the Release 29 1 enables riders ...Read more

Accessories

  • ExtrasTool Kit, DB Shock Pump, DB Mud Guard, Spare RD Hanger

Brakes

  • BrakeTRP Slate X2, w/180mm Front / 180mm Rear Rotors
  • Brake LeverTRP Slate

Cockpit

  • StemDB35 Aluminum 35mm Reach, 35mm Bar Bore
  • HeadsetFSA No. 57 Sealed Cartridge
  • HandlebarDB35 Aluminum 760mm Wide, 15mm Rise, 35mm Bar Bore
  • GripsDB Lock-On Grip

General

  • FrameRelease 29, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube

Groupset

  • GearingSRAM SX Eagle
  • CranksetSRAM SX w/Steel 32T Direct Mount
  • PedalsDB Aluminum Platform w/Replaceable Pins
  • ShiftersSRAM SX Eagle, 12 Speed
  • Bottom BracketSRAM Powerspline, 118/73
  • Rear DerailleurSRAM SX Eagle, 12 Speed
  • Chain / BeltSRAM SX Eagle, 12 Speed

Wheels & Tires

  • Spokes14g Stainless Steel
  • Rear Hub32h Aluminum Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, Cassette
  • TiresWTB Vigilante 29x2.3", Wire Bead
  • WheelsDiamondback Blanchard 28R, Tubeless Compatible, 32h
  • Front Hub32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearing

Saddle

  • SaddleWTB Koda Comp
  • Seat PostTranzX YSP18JL, Internal Dropper, 31.6mm w/1x Remote

Suspension

  • Fork typesuspension fork
  • Front suspension140mm
  • ShockSuntour Edge R, 200x57mm, Rebound Adjust, 22.2mm Eyelet Width
  • Fork ManufacturerSR Suntour
  • ForkSR Suntour Aion 29", 140mm Travel, Air Spring w/Rebound Adjust, 35mm Stanction, 1.5" Aluminum Taper Steerer, 110x15mm Thru-axle

Note on Product Images, Product Description and Specifications

Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components.

Images used on the product pages may partly be sample images and may deviate from the actual configuration. The specified specifications are solely decisive for the scope of delivery and the specific product design.

The specified model year corresponds to the model series defined by the manufacturer and not necessarily to the year of manufacture. Since some models are produced unchanged over several years, the actual year of manufacture may vary. Regardless of this, you will receive a current product in accordance with the specified specifications.

Product descriptions may be partly automatically generated. Despite careful checking, errors cannot be completely ruled out. The product description is therefore not binding; in this case, too, only the specifications are decisive.

Subject to alterations and errors.

Diamondback has been shaping the cycling world since the late 1970s, starting with BMX bikes that fueled adrenaline-filled adventures. Today, their philosophy remains simple: create innovative, reliable bikes that empower riders of all levels to explore and push their limits. Whether you're into mountain trails, road racing, or casual cruising, Diamondback’s diverse range has something for everyone. From rugged mountain bikes like the Release series to sleek road bikes and even hybrid models, they’ve got you covered. Riders rave about the balance of performance and value, making it a favorite for both beginners and seasoned pros. Are you a thrill-seeker? A weekend warrior? Or just looking for a dependable bike for your commute? Diamondback designs bikes for adventurers like you - offering quality, style, and functionality that won't break the bank. Hop on a Diamondback and experience the ride for yourself!
