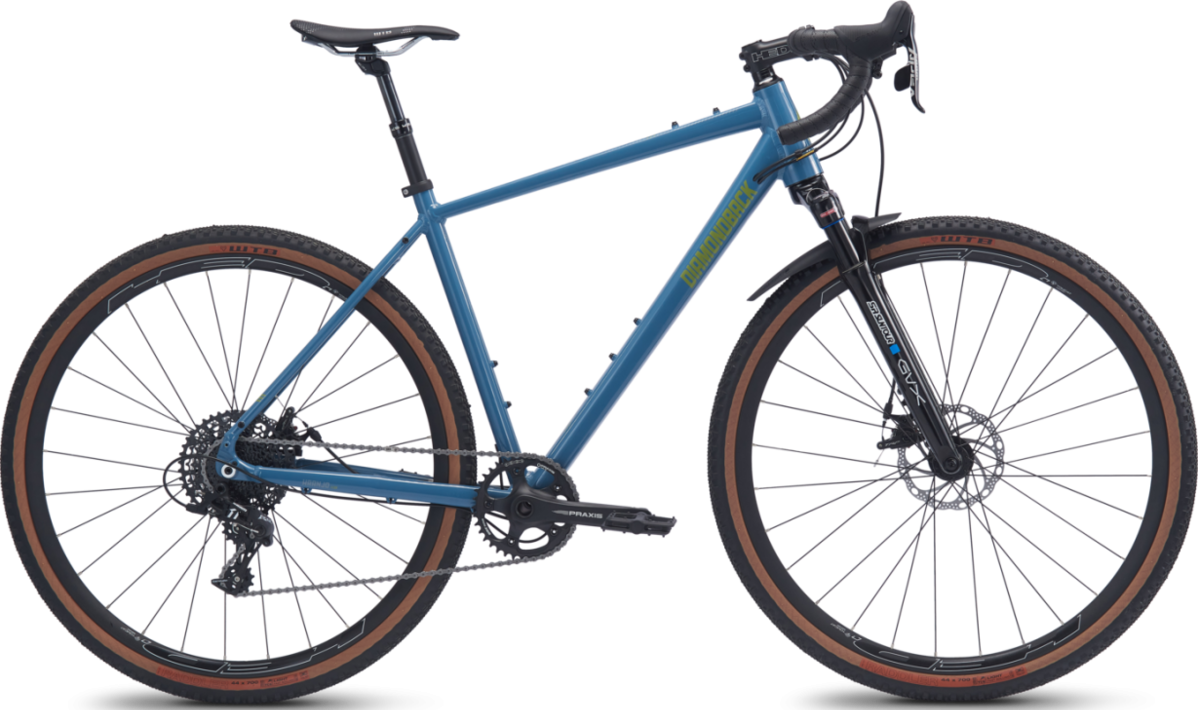

DiamondbackHaanjo 4 EXP
Unfortunately sold out.
This product variant is currently sold out. If available, you can choose a different color or size, or go back to the previous page.
Questions and Answers
Brakes
- BrakeTRP Spyre C Flat Mount Mechanical Disc, w/160mm Front / 160mm Rear Rotors
- Brake LeverSRAM Apex 1
Cockpit
- StemHED, 6061 Aluminum 3D Forged, +/-7° Rise, 31.8 Bar Bore
- HeadsetFSA No.42, Sealed Cartridge
- HandlebarHED, 7050 Aluminum 12 Degree Flare, 31.8mm Bar Bore
- GripsDiamondback Endurance Gel Tape
General
- Frame materialAlloy
- FrameDB Alloy Gravel Frame, Endurance Geometry, Fully Butted 6061-T6 Aluminum Formed Top Tube, Tapered Headtube, Flat Mount Disc , 142x12mm Thru-axle, Top Tube Bag Mounts, w/Replaceable Hanger
Groupset
- CassetteSRAM PG-1130 Cassette 11-42T, 11 Speed
- GearingSRAM Apex
- CranksetPraxis Alba M24 38T
- PedalsDB Resin Gravel Platform
- ShiftersSRAM Apex 1, 11 Speed, Double Tap 1x11 Speed, w/Left Dropper Remote Lever
- Bottom BracketPraxis M24 BSA
- Rear DerailleurSRAM Apex 1, 1x11 Speed
- Chain / BeltSRAM PC-1110, 11 Speed
Wheels & Tires
- Hub28h Aluminum Sealed Cartridge, Center Lock, 12mm Thru-axle|28h Aluminum Sealed Cartridge, Center Lock, 142x12mm Thru-axle, Cassette
- TiresWTB Raddler TCS Light, Dual DNA Compound, Lightweight Tubeless Casing, 700x44c
- Spokes14 gauge Stainless Steel
- WheelsHED Tomcat Disc, 28h, 25mm Internal Width, Taped for Tubeless
Saddle
- SaddleWTB Gravelier, Cromoly Rail, 142x250
- Seat PostKind Shock eTENi 27.2 Dropper, 65mm (XS,S,MD) 100mm (L,XL) travel
Suspension
- Fork typeSuspension Fork
- Front suspension60mm
- Fork ManufacturerSR Suntour
- ForkSR Suntour GVX32, 60mm Travel Suspension Fork, 12mm Thru Axle Drop Outs
Note on Product Images, Product Description and Specifications
Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components.
Images used on the product pages may partly be sample images and may deviate from the actual configuration. The specified specifications are solely decisive for the scope of delivery and the specific product design.
The specified model year corresponds to the model series defined by the manufacturer and not necessarily to the year of manufacture. Since some models are produced unchanged over several years, the actual year of manufacture may vary. Regardless of this, you will receive a current product in accordance with the specified specifications.
Product descriptions may be partly automatically generated. Despite careful checking, errors cannot be completely ruled out. The product description is therefore not binding; in this case, too, only the specifications are decisive.
Subject to alterations and errors.
