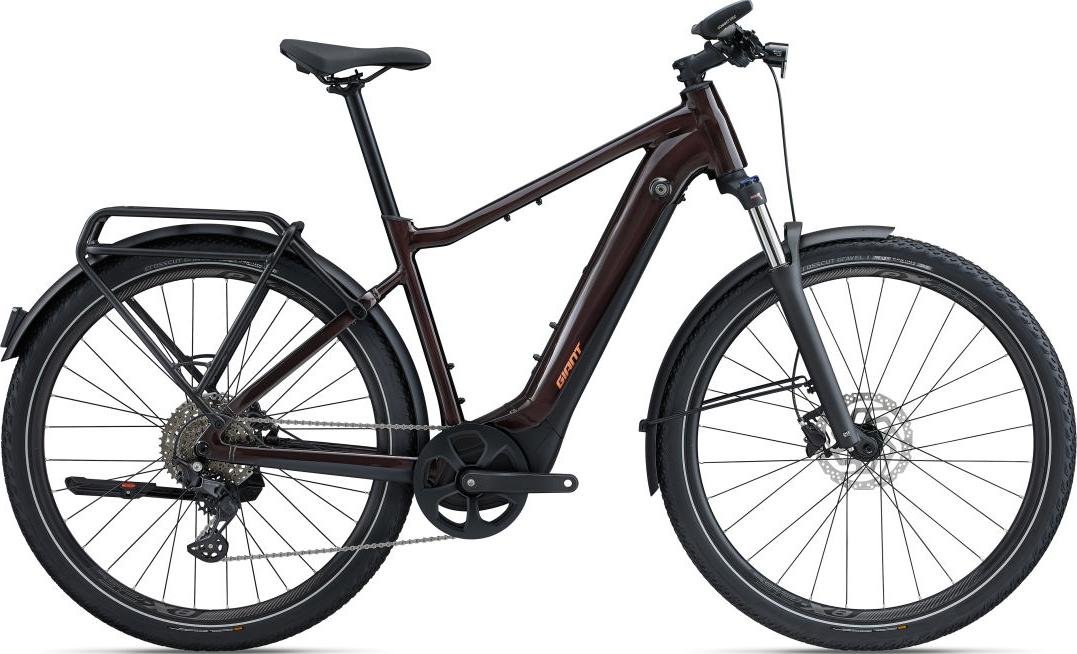

GiantExplore E+ 1 GTS

Loading..

Questions and Answers

Aluminum
625
Yamaha
External Gearing
28" / 700c
Diamond
Disc Brakes
Introducing the Giant Explore E+ 1 GTS 2023, a versatile e-bike designed for riders who appreciate a reliable companion for both urban commuting and adventurous weekend rides. This bike is engineered to take you further with less effort, making it a great choice for both beginners looking to dip their toes into the e-bike world and experienced riders seeking a reliable machine to tackle diverse terrains.

At ...Read more

General

  • FrameALUXX aluminum, Overdrive 1.8" - 1.5" head tube, integrated battery, integrated KSA40 kickstand mount

    • Brakes

  • BrakeShimano BR-MT200, hydraulic disc, 180mm
  • Brake LeverShimano BL-MT201

    • Wheels & Tires

  • HubGiant eTracker, [F] 110x15 [R] 148x12
  • TiresCrosscut Gravel 2, 700x57c, Wire Bead, Tubeless Ready
  • SpokesStainless steel, e-bike optimized
  • WheelseX25, Tubeless Ready, 622x25 Aluminium

    • Cockpit

  • StemGiant Contact (S/M: 80mm L/XL/XXL 100mm)
  • DisplayRideControl Dash, full color lcd screen
  • HandlebarGiant Connect Riser 31.8x690mm
  • ControllerGiant RideControl Dash, Smart Assist automatic mode, 5 support levels, USB-C (10W)
  • GripsGant Connect Ergo Max w/bar-end

    • Motor & Battery

  • MotorSyncDrive Sport 2, 75Nm, powered by Yamaha
  • Torque75 Nm
  • BatteryEnergyPak Smart 625, EnergyPak Plus 250 range extender compatible
  • Motor ManufacturerYamaha
  • Maximum Motor Supportup to 25 kph
  • Battery Capacity625 Wh
  • Battery ManufacturerGiant
  • ChargerGiant EnergyPak 4A smart charger compact, 60% charge in 2:30h

    • Accessories

  • LockABUS Xplus battery lock
  • RackMIK rack. System bag & basket compatible
  • LightRecon E HL50 StVZO [F]AXA NYX 6-12V E-bike tail light with brake sensor [R]
  • ExtrasKSA40 direct mount kickstand

    • Groupset

  • Chain / BeltShimano LinkGlide, CN-LG500
  • PedalsAluminum Platform
  • CassetteShimano LinkGlide, CS-LG400-10, 11-43T, 10-speed
  • CranksetForged Alloy Direct spider/chainguard 46T Steel narrow/wide chainring
  • ShiftersShimano Deore, LinkGlide
  • Rear DerailleurShimano Deore LinkGlide, 10-speed, Shadow+

    • Saddle

  • SaddleSelle Royal Vivo Ergo Moderate Unisex
  • Seat PostGiant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium

    • Suspension

  • ForkSR Suntour XCM34 LO, 100mm travel, Hydraulic Lockout, 15x110mm AH Axle
  • Fork typesuspension fork
  • Front suspension100mm
  • Fork ManufacturerSR Suntour
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. Errors and omissions excepted.
