GiantReign E+ 1

Loading..

Questions and Answers

Aluminum
800
Yamaha
Shimano Deore XT Shadow
29" / 27.5"
Diamond
Disc Brakes

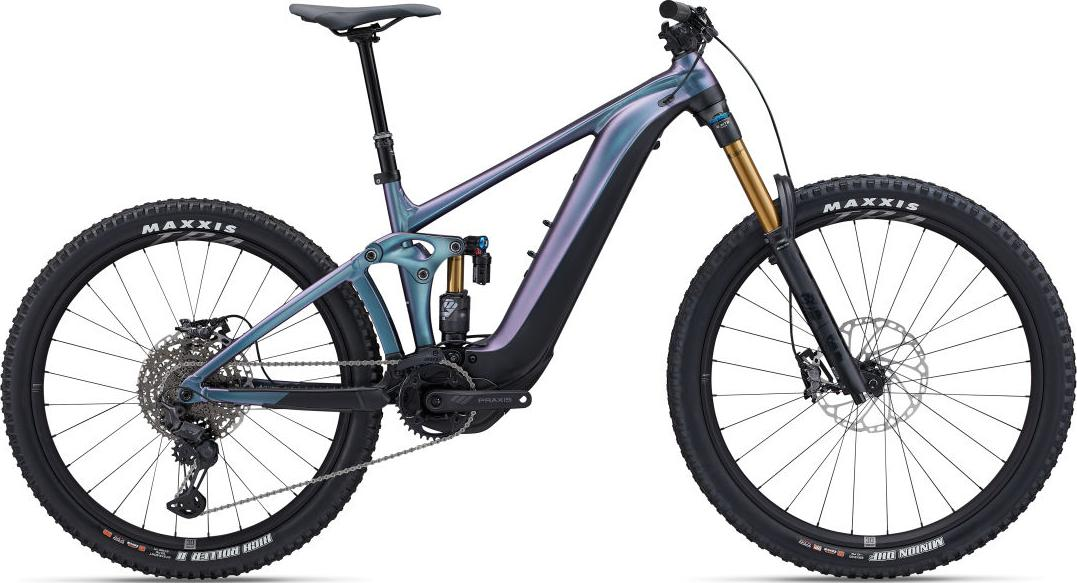

Get ready to hit the trails with the Giant Reign E+ 1 2024, an electric mountain bike designed to elevate your riding experience. Constructed from ALUXX SL-grade aluminum, this bike is engineered for both durability and performance, featuring an Advanced Forged Composite Upper Rocker that enhances stiffness, while its 160mm Maestro suspension system ensures you glide over rough terrains effortlessly. ...Read more

General

  • FrameALUXX SL-grade aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, 'Boost' 148x12mm, Universal Derailleur Hanger
  • Weight*The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish
  • Frame materialAlloy

    • Brakes

  • BrakeShimano XT, BR-8120, 4-piston, hydraulic disc, RT66, 220mm
  • Brake LeverShimano XT, I-spec EV

    • Wheels & Tires

  • HubGiant TRA, E-Drive 260Nm 6-Pawl Driver, 72T engagement, MicroSpline body, 110 x 15 [F], 148 x 12 [R] Thru-axle
  • TiresMaxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra[F]Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R]
  • SpokesSapim E-Lite [R] Race [F], e-bike optimized
  • WheelsGiant TRA, Hookless Clincher, 30mm inner width, Hollow Side-Wall Design for improved strength and flat protection

    • Cockpit

  • StemGiant Contact SL 35
  • GripsGiant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
  • DisplayGiant RideControl GO, frame integrated LED consoleOptional wireless ANT+ display
  • HandlebarGiant Contact Trail, 35x800mm
  • ControllerGiant RideControl Ergo3, grip integrated remote

    • Motor & Battery

  • MotorGiant SyncDrive Pro2 85Nm,PedalPlus 6-Sensor technology
  • Torque85nm
  • BatteryGiant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral productionGiant EnergyPak Plus 250 range extender compatible (exculde S size)
  • Battery Capacity800 Wh
  • Motor ManufacturerYamaha

    • Accessories

  • LockTorx 25 Battery Lock with built-in Torque limiter
  • ExtrasTubeless kit (liquid, valves, levers, manual, tool)

    • Groupset

  • Chain / BeltShimano LinkGlide, CN-LG500
  • PedalsFlatpedal
  • CassetteShimano Cues LinkGlide, CS-LG400-11, 11-50T, 11-speed
  • CranksetPraxis E- Crankset 36T steel chainring 160mm [S-M], 165mm [L-XL]
  • ShiftersShimano XT LinkGllide
  • Rear DerailleurShimano XT LinkGlide 11-speed, Shadow+
  • Front DerailleurMRP HD2 co-moulded chain guide
  • GearingShimano Deore XT Shadow

    • Saddle

  • SaddleRomero
  • Seat PostTranz-X Rad+ 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)

    • Suspension

  • ForkFox 38 Float Factory GRIP 2 Air 170 matt black 1111-38FLOA-0024
  • ShockFox X2 Factory, EVOL Large Volume sleeve, 205x62.5mm Trunnion mount, custom tuned, recommended sag: 30%
  • Fork typeSuspension Fork
  • Front suspension170mm
  • Fork ManufacturerFox
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. The specified model year corresponds to the model series defined by the manufacturer and not necessarily the year of manufacture. As some models are produced unchanged over several years, the year of manufacture may vary. Irrespective of this, you will receive a current product in accordance with the stated specifications. Errors and omissions are excepted.
