GiantReign E+ 3 20MPH

Loading..

Unfortunately sold out.

This product variant is currently sold out. If available, you can choose a different color or size, or go back to the previous page.

Questions and Answers

Aluminum
800
Yamaha
Shimano Deore Shadow
29" / 27.5"
Diamond
Disc Brakes

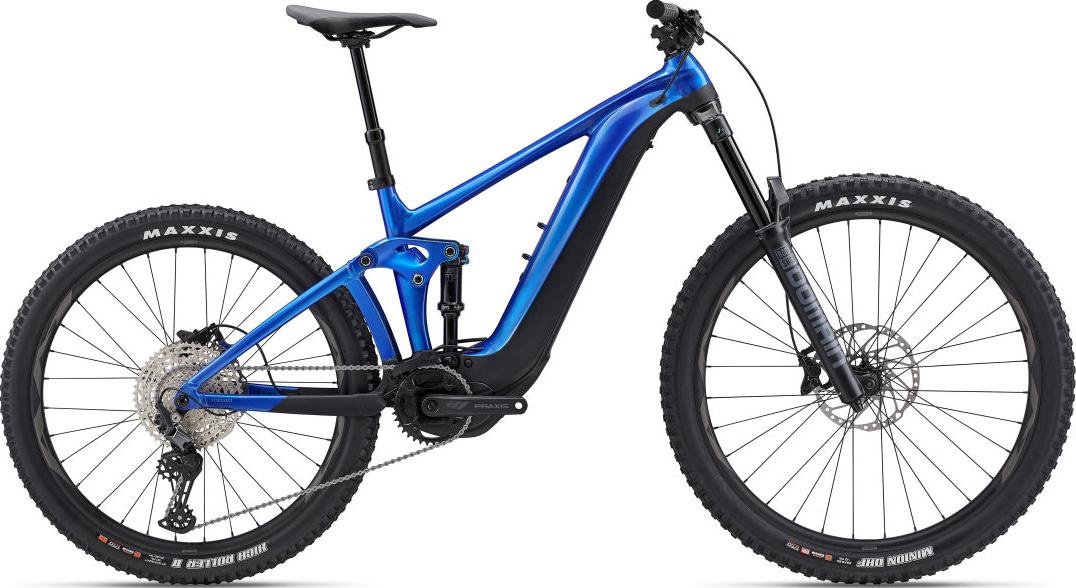

Introducing the Giant Reign E+ 3, a powerful electric mountain bike built for both adventurers and thrill-seekers alike. With a sturdy ALUXX SL-grade aluminum frame and an Advanced Forged Composite Upper Rocker, this bike strikes the perfect balance between durability and lightweight performance, ensuring you can tackle any terrain with ease.
The heart of this ride is the 160mm Maestro suspension ...Read more

Accessories

  • LockTorx 25 Battery Lock with built-in Torque limiter
  • ExtrasTubeless kit (liquid, valves, levers, manual, tool)

Brakes

  • BrakeShimano Deore BR-M420, 4-piston, hydraulic disc, 203mm
  • Brake LeverShimano Deore, I-spec EV

Cockpit

  • StemGiant Contact SL 35
  • HandlebarGiant Contact Trail, 35x800mm
  • GripsGiant Tactal Pro-E, single lock-on
  • ControllerRideControl GO integrated in TT, RideControl Ergo 3
  • DisplayWireless display compatible

General

  • FrameALUXX SL-grade aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, 'Boost' 148x12mm, Universal Derailleur Hanger

Groupset

  • Front DerailleurMRP 1X HD2 custom co-molded chain guide
  • CassetteShimano Deore CS-M6100-12, 10-51T, 12-speed
  • GearingShimano Deore Shadow
  • CranksetPraxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S/M:160, L/XL:165)
  • PedalsFlat pedal
  • ShiftersShimano Deore
  • Rear DerailleurShimano Deore 12-speed
  • Chain / BeltKMC e.12 Turbo, EcoProteq, e-bike optimized

Motor & Battery

  • Battery ManufacturerGiant
  • Battery Capacity800 Wh
  • Torque85 Nm
  • Motor ManufacturerYamaha
  • Maximum Motor Supportup to 25 kph
  • BatteryEnergyPak Smart 800,EnergyPak Plus range extender compatible (exclude S Size)
  • MotorSyncDrive Pro, 85Nm, powered by Yamaha

Wheels & Tires

  • SpokesSapim E-Lite [R] Race [F], e-bike optimized
  • WheelsGiant AM 29" [F] 27.5"[R], Tubeless ready, 30mm inner width
  • HubShimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
  • TiresMaxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra[F]Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R]

Saddle

  • SaddleGiant Romero Trail
  • Seat PostGiant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170)

Suspension

  • Fork typesuspension fork
  • Front suspension170mm
  • ShockFox Float DPS Performance, EVOL Large Volume sleeve, 2-position lever, 205x62.5mm Trunnion mount, custom tuned
  • Fork ManufacturerRockShox
  • ForkRockShox Domain R 29er, 170mm travel, 15x110 Boost, Maxle Stealth, E-bike Approved

Note on Product Images, Product Description and Specifications

Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components.

Images used on the product pages may partly be sample images and may deviate from the actual configuration. The specified specifications are solely decisive for the scope of delivery and the specific product design.

The specified model year corresponds to the model series defined by the manufacturer and not necessarily to the year of manufacture. Since some models are produced unchanged over several years, the actual year of manufacture may vary. Regardless of this, you will receive a current product in accordance with the specified specifications.

Product descriptions may be partly automatically generated. Despite careful checking, errors cannot be completely ruled out. The product description is therefore not binding; in this case, too, only the specifications are decisive.

Subject to alterations and errors.
