GiantReign SX

Loading..

Questions and Answers

Aluminum
Shimano Deore Shadow
29" / 27.5"
Diamond
Disc Brakes

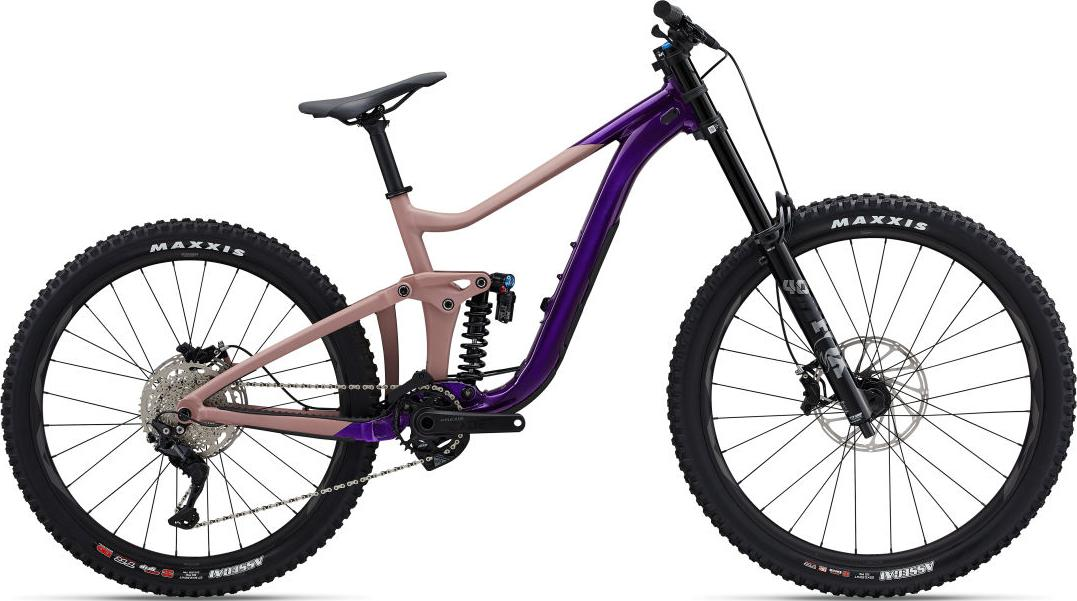

Introducing the Giant Reign SX 2023, an exceptional mountain bike designed for experienced riders who are serious about tackling aggressive trails and demanding downhill terrain. This bike combines the durability of ALUXX SL-Grade Aluminum with a robust design that ensures both performance and stability. The 165mm Maestro suspension system is cheekily engineered for serious trail action, giving you ...Read more

Accessories

  • Extrastubeless prepared, 2.5" max tire size, 36t max chainring size, MRP AMG CS chain guide

Brakes

  • BrakeSRAM Code R, hydraulic, CenterLine rotors [F]220mm, [R]200mm
  • Brake LeverSRAM Code R

Cockpit

  • StemTruVativ Descendant Direct Mount 35, 50mm
  • GripsGiant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
  • HandlebarGiant Contact SL TR35, 800x35mm, 20mm rise

General

  • FrameALUXX SL-Grade Aluminum front and rear triangles, 165mm Maestro suspension, flip chip, 12x148mm thru-axle, 27.5-inch rear wheel compatible, flip chip - Maestro 3, integrated downtube storage

Groupset

  • Chain / BeltKMC X10
  • CassetteShimano Deore M4100, 11x46
  • CranksetPraxis Cadet HD M24, 32t, 165mm, 55mm chainline
  • ShiftersShimano Deore SL-M4100, 1x10
  • Bottom BracketPraxis, press fit
  • Rear DerailleurShimano Deore RD-M5120
  • GearingShimano Deore Shadow

Wheels & Tires

  • HubGiant Boost, sealed
  • Tires[F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 27.5x2.5 WT, 3C MaxxTerra, DD, TR tubeless
  • SpokesSapim
  • WheelsGiant AM, alloy

Saddle

  • SaddleGiant Romero
  • Seat PostGiant Contact, 30.9mm, 400mm

Suspension

  • ForkFox 40 Performance, GRIP damper, 190mm, 20x110, custom tuned for Giant
  • ShockFox DHX2 Performance Elite, 205/65, custom tuned for Giant S:400#, M:400#, L:450#, XL:500#
  • Fork typesuspension fork
  • Front suspension190mm
  • Fork ManufacturerFox

Disclaimer

Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. The specified model year corresponds to the model series defined by the manufacturer and not necessarily the year of manufacture. As some models are produced unchanged over several years, the year of manufacture may vary. Irrespective of this, you will receive a current product in accordance with the stated specifications. Errors and omissions are excepted.
