GiantStance E+ 1 20MPH

Loading..

Questions and Answers

Aluminum
625
Yamaha
Shimano Deore
29"
Diamond
Disc Brakes

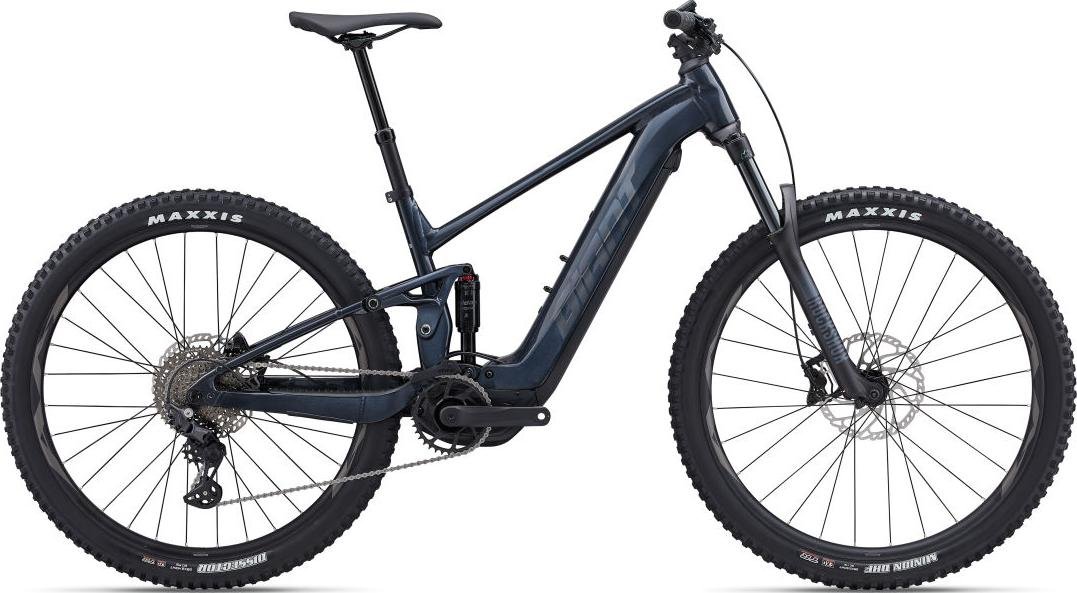

The Giant Stance E+ 1 20MPH 2023 is designed to elevate your off-road biking experience, combining performance and comfort in a package ready for adventure. This electric mountain bike features an ALUXX SL-grade aluminum frame, which not only adds to its durability but also keeps the bike lightweight. The FlexPoint suspension system with 125mm travel offers exceptional shock absorption, ensuring that ...Read more

Accessories

  • LockTorx 25 Battery Lock with built-in Torque limiter

    • Brakes

  • BrakeTektro HD-M750 Orion, 4-piston, hydraulic disc, 203mm
  • Brake LeverTektro HD-M750

    • Cockpit

  • StemGiant Contact
  • GripsGiant Tactal single lock-on
  • DisplayRideControl Dash, full color lcd screen
  • HandlebarGiant Connect TR Riser 31.8x780mm
  • ControllerRideControl Dash

    • General

  • FrameALUXX SL-grade aluminum, 125mm travel FlexPoint suspension system, 148x12 rear axle, Universal Derrailleur hanger, 184x44 shock, 1.5~1.8" headset
  • Weight*The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish

    • Groupset

  • Chain / BeltShimano, LinkGlide, CN-LG500
  • PedalsAluminum Platform
  • CassetteShimano LinkGlide, CS-LG400-10, 11-43T, 10-speed
  • CranksetFSA Comet E-Bike crank arm setFSA MegaTooth Direct-mount 1X steel 36T
  • ShiftersShimano Deore LinkGlide
  • Rear DerailleurShimano Deore LinkGlide, 10-speed
  • Front DerailleurMRP HD2 co-moulded chain guide
  • GearingShimano Deore

    • Motor & Battery

  • MotorSyncDrive Sport, 75Nm, powered by Yamaha
  • BatteryEnergyPak Smart 625, EnergyPak Plus 250Wh range extender compatible

    • Wheels & Tires

  • HubGiant eTracker Boost, [F] 110x15 [R] 148x12mm
  • TiresMaxxis Minion DHF 29X2.50" Foldable, TLR, EXO, 60TPI [F]Maxxis Dissector 29X2.40" WT Foldable, TLR, EXO, 60TPI [R]
  • SpokesStainless Steel
  • WheelsGiant AM 29", Tubeless ready, 30mm inner width

    • Saddle

  • SaddleGiant Sport
  • Seat PostGiant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170)

    • Suspension

  • ForkRockShox 35 Silver, 140mm, tapered steerer, 110x15 thru-axle
  • ShockSR Suntour Raidon R, 190x45mm, custom tuned
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. Errors and omissions excepted.
