GiantStance E+ 1 Pro 20MPH

Loading..

Questions and Answers

Aluminum
800
Yamaha
Shimano Deore
29"
Diamond
Disc Brakes

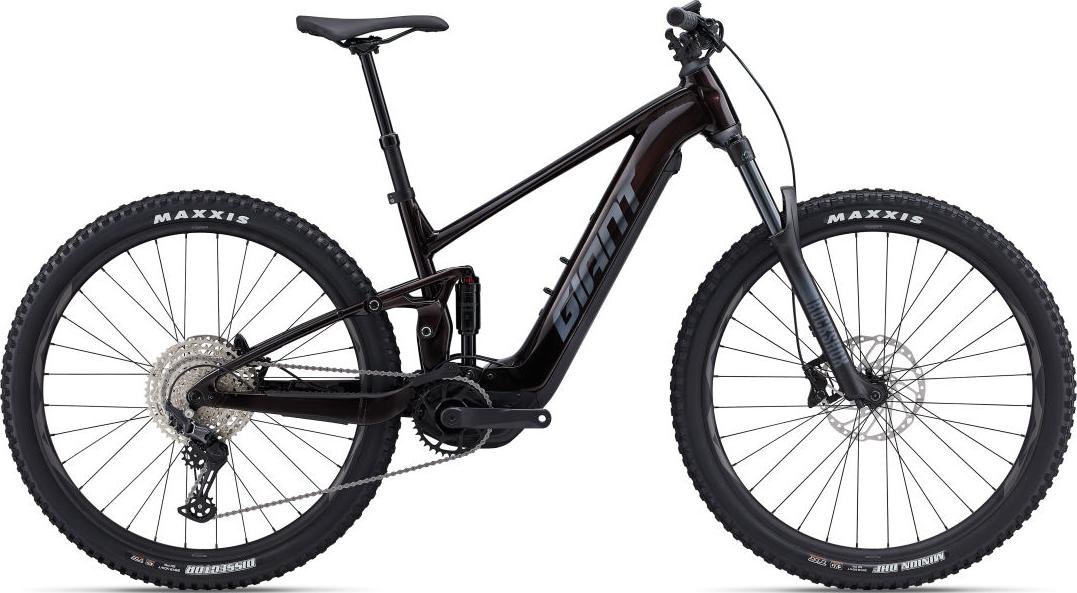

Introducing the Giant Stance E+ 1 Pro 20MPH 2023, an electric mountain bike designed for those who crave adventure on and off the beaten path. Whether you’re a seasoned rider or someone just diving into the world of mountain biking, this bike offers incredible features that make every ride enjoyable and accessible. With its ALUXX SL-grade aluminum frame and an impressive 125mm travel FlexPoint suspension ...Read more

Accessories

  • LockTorx 25 Battery Lock with built-in Torque limiter
  • ExtrasTubeless kit (liquid, valves, levers, manual, tool)

Brakes

  • BrakeTektro HD-M750 Orion, 4-piston, hydraulic disc, 203mm
  • Brake LeverTektro HD-M750

Cockpit

  • StemGiant Contact
  • GripsGiant Tactal single lock-on
  • DisplayRideControl Dash, full color lcd screen
  • HandlebarGiant Connect TR Riser 31.8x780mm
  • ControllerRideControl Dash

General

  • FrameALUXX SL-grade aluminum, 125mm travel FlexPoint suspension system, 148x12 rear axle, Universal Derrailleur hanger, 184x44 shock, 1.5~1.8" headset
  • Weight*The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish

Groupset

  • Chain / BeltKMC e.12 Turbo, EcoProteq, e-bike optimized
  • PedalsFlat pedal
  • CassetteShimano CS-M6100-12, 10-51T, 12-speed
  • CranksetFSA Comet E-Bike crank arm setFSA MegaTooth Direct-mount 1X steel 36T
  • ShiftersShimano Deore
  • Rear DerailleurShimano Deore 12-speed
  • GearingShimano Deore

Motor & Battery

  • MotorSyncDrive Pro, 85Nm, powered by Yamaha
  • BatteryEnergyPak Smart 800, EnergyPak Plus 250Wh range extender compatible

Wheels & Tires

  • HubShimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
  • TiresMaxxis Minion DHF 29X2.50" Foldable, TLR, EXO, 60TPI [F]Maxxis Dissector 29X2.40" Foldable, WT, TLR, EXO, 60TPI [R]
  • SpokesSapim E-Lite [R] Race [F], e-bike optimized
  • WheelsGiant AM 29", Tubeless ready, 30mm inner width

Saddle

  • SaddleGiant Sport
  • Seat PostGiant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170)

Suspension

  • ForkRockShox 35 Silver, 140mm, 1.8" tapered steerer, 110x15 Maxle Stealth
  • ShockSR Suntour Raidon R, 190x45mm, custom tuned

Disclaimer

Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. The specified model year corresponds to the model series defined by the manufacturer and not necessarily the year of manufacture. As some models are produced unchanged over several years, the year of manufacture may vary. Irrespective of this, you will receive a current product in accordance with the stated specifications. Errors and omissions are excepted.
