GiantTrance X E+ 2

Loading..

Questions and Answers

Aluminum
800
Yamaha
Shimano SLX Shadow
29"
Diamond
Disc Brakes

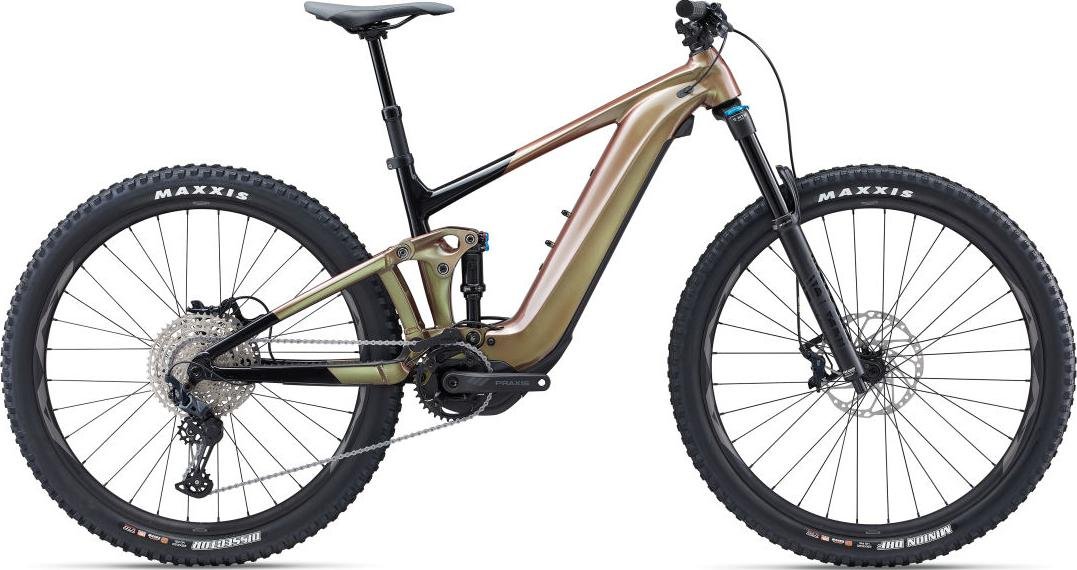

Get ready to elevate your trail riding experience with the Giant Trance X E+ 2 2023, an electric mountain bike that deftly combines power, control, and endurance. Built on a robust ALUXX SL-grade aluminum frame, this bike is not only lightweight but highly durable, making it perfect for tackling any terrain, whether you're cruising over rocky mountain paths or navigating through mud and loose gravel. ...Read more

Accessories

  • LockTorx 25 Battery Lock with built-in Torque limiter
  • ExtrasTubeless kit (liquid, valves, levers, manual, tool)

Brakes

  • BrakeShimano Deore, BR-M6120, 4-piston, hydraulic disc, 203mm
  • Brake LeverShimano Deore

Cockpit

  • StemGiant Contact SL 35
  • GripsGiant New trail grip Half-waffle/single lock-on
  • DisplayANT+ Wireless display compatible
  • HandlebarGiant Contact 35 Trail, 35x780mm
  • ControllerRideControl GO integrated in TT, RideControl Ergo 3

General

  • FrameALUXX SL-grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible

Groupset

  • Chain / BeltKMC e.12 Turbo, EcoProteq, e-bike optimized
  • PedalsFlat pedal
  • CassetteShimano CS-M6100-12, 10-51T, 12-speed
  • CranksetPraxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160, M/L:165, XL:170)
  • ShiftersShimano SLX
  • Rear DerailleurShimano SLX, 12-speed, Shadow+
  • Front DerailleurMRP HD2 co-moulded chain guide
  • GearingShimano SLX Shadow

Motor & Battery

  • MotorSyncDrive Pro, 85Nm, powered by Yamaha
  • Torque85 Nm
  • BatteryEnergyPak Smart 800, EnergyPak Plus 250Wh range extender compatible
  • Battery Capacity800 Wh
  • Motor ManufacturerYamaha
  • Battery ManufacturerGiant
  • Maximum Motor Supportup to 25 kph

Wheels & Tires

  • HubShimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
  • TiresMaxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R]
  • SpokesSapim E-Lite [R] Race [F], e-bike optimized
  • WheelsGiant AM 29", Tubeless ready, 30mm inner width

Saddle

  • SaddleGiant Romero E
  • Seat PostGiant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170)

Suspension

  • ForkFox 36 Float Rhythm, 150mm travel, 44mm offset, EVOL, Grip Damper, Sweep adjust, Boost 110x15QR, e-optimized
  • ShockFox Float DPS Performance, EVOL Large Volume sleeve, 3-position Lever, 185x52.5mm Trunnion mount, custom tuned
  • Fork typesuspension fork
  • Front suspension150mm
  • Fork ManufacturerFox

Disclaimer

Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. The specified model year corresponds to the model series defined by the manufacturer and not necessarily the year of manufacture. As some models are produced unchanged over several years, the year of manufacture may vary. Irrespective of this, you will receive a current product in accordance with the stated specifications. Errors and omissions are excepted.
