GiantTrance X E+ 3

Loading..

Questions and Answers

Aluminum
625
Yamaha
Shimano Deore
29"
Diamond
Disc Brakes

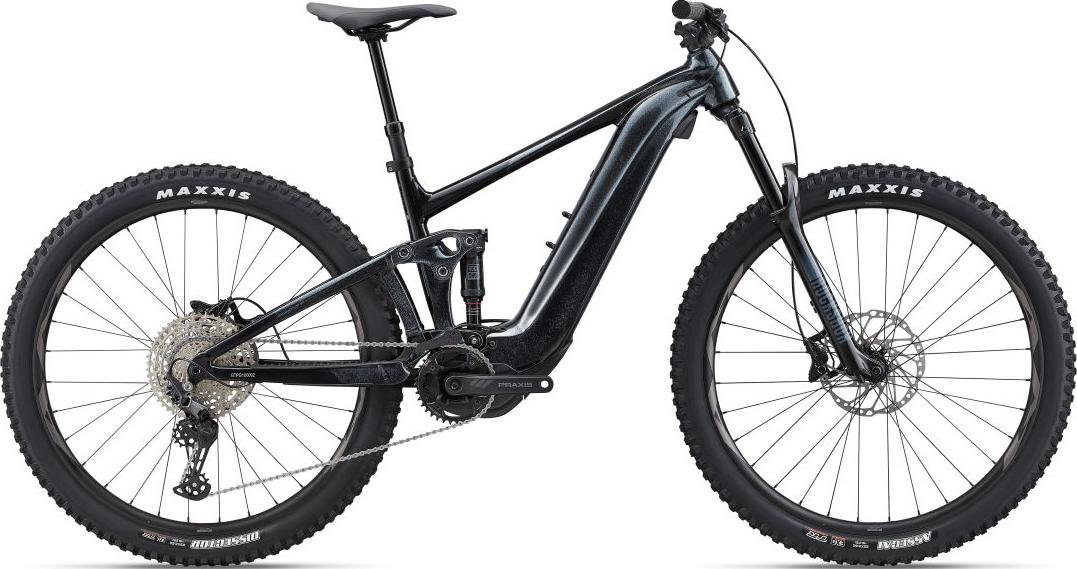

The Giant Trance X E+ 3 2022 is a thrilling electric mountain bike designed for riders who are ready to tackle varied terrains with confidence and ease. Built with a lightweight yet robust ALUXX SL-Grade Aluminum frame, this bike offers great durability without feeling cumbersome. Its Maestro Suspension system features 140mm of travel, ensuring you maintain control and comfort on rugged trails, while ...Read more

General

  • FrameALUXX SL-Grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH derrailleur hanger, Giant EnergyPak Plus Range Extender Compatible

    • Brakes

  • BrakeShimano BR-M420, 4-piston, hydraulic disc, 203mm
  • Brake LeverShimano Deore BL-M4100, I-spec EV

    • Wheels & Tires

  • HubShimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
  • TiresMaxxis Assegai 29x2.6" foldable, Tubeless, EXO [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+ [R]
  • SpokesSapim E-Lite [R] Race [F]
  • WheelsGiant AM 29", Tubeless ready, 30mm inner width

    • Cockpit

  • StemGiant Contact SL 35
  • GripsGiant Tactal Pro-E, single lock-on
  • DisplayRideControl GO, frame integrated LED displayANT+ Wireless display compatible
  • HandlebarGiant Contact 35 Trail, 35x780mm
  • ControllerRideControl Ergo 3, grip integrated

    • Motor & Battery

  • MotorSyncDrive Pro, 85Nm, powered by Yamaha
  • Torque85 Nm
  • BatteryEnergyPak Smart 625Wh, EnergyPak Plus range extender compatible
  • Battery Capacity625 Wh
  • Motor ManufacturerYamaha
  • Battery ManufacturerGiant
  • Maximum Motor Supportup to 25 kph

    • Accessories

  • ExtrasTubeless kit (liquid, valves, levers, manual, tool)

    • Groupset

  • Chain / BeltKMC e.12 Turbo, EcoProteq, e-bike optimized
  • PedalsFlat pedal
  • CassetteShimano CS-M6100-12, 10-51T, 12-speed
  • CranksetPraxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S:160, M/L: 165, XL:170)
  • ShiftersShimano Deore
  • Rear DerailleurShimano Deore 12-speed
  • Front DerailleurMRP HD2 co-moulded chain guide
  • GearingShimano Deore

    • Saddle

  • SaddleGiant Romero Trail
  • Seat PostGiant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170)

    • Suspension

  • ForkRockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimized
  • ShockRock Shox Deluxe R, 185x52.5mm Trunnion mount, custom tuned
  • Fork typesuspension fork
  • Front suspension150mm
  • Fork ManufacturerRockShox
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. Errors and omissions excepted.
