GiantTrance X E+ 3

Loading..

Questions and Answers

Aluminum
750
Yamaha
Shimano Deore
29"
Diamond
Disc Brakes

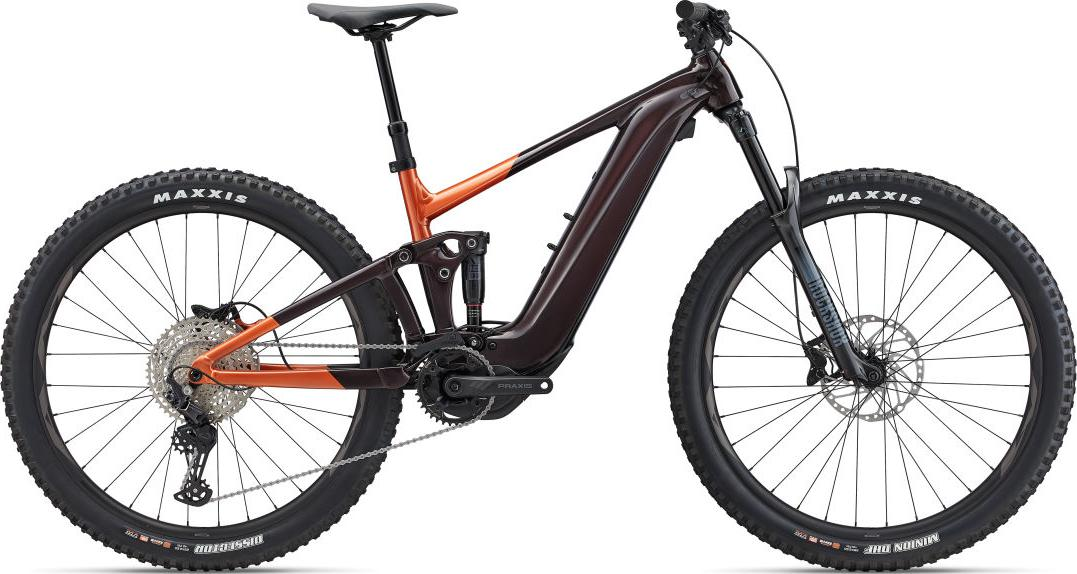

Get ready to elevate your mountain biking experience with the Giant Trance X E+ 3 2023. This electric mountain bike strikes a perfect blend of power and performance, making it suitable for both experienced riders and ambitious newcomers eager to tackle trails with confidence. The foundation is built on a robust ALUXX SL-grade Aluminum frame that is equipped with an Advanced Forged Composite linkage, ...Read more

Accessories

  • LockTorx 25 Battery Lock with built-in Torque limiter
  • ExtrasTubeless kit (liquid, valves, levers, manual, tool)

    • Brakes

  • BrakeShimano BR-M420, 4-piston, hydraulic disc, 203mm
  • Brake LeverShimano Deore, I-spec EV

    • Cockpit

  • StemGiant Contact SL 35
  • GripsGiant New trail grip Half-waffle/single lock-on
  • DisplayANT+ Wireless display compatible
  • HandlebarGiant Contact 35 Trail, 35x780mm
  • ControllerRideControl GO integrated in TT, RideControl Ergo 3

    • General

  • FrameALUXX SL-grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible

    • Groupset

  • Chain / BeltKMC e.12 Turbo, EcoProteq, e-bike optimized
  • PedalsFlat pedals
  • CassetteShimano CS-M6100-12, 10-51T, 12-speed
  • CranksetPraxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160, M/L:165, XL:170)
  • ShiftersShimano Deore
  • Rear DerailleurShimano Deore, 12-speed
  • Front DerailleurMRP HD2 co-moulded chain guide
  • GearingShimano Deore

    • Motor & Battery

  • MotorSyncDrive Pro, 85Nm, powered by Yamaha
  • Torque85 Nm
  • BatteryEnergyPak Smart 750, EnergyPak Plus 250Wh range extender compatible
  • Battery Capacity750 Wh
  • Motor ManufacturerYamaha
  • Battery ManufacturerGiant
  • Maximum Motor Supportup to 25 kph

    • Wheels & Tires

  • HubShimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
  • TiresMaxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R]
  • SpokesSapim E-Lite [R] Race [F], e-bike optimized
  • WheelsGiant AM 29", Tubeless ready, 30mm inner width

    • Saddle

  • SaddleGiant Romero E
  • Seat PostGiant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170)

    • Suspension

  • ForkRockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimized
  • ShockRock Shox Deluxe Select R, DebonAir, 185x52.5mm Trunnion mount, custom tuned
  • Fork typesuspension fork
  • Front suspension150mm
  • Fork ManufacturerRockShox
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. The specified model year corresponds to the model series defined by the manufacturer and not necessarily the year of manufacture. As some models are produced unchanged over several years, the year of manufacture may vary. Irrespective of this, you will receive a current product in accordance with the stated specifications. Errors and omissions are excepted.
