MarinALCATRAZ 1

Loading..

Unfortunately sold out.

This product variant is currently sold out. If available, you can choose a different color or size, or go back to the previous page.

Questions and Answers

Aluminum
26"
Diamond
Disc Brakes

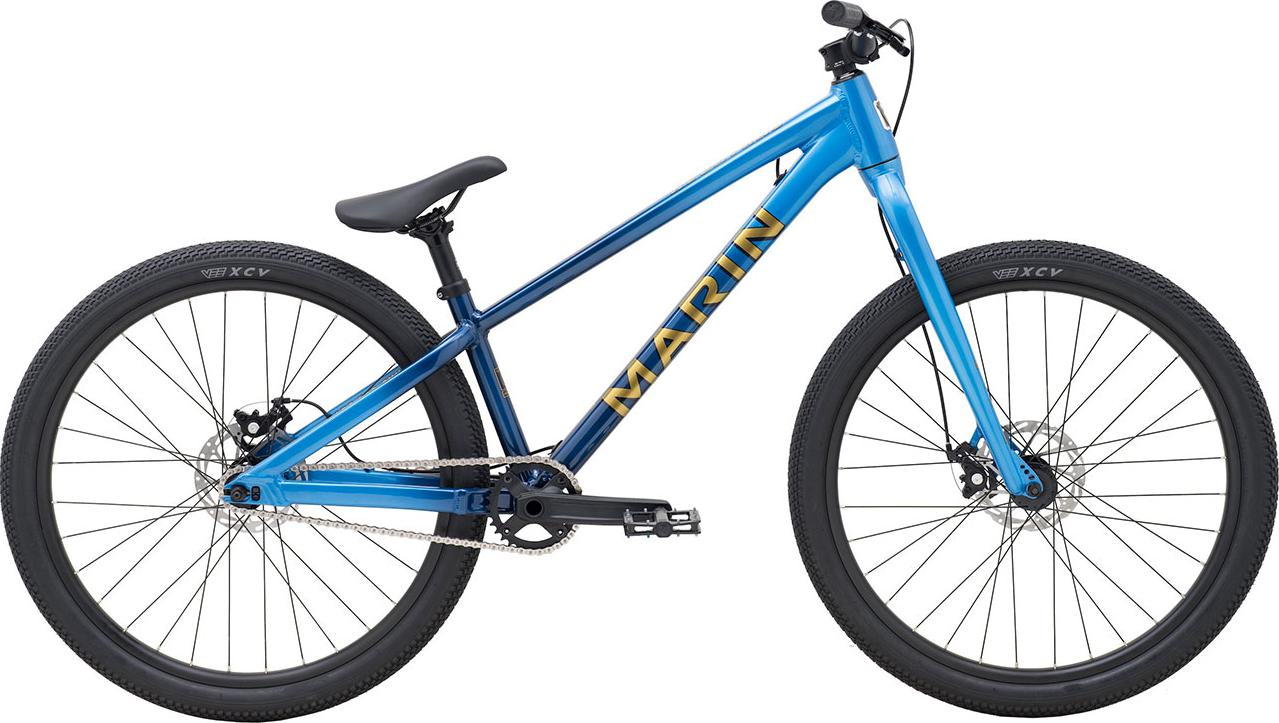

The Marin ALCATRAZ 1 is a powerful hardtail mountain bike that is suitable for both beginners and experienced riders. The robust construction, with a diamond-shaped frame made of series 3 6061 aluminum, guarantees stability and durability. The frame supports 26-inch wheels and has horizontal single-speed dropouts. The bike is also equipped with ISCG 05 tabs that provide excellent traction. The Vee ...Read more

General

  • Frame materialAlloy
  • FrameSeries 3 6061 Aluminum, 26” Wheels, 135x10mm Horizontal Single Speed Dropouts, 73mm Threaded BB, ISCG 05 Tabs

Brakes

  • Rear BrakeTektro MD-M280 Mechanical Disc 160mm Rotor
  • Front BrakeTektro MD-M280 Mechanical Disc 160mm Rotor
  • Brake LeverTektro CL-330TS Alloy

Wheels & Tires

  • TiresVee Tire Co. XCV 26x2.25”, LSG Compound, Wire Bead
  • Spokes14g Black Stainless Steel
  • Rear HubForged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H
  • WheelsMarin Custom Extrusion, 27mm Inner, Pinned Joint
  • Front HubForged Alloy, Bolt On 3/8" Axle, 100mm Spacing

Cockpit

  • StemMarin 3D Forged Alloy, 31.8mm clamp, 40mm extension
  • HeadsetFSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
  • HandlebarMarin Riser, 6061 Double Butted Aluminum, 31.8mm at center bulge, 38mm Rise, 750mm Width, 4º Up, 9º Back
  • GripsMarin MTN, Closed End

Accessories

  • ExtrasMarin Chain Tension Device

Groupset

  • Cassette14T Single Speed Cog
  • CranksetMarin Forged Alloy, Alloy 32T Chainring, 104mm BCD
  • PedalsAlloy Platform
  • Bottom BracketExternal Sealed Cartridge Bearings
  • Chain / BeltKMC HL-1

Saddle

  • SaddleMarin DJ Saddle
  • Seat PostMarin Alloy, 30.9mm

Note on Product Images, Product Description and Specifications

Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components.

Images used on the product pages may partly be sample images and may deviate from the actual configuration. The specified specifications are solely decisive for the scope of delivery and the specific product design.

The specified model year corresponds to the model series defined by the manufacturer and not necessarily to the year of manufacture. Since some models are produced unchanged over several years, the actual year of manufacture may vary. Regardless of this, you will receive a current product in accordance with the specified specifications.

Product descriptions may be partly automatically generated. Despite careful checking, errors cannot be completely ruled out. The product description is therefore not binding; in this case, too, only the specifications are decisive.

Subject to alterations and errors.
