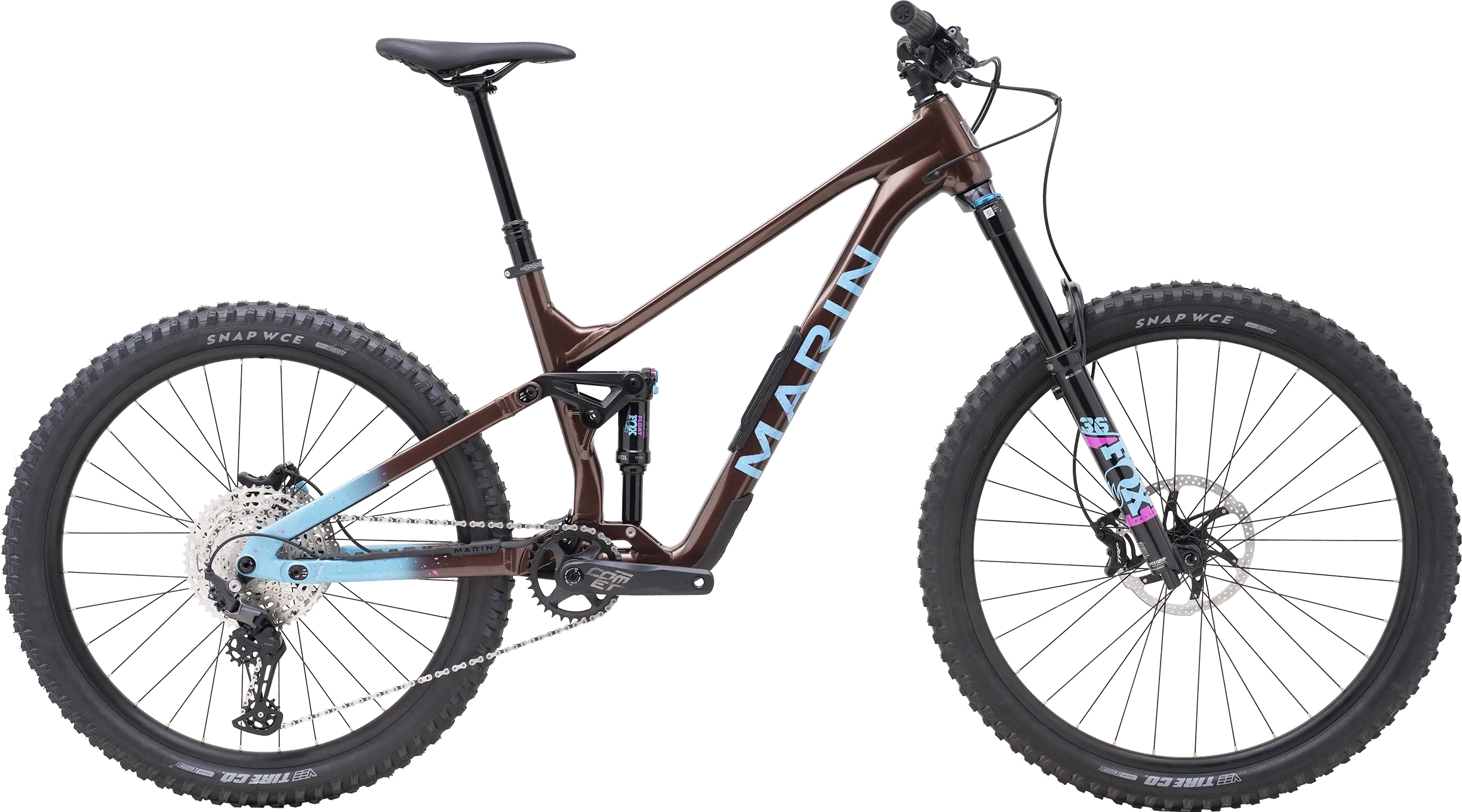

MarinALPINE TRAIL 1

Loading..

Sorry, this item is sold out.

Unfortunately, this item is no longer available. You can sign up to be notified when it's back in stock, or view similar items on BikeExchange.

More Marin FullyMore ALPINE TRAIL 1 offers

Questions and Answers

Aluminum
Shimano Deore
29" / 27.5"
Diamond
Disc Brakes
The all-new Alpine Trail series is our boldest and most capable line of enduro bikes ever, built upon our most advanced, most adjustable frames to date.
Series 4 aluminum MultiTrac 2 LT frames feature mixed 29”/27.5” wheels, 170mm front and 160mm rear travel, and the utmost in adjustability. Riders can alter the head tube angle and bottom bracket/chainstay length, as well as run 29” rear wheels i ...Read more

General

  • Frame materialAlloy
  • FrameAll New Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake

Brakes

  • Rear BrakeTRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
  • Front BrakeTRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
  • Brake LeverTRP Slate EVO Hydraulic, I-Spec EV Compatible

Wheels & Tires

  • TiresVee Tire Co. Snap WCE, 29x2.6" Front 27.5x2.6" Rear, Top 40 Compound, Enduro Core, 90 TPI, Tubeless Compatible
  • Spokes14g Black Stainless Steel
  • Rear HubShimano HB-TC500, 148x12mm, Micro Spline Freehub Body
  • WheelsMarin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
  • Front HubShimano FH-TC500, 110x15mm

Cockpit

  • StemMarin 3D Forged Alloy, 35mm
  • HeadsetFSA Custom, Adjustable HTA Design
  • HandlebarMarin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
  • GripsMarin Grizzly Lock-On

Accessories

  • ExtrasDowntube Storage Bag

Groupset

  • Front Derailleur-
  • CassetteShimano, Deore M6100 12-Speed, 10-51T
  • CranksetFSA Comet Heavy Duty, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
  • Pedals-
  • ShiftersShimano Deore, 12-Speed, SL-6100-IR
  • Bottom BracketFSA MegaExo 73mm BSA
  • Rear DerailleurShimano Deore, 12-Speed, SGS
  • Chain / BeltKMC X-12 Silver and Black

Saddle

  • SaddleMarin Speed Concept
  • Seat PostTranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm

Suspension

  • ShockFox Float Performance, 205x65, 30xM8 Lower Hardware, Custom Tune

Note on Product Images, Product Description and Specifications

Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components.

Images used on the product pages may partly be sample images and may deviate from the actual configuration. The specified specifications are solely decisive for the scope of delivery and the specific product design.

The specified model year corresponds to the model series defined by the manufacturer and not necessarily to the year of manufacture. Since some models are produced unchanged over several years, the actual year of manufacture may vary. Regardless of this, you will receive a current product in accordance with the specified specifications.

Product descriptions may be partly automatically generated. Despite careful checking, errors cannot be completely ruled out. The product description is therefore not binding; in this case, too, only the specifications are decisive.

Subject to alterations and errors.
