MarinBobcat Trail 5 (29")

Loading..

Questions and Answers

Aluminum
Shimano Deore
29"
Step-Through
Disc Brakes

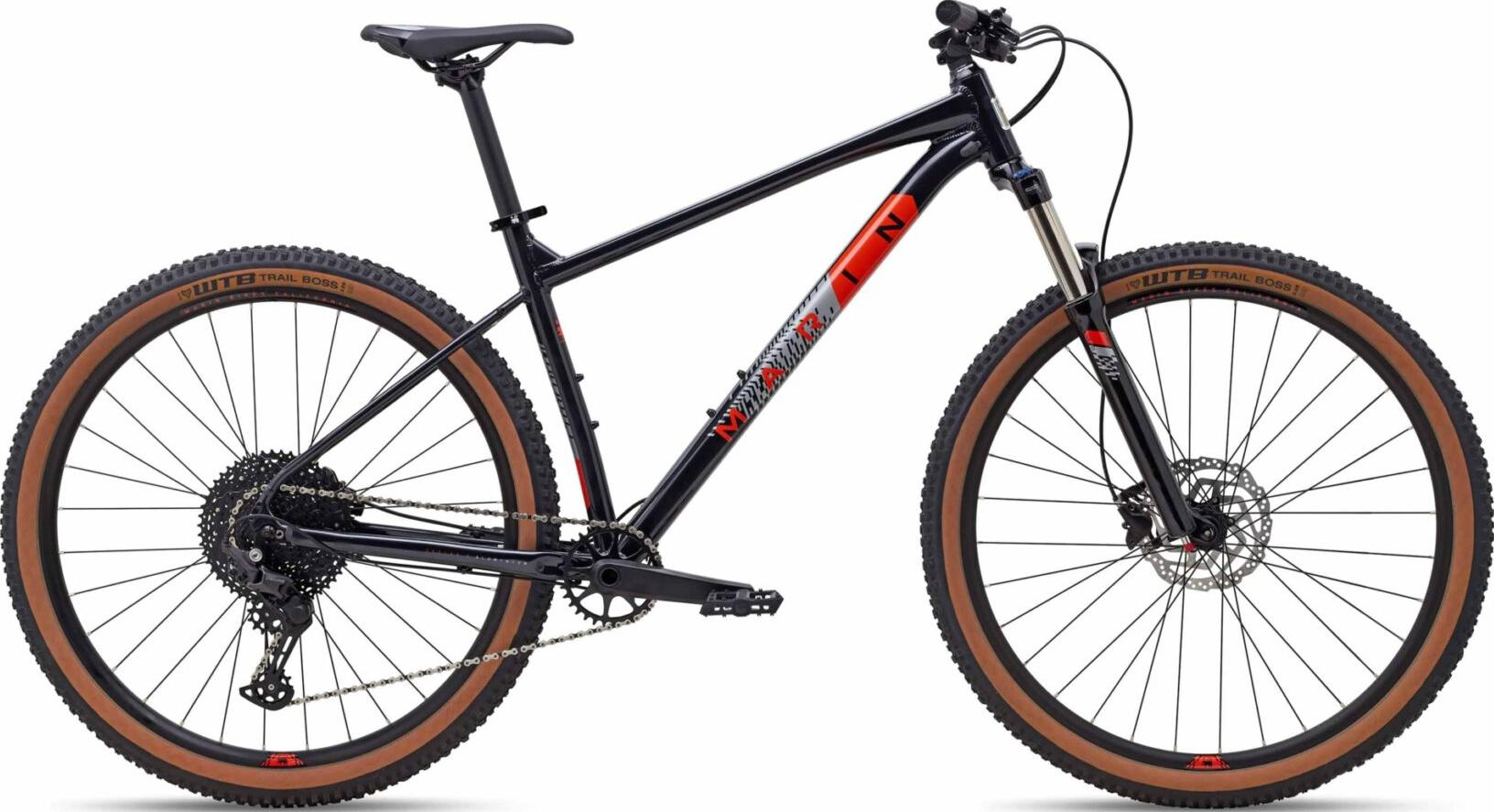

The best of the Bobcats, the Marin Bobcat Trail 5 is our chance to really push what our bang-for-your-buck MTB can do. Fast, comfy and fun Series 2 aluminum frame? Check. 1X drivetrain? You got it. SR/Suntour XCR fork? You bet. Shimano Deore 11-speed shifting, Shimano hydraulic brakes and trendy tanwall WTB tires? Damn straight! And, of course, your choice of 27.5” or 29” wheels.

General

  • FrameSeries 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing

    • Brakes

  • Brake LeverShimano BL-MT201
  • Rear BrakeShimano BR-MT201 Hydraulic Disc, 160mm Rotor
  • Front BrakeShimano BR-MT201 Hydraulic Disc, 180mm Rotor

    • Wheels & Tires

  • TiresMTB, 27.5/29x2.25"
  • Spokes14g Black Stainless Steel
  • WheelsMarin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
  • Rear HubForged Alloy, Disc, 32H
  • Front HubForged Alloy, Disc, 32H

    • Cockpit

  • StemMarin Alloy, 31.8mm Clamp, 45mm
  • GripsMarin MTB, Closed End
  • HeadsetFSA No.10-P
  • HandlebarMarin 31.8 Riser, 12mm Rise, 780mm Width

    • Groupset

  • Chain / BeltKMC X11
  • PedalsNylon Platform
  • CassetteSunRace 11-Speed, 11-51T
  • CranksetMarin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring
  • ShiftersShimano Deore 11-Speed
  • Bottom BracketExternal Sealed Cartridge Bearings
  • Rear DerailleurShimano Deore 11-Speed w/Clutch
  • Front Derailleur-
  • GearingShimano Deore

    • Saddle

  • SaddleMarin MTB
  • Seat PostMarin Alloy, 30.9

    • Suspension

  • Front suspensionSR/Suntour XCR LOR-DS, Thru-Axle, 120mm Travel, Hydraulic Lockout, Damping Adjustment, 42mm (27.5") and 46mm (29") Offsets
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. Errors and omissions excepted.

    About Marin Bikes

    Marin Bikes has been around since 1986, creating high-quality bikes with a focus on innovation and performance. Originally from California, the brand has a long history of making bikes that stand up to both urban environments and rugged trails. Their philosophy centers around providing riders with bikes that offer a perfect blend of adventure, comfort, and style. Whether you’re into mountain biking, road cycling, or commuting, Marin has you covered with a variety of models. Their range includes mountain bikes, gravel bikes, and city bikes, all designed to cater to different cycling needs. Users often rave about the bike's durability and smooth ride, making them a favorite for both beginners and seasoned riders. If you’re someone who enjoys exploring the outdoors, tackling trails, or cruising around the city, Marin is definitely worth considering for your next ride.
