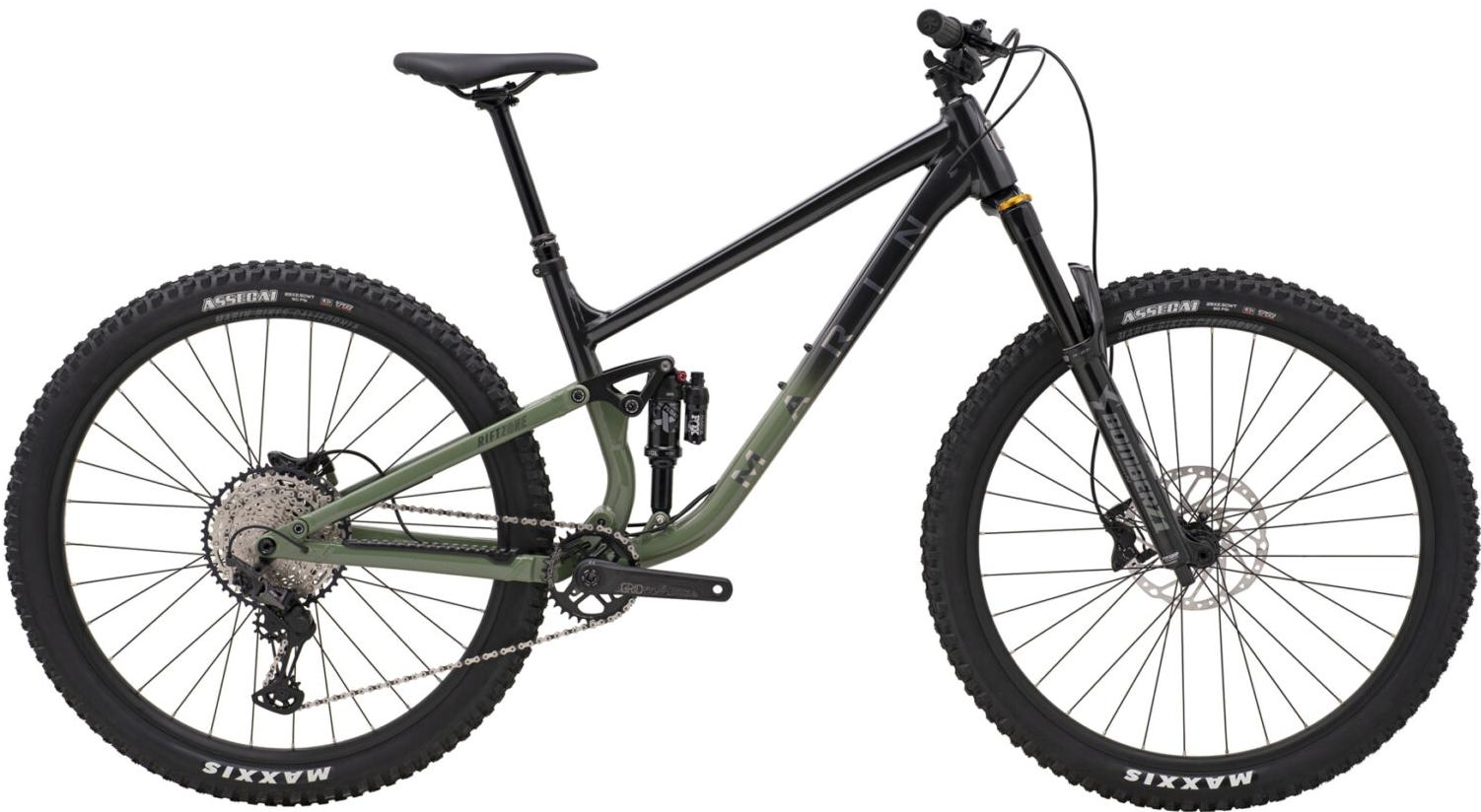

MarinRift Zone XR 29

Loading..

Questions and Answers

Aluminum
Shimano Deore XT
29"
Step-Through
Disc Brakes
The Rift Zone Rifty 29 brings together trail-taming 29" wheels, 130mm of rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails.

XR means Extra Rad. The Marin Rift Zone XR is our hard-charging special edition, made for riders that want the raddest, baddest Rifty in the range. Marzocchi Bomber Z1 fork, Fox Float X shock, Maxxis ...Read more

General

  • FrameAll New Series 3 6061 Aluminum, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

    • Brakes

  • Rear BrakeShimano MT420, 4-Piston Hydraulic Disc, Metallic Pads, 180mm Rotor
  • Brake LeverShimano MT4100
  • Front BrakeShimano MT420, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor

    • Wheels & Tires

  • TiresMaxxis Assegai, 29x2.5", MAXX TERRA, EXO, Tubeless Compatible
  • Spokes14g Black Stainless Steel
  • WheelsMarin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
  • Rear HubForged Alloy, 148x12mm, Disc, 32H, MS Freehub Body
  • Front HubForged Alloy, 110x15mm, Disc, 32H

    • Cockpit

  • StemMarin 3D Forged Alloy, 35mm
  • GripsMarin Grizzly Lock On
  • HeadsetFSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
  • HandlebarMarin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

    • Accessories

  • ExtrasBolt-On Thru-Axle

    • Groupset

  • Chain / BeltKMC X-12 Silver and Black
  • Pedals-
  • CassetteSunRace, 12-Speed, 11-51T, ED Black
  • CranksetFSA Grid, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, MegaExo Spindle, Boost Spacing
  • ShiftersShimano SLX, 12-Speed, SL-7100R
  • Bottom BracketMegaExo 73mm BSA
  • Rear DerailleurShimano XT, 12-Speed, SGS
  • Front Derailleur-
  • GearingShimano Deore XT

    • Saddle

  • SaddleMarin Speed Concept
  • Seat PostTranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm

    • Suspension

  • Front suspensionMarzocchi Bomber Z1 29", Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 44mm Offset
  • ShockFox Float X, Performance Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x55mm, M8x30mm Top, M8x25mm Bottom
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. Errors and omissions excepted.
