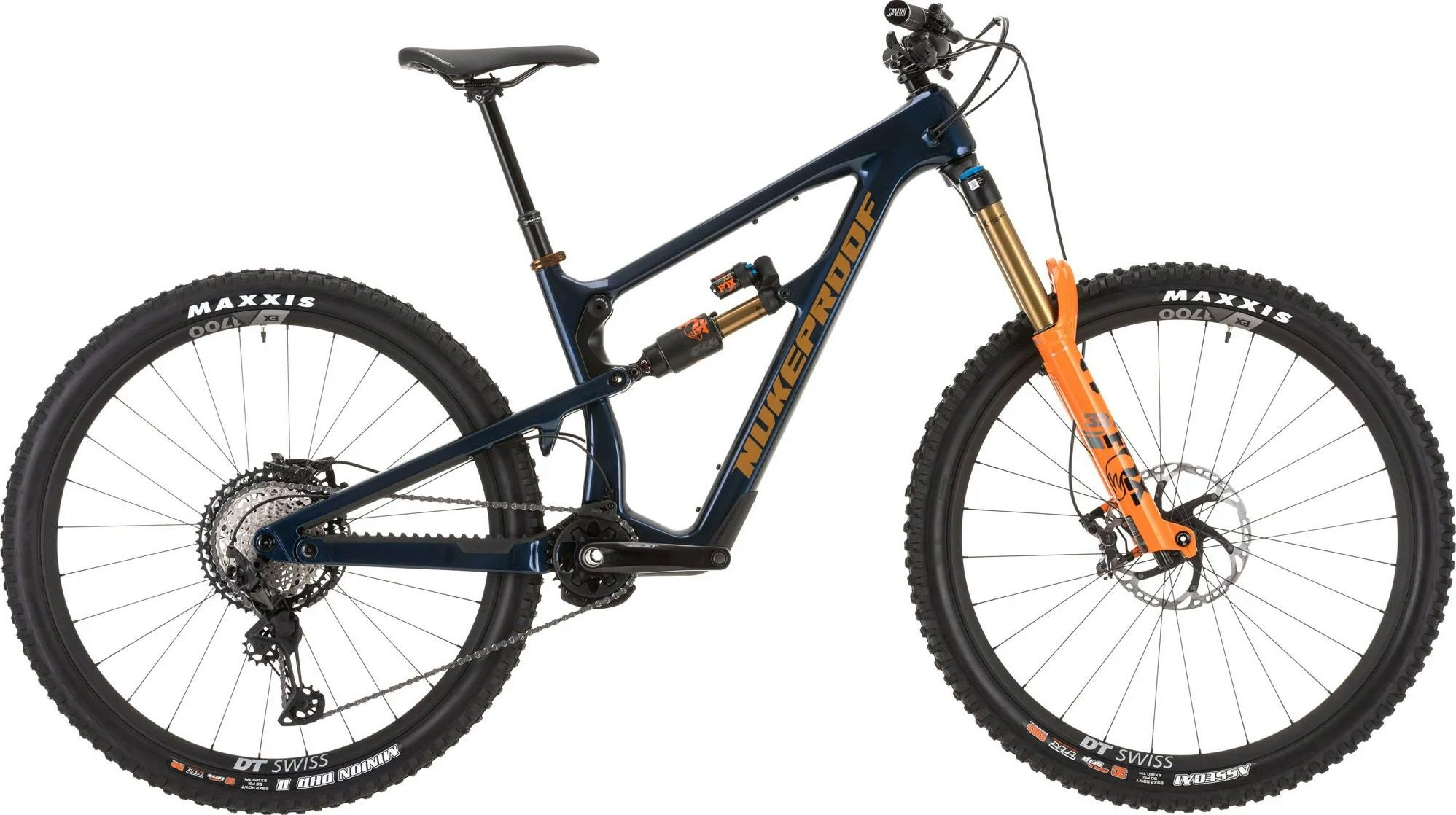

NukeproofMega 290 Factory Carbon

Loading..

Questions and Answers

Carbon
Shimano Deore XT
29"
Diamond
Disc Brakes

General

  • FrameNukeproof Mega V4 290 Carbon, 160mm Travel, ultra-strong monocoque UD Carbon Fibre frame, internally piped cable routing, ISCG 05 mounts, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing

    • Brakes

  • BrakeShimano XT M8120, 4 Pot Brake, Metallic Pads
  • Rear Rotor203mm
  • Front Rotor203mm

    • Wheels & Tires

  • Rear WheelDT Swiss EX1700 SPLINE 30, 29", 6 Bolt, Shimano Microspline Driver, 148x12mm
  • Front WheelDT Swiss EX1700 SPLINE 30,29", 6 Bolt, 110x15mm

    • Cockpit

  • StemNukeproof Horizon, 45mm, Black
  • GripsNukeproof Sam Hill Signature
  • HeadsetNukeproof, 44-56 IITS
  • HandlebarNukeproof Horizon V2 25mm Rise, Width - M780mm, L800mm, XL800mm, XXL800mm

    • Groupset

  • Chain / BeltShimano XT M8100 HG 12-speed Inc Quicklink
  • CassetteShimano Deore M6100 12-Speed (HYPERGLIDE+), 10-51T
  • CranksetShimano XT M8100 12-Speed, Hollowtech 2, 170mm, 32T, 52mm Chainline
  • ShiftersShimano XT M8100-R, 12-speed Rapidfire Plus, I-Spec EV
  • Chain GuideNukeproof Guide with Bash, 28-36T, ISCG-05, black
  • Rear DerailleurShimano XT M8100, SGS 12-Speed, Shadow Plus

    • Saddle

  • SaddleNukeproof
  • Seat PostBikeyoke Divine Stealth with Brand-X lever, M:160mm drop; L/XL/XXL:185mm drop

    • Suspension

  • ForkFox 38 Float, Factory Series, Kashima, Grip 2 Damper, 170mm, 44mm Offset, BOOST, Orange
  • ShockFox Float X2, Factory Series, Kashima, EVOL, 2 Position lever, Custom LCM LRM tune, 230x62.5mm, Bearing End, 2x 0.3 spacer fitted
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. Errors and omissions excepted.
