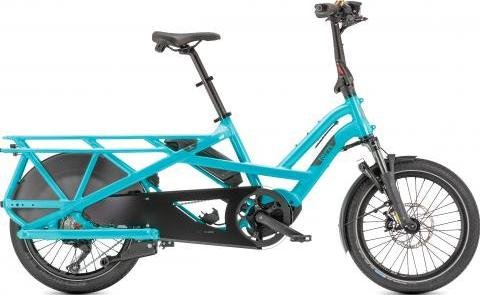

TernGSD Gen 2 S10 400Wh

Questions and Answers

400
Bosch
20"
201 kg (440 lb) Maximum Gross Vehicle Weight Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support Bosch dual-battery system (400/900 Wh) for a range of up to 195 km (121 mi) Shimano® Deore 1 × 10-speed hub for smooth, efficient shifting Adjustable cockpit comfortably fits riders 150 – 195 cm (4’11” – 6’5”) Super tough Atlas Lockstand™ auto-locks when engaged—just press a button ...Read more

General

  • FrameTern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg

    • Brakes

  • Brake LeverMagura MT5 e-stop, hydraulic, with brake sensor

    • Wheels & Tires

  • WheelsTern Atlas, ultra wide 36 mm, dual reinforced joint
  • Rear HubTern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design
  • Front HubTern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
  • TiresF: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
  • SpokesStainless steel, 13G

    • Cockpit

  • StemTern Andros, adjustable, forged construction, patented technology
  • GripsErgon
  • DisplayBosch Purion, 4 mode selectable, walk assist
  • HeadsetTern Flux Pro Taper, 1.5"", angular contact bearings, Physis integrated
  • HandlebarTern Sweep, 6061-AL, Tern Andros adapted

    • Motor & Battery

  • MotorBosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
  • BatteryBosch Dual Battery system, 400 Wh/900 Wh
  • Charger220V, 4A (EU); 100-240V, 4A (US)
  • Motor ManufacturerBosch
  • Battery ManufacturerBosch
  • Maximum Motor Supportup to 25 kph
  • Torque85 Nm

    • Accessories

  • RackFrame integrated, heavy duty design; Max load weight: 100 kg (220 lb)
  • StandAtlas Lockstand, w/ remote unlock, patented technology
  • FenderIntegrated Wheel Guard, AL6061, w/ Side Skirt
  • Rear LightRearStop Brake Light, Always on brake light
  • Front LightTern Valo Direct, 190 lumens
  • BellPitch Plus, brass

    • Groupset

  • Chain / Belt10 spd, DHT for eBike, GST corrosion resistant coating
  • PedalsUrban with non-slip surface, sealed bearings
  • CassetteShimano 11-36T, 10 spd
  • CranksetTern GSD custom, forged 6061-AL DH crankarm
  • ShiftersShimano Deore, 1 x 10 spd
  • Chain CaseTern Custom, full chain cover
  • Bottom BracketMotor integrated
  • Rear DerailleurShimano Deore Shadow+

    • Saddle

  • SaddleTern GSD by Velo, with rear handle
  • Seat PostTern Telescope, 34.9/30.9 mm, 2014-AL
  • Seat Post ClampTern Collar, 6061-AL, 2pc

    • Suspension

  • ForkSuntour custom for Tern, 1.5"" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
  • Fork typesuspension fork
  • Front suspension70mm
  • Fork ManufacturerSR Suntour
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. Errors and omissions excepted.
