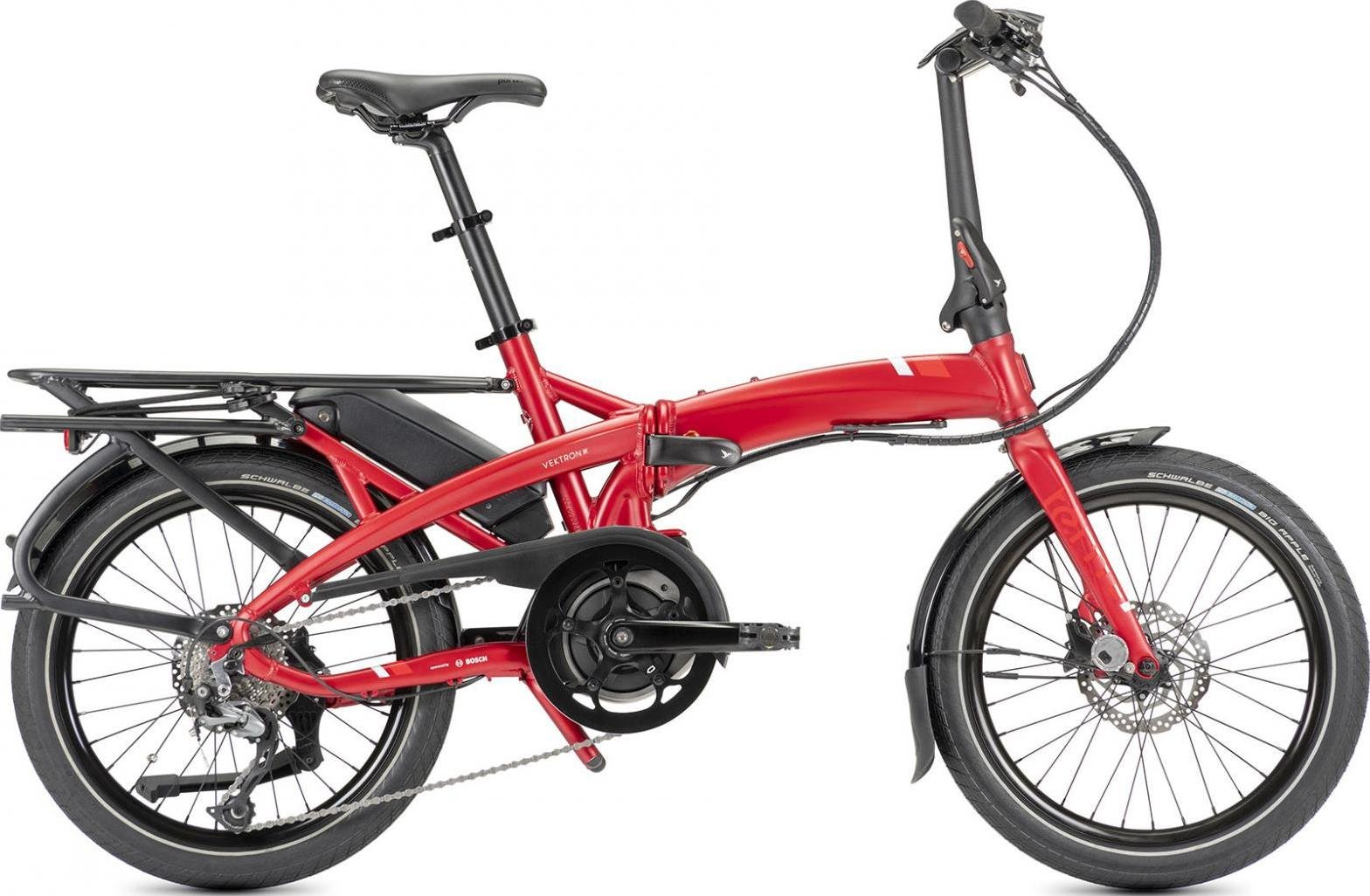

TernVektron Q9

Loading..

Questions and Answers

400
Bosch
20"
New colors and updated styling Upgraded to the Bosch Active Line Plus electric drivetrain for 270% more assistance and 50 Nm of torque Hydraulic disc brakes for all-weather stopping power Updated frame with a reclining battery for a lower center of gravity and better ride Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüftechnik ...Read more

General

  • FrameTern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies

    • Brakes

  • Brake LeverShimano, hydraulic disc

    • Wheels & Tires

  • WheelsKinetix Comp, for disc
  • Rear HubShimano disc
  • Front HubShimano disc
  • TiresSchwalbe Big Apple, 55-406, puncture protection, Reflex
  • SpokesStainless steel

    • Cockpit

  • GripsVelo ergonomic, lock-on
  • DisplayBosch Purion, 4 mode selectable, walk assist
  • HeadsetTern Flux, cartridge bearings, Physis integrated
  • HandlebarFlat bar, 6061-AL, Tern Andros adapted

    • Motor & Battery

  • MotorBosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
  • BatteryBosch PowerPack 400 Wh
  • Charger220V, 4A (EU); 100-240V, 4A (US)
  • Battery Capacity400 Wh
  • Motor ManufacturerBosch
  • Battery ManufacturerBosch
  • Maximum Motor Supportup to 25 kph
  • Torque50 Nm

    • Accessories

  • RackAtlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb)
  • StandURSUS, rear mount
  • FenderSplashGuard, stainless hardware
  • Rear LightHerrmans H-Trace, for eBike
  • Front LightTern Valo Direct, 190 lumens
  • BellAluminum

    • Groupset

  • Chain / Belt9 spd, DHT for eBike, GST corrosion resistant coating
  • PedalsMKS EZY
  • CassetteShimano 11-32T, 9 spd
  • CranksetVektron custom, forged 6061-AL crankarm
  • ShiftersShimano Alivio, 1 x 9 spd, trigger
  • Chain CaseSKS Chainblade
  • Bottom BracketMotor integrated
  • Rear DerailleurShimano Alivio Shadow

    • Saddle

  • SaddleTern Porter, patented GripPad design
  • Seat PostTern Telescope, 34.9/30.9 mm, 2014-AL
  • Seat Post ClampTern Collar, 6061-AL, 2pc

    • Suspension

  • ForkTern Tarsus, 6061-Al, hydroformed
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. Errors and omissions excepted.
