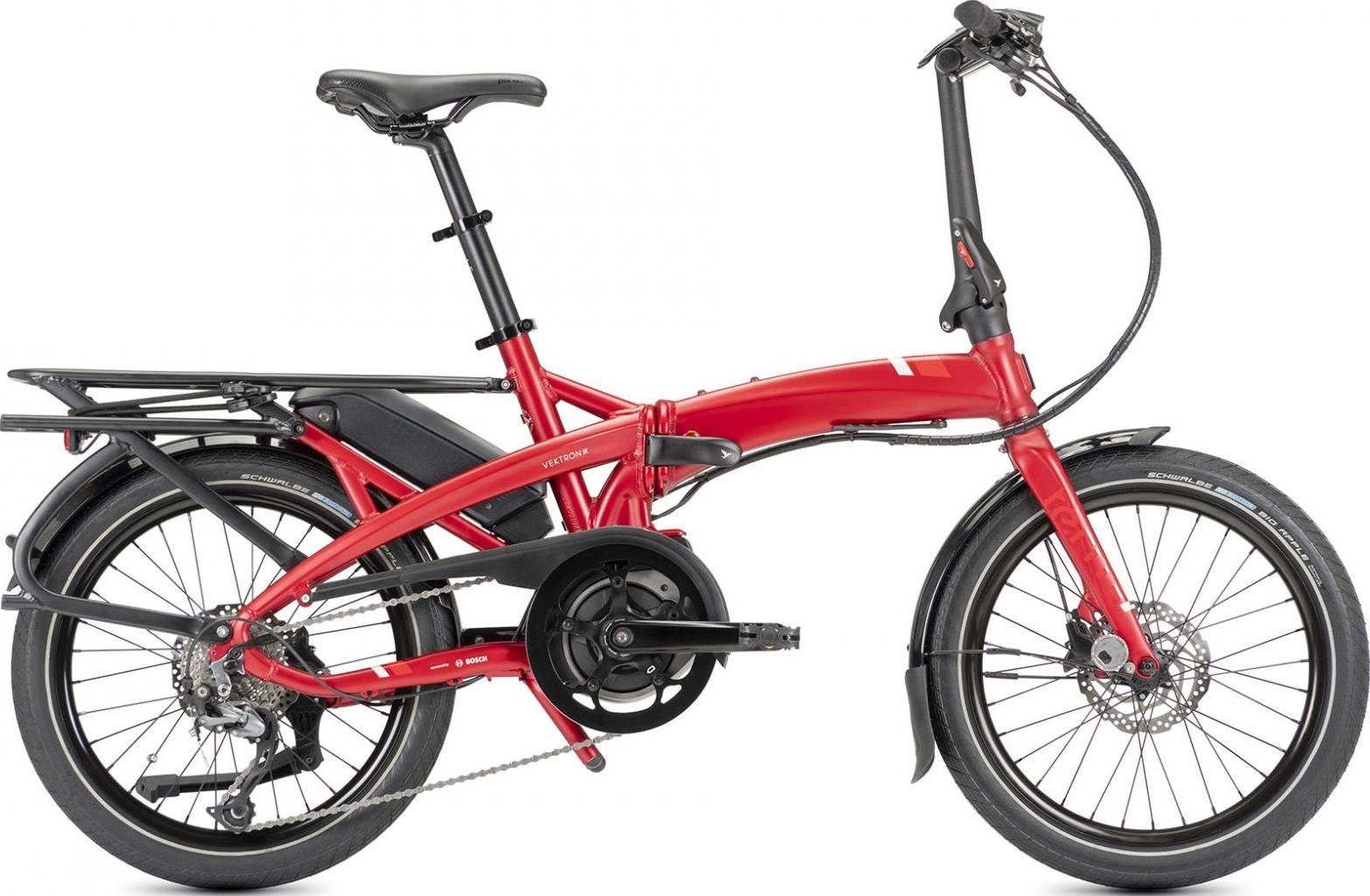

TernVektron Q9

$3,249.00

Excl. taxes and shipping

Colors
Sizes
Loading..

About the Seller

Location:

109 Gosling Rd

Newington, CT 03801

United States

Estimated Time to Ship:

2 – 4 days

Questions and Answers

400
Bosch
20"
New colors and updated styling Upgraded to the Bosch Active Line Plus electric drivetrain for 270% more assistance and 50 Nm of torque Hydraulic disc brakes for all-weather stopping power Updated frame with a reclining battery for a lower center of gravity and better ride Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüf ...Read more

General

  • FrameTern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies

Brakes

  • Brake LeverShimano, hydraulic disc

Wheels & Tires

  • SpokesStainless steel
  • Front HubShimano disc
  • Rear HubShimano disc
  • WheelsKinetix Comp, for disc
  • TiresSchwalbe Big Apple, 55-406, puncture protection, Reflex

Cockpit

  • HeadsetTern Flux, cartridge bearings, Physis integrated
  • HandlebarFlat bar, 6061-AL, Tern Andros adapted
  • GripsVelo ergonomic, lock-on
  • DisplayBosch Purion, 4 mode selectable, walk assist

Motor & Battery

  • Battery Capacity400 Wh
  • Torque50 Nm
  • Charger220V, 4A (EU); 100-240V, 4A (US)
  • Battery ManufacturerBosch
  • Motor ManufacturerBosch
  • Maximum Motor Supportup to 25 kph
  • BatteryBosch PowerPack 400 Wh
  • MotorBosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)

Accessories

  • StandURSUS, rear mount
  • Rear LightHerrmans H-Trace, for eBike
  • RackAtlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb)
  • BellAluminum
  • FenderSplashGuard, stainless hardware
  • Front LightTern Valo Direct, 190 lumens

Groupset

  • CassetteShimano 11-32T, 9 spd
  • CranksetVektron custom, forged 6061-AL crankarm
  • PedalsMKS EZY
  • ShiftersShimano Alivio, 1 x 9 spd, trigger
  • Bottom BracketMotor integrated
  • Rear DerailleurShimano Alivio Shadow
  • Chain CaseSKS Chainblade
  • Chain / Belt9 spd, DHT for eBike, GST corrosion resistant coating

Saddle

  • SaddleTern Porter, patented GripPad design
  • Seat Post ClampTern Collar, 6061-AL, 2pc
  • Seat PostTern Telescope, 34.9/30.9 mm, 2014-AL

Suspension

  • ForkTern Tarsus, 6061-Al, hydroformed

Note on Product Images, Product Description and Specifications

Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components.

Images used on the product pages may partly be sample images and may deviate from the actual configuration. The specified specifications are solely decisive for the scope of delivery and the specific product design.

The specified model year corresponds to the model series defined by the manufacturer and not necessarily to the year of manufacture. Since some models are produced unchanged over several years, the actual year of manufacture may vary. Regardless of this, you will receive a current product in accordance with the specified specifications.

Product descriptions may be partly automatically generated. Despite careful checking, errors cannot be completely ruled out. The product description is therefore not binding; in this case, too, only the specifications are decisive.

Subject to alterations and errors.

About Tern

Tern is a brand that started with a clear mission: revolutionize urban mobility with innovative folding bikes. Founded in 2011, Tern focuses on sustainability and practicality, making city life smoother for cyclists like you. Their philosophy is all about creating bikes that fit seamlessly into your life while reducing your environmental footprint. Whether you're commuting, running errands, or exploring new routes, Tern has a ride for every occasion. Their product range is impressive, spanning folding bikes, e-bikes, and cargo bikes, all designed with versatility and durability in mind. Riders rave about the smooth handling, compact folding mechanisms, and sturdy build quality, proving these bikes are worth the investment. Perfect for city dwellers, families, and anyone looking for efficient, eco-friendly transport, Tern’s bikes are made for those who value practicality without compromising on style. Ready to join the Tern revolution?
