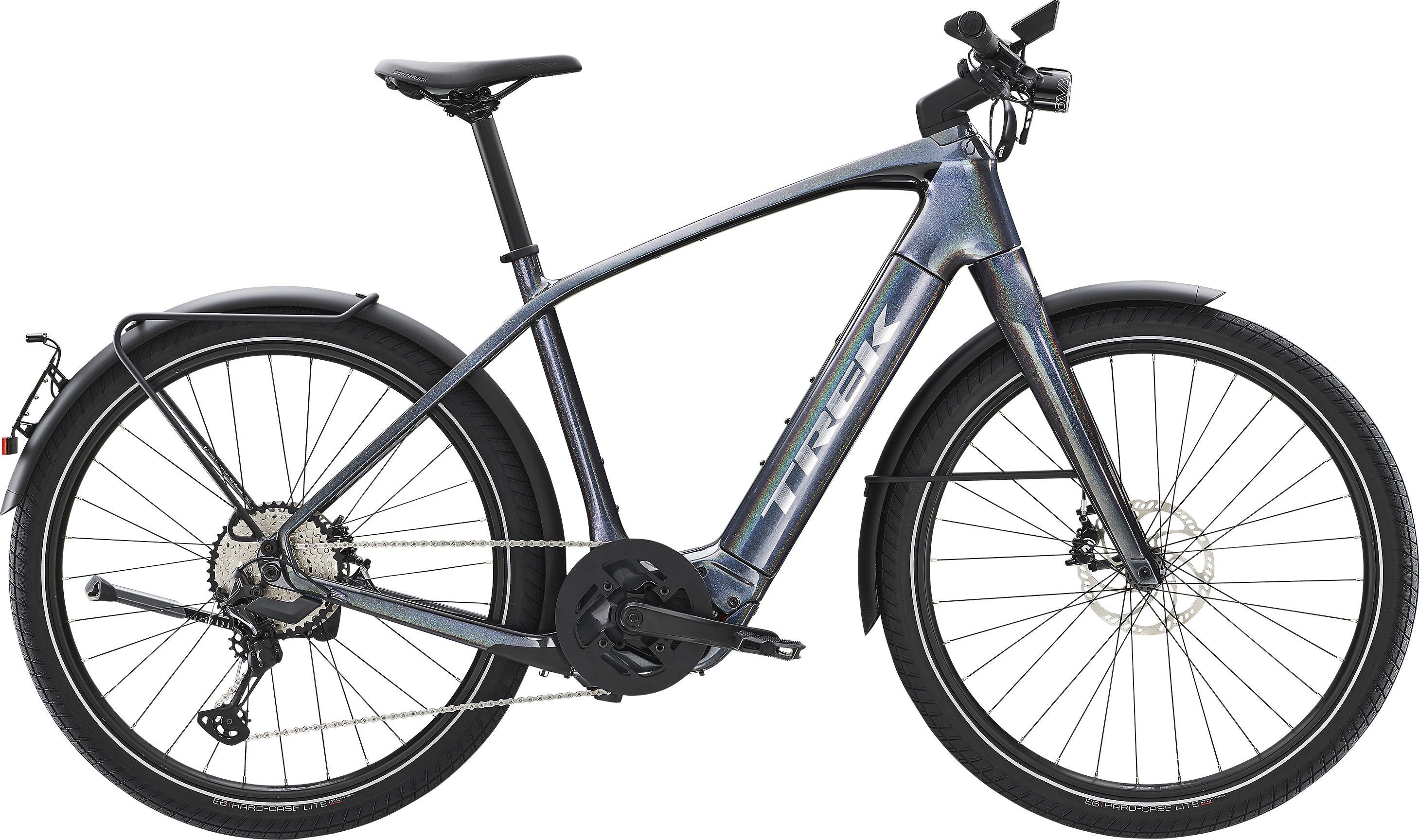

TrekAllant+ 9.9S

Loading..

Questions and Answers

Aluminum
625
Bosch
External Gearing
27.5"
Diamond
Disc Brakes
Buy the trek at BikeExchange, your Marketplace for all things bike!

General

  • Weight*M - 22.20 kg / 48.95 lbs
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

    • Brakes

  • Brake Shimano MT520 4-piston hydraulic disc, post-mount, 180mm rotor
  • RotorsShimano RT64, centerlock, 180mm / Shimano EM600, 180mm, centerlock *

    • Wheels & Tires

  • TiresBontrager E6 Hard-Case Lite, reflective, wire bead, 60tpi, 27.5x2.4''
  • Wheels Alex MD35, tubeless compatible, 32-hole, 35mm width, Presta valve
  • Rear Hub Shimano Deore XT, 32h, centerlock disc, 12mm thru-axle
  • Front Hub Shimano Deore XT M8110, centerlock disc, 15mm thru-axle
  • Rear AxisBontrager Switch thru axle, removable lever
  • Front AxisBontrager Switch thru axle, removable lever

    • Cockpit

  • StemAllant+ forged alloy, integrated cable routing, 31.8mm clamp, Size M: 75mm length, Size L: 95mm length, Size XL: 115mm length
  • Grips Bontrager Satellite IsoZone Plus, lock-on, ergonomic
  • HeadsetSealed cartridge, integrated
  • HandlebarBontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, Size M: 600mm width, Size L, XL: 660mm width

    • Motor & Battery

  • Motor Bosch Performance Speed, 85 Nm, 28 mph / 45 kph
  • Torque85 Nm
  • Battery Bosch PowerTube 625Wh
  • Charger Bosch standard 4A, 100-240V
  • Battery Capacity625 Wh
  • Motor ManufacturerBosch
  • Battery ManufacturerBosch
  • Maximum Motor Supportup to 45 kph

    • Accessories

  • RackAllant integrated rear rack, aluminum
  • LightTrek Lync taillight, 50 lumens / Trek Lync headlight, 500 lumens *
  • Stand Pletscher Comp Flex 18
  • FenderAlloy fender / Alloy fender for use with integrated rack *

    • Groupset

  • Chain / Belt Shimano SLX M7100, 12 speed
  • CrankProWheel alloy, Size M: 170mm length, Size L, XL: 175mm length
  • Pedals Wellgo C157, boron axle, plastic body
  • Cassette Shimano SLX M7100, 10-45T, 12 speed
  • Shifters Shimano XT M8100, 12 speed
  • ChainringsProWheel 46T narrow/wide steel, w/alloy guard
  • Rear Derailleur Shimano XT M8120, long cage, Shadow Plus design
  • GearingShimano XT/SLX, 12fach

    • Saddle

  • SaddleBontrager Commuter Comp
  • Seat PostBontrager Comp, 6061 alloy, 31.6mm, 8mm offset, Size M: 330mm length, Size L, XL: 400mm length

    • Suspension

  • Fork Allant Carbon fork, post mount disc, 100x15mm thru axle
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. Errors and omissions excepted.
