TrekCheckpoint ALR 5

Loading..

Unfortunately sold out.

This product variant is currently sold out. If available, you can choose a different color or size, or go back to the previous page.

Questions and Answers

Aluminum
Shimano GRX
28" / 700c
Diamond
Disc Brakes

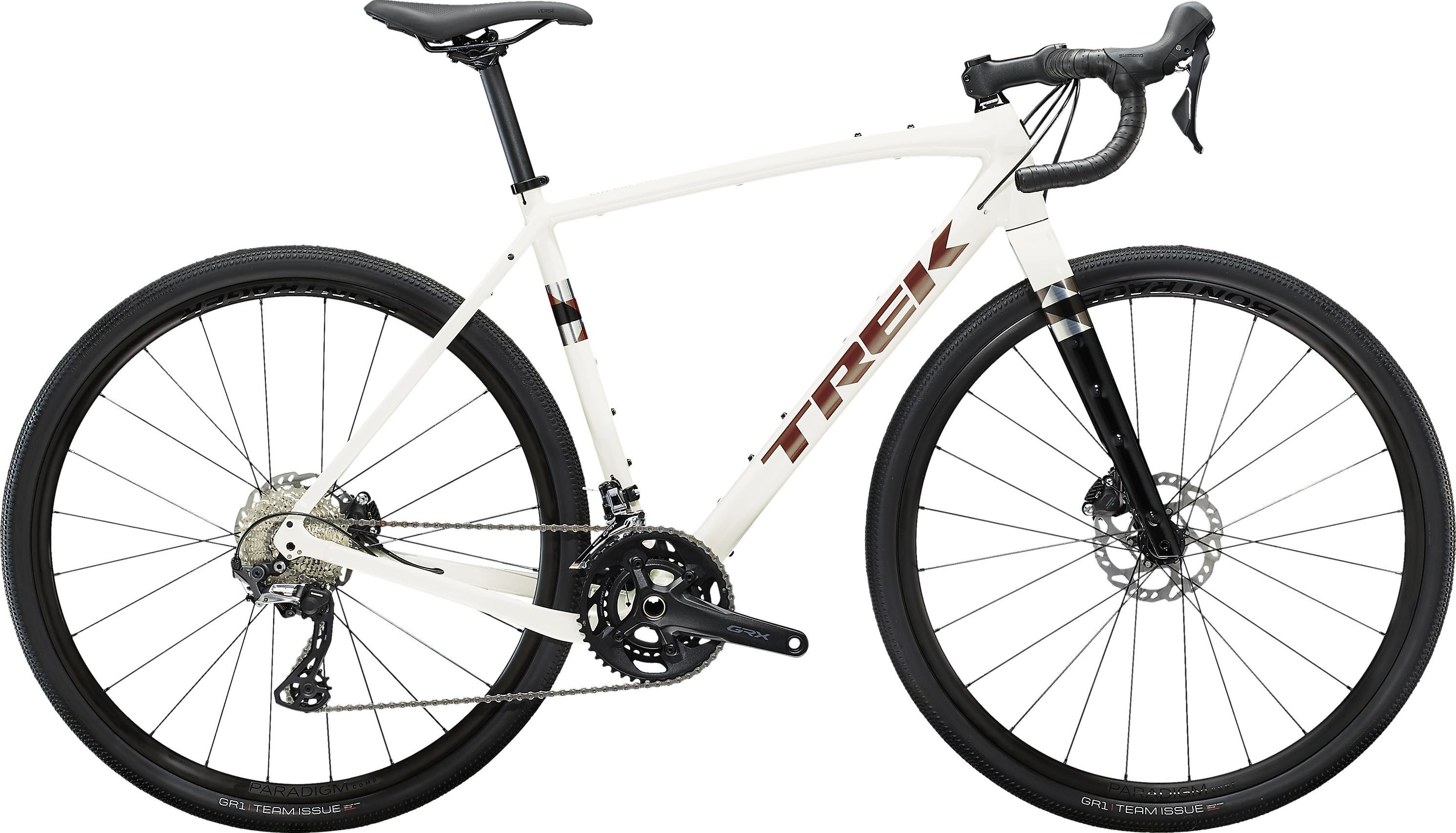

The Trek Checkpoint ALR 5 is the ultimate gravel bike for those who want a high-quality ride without breaking the bank. Designed with both beginners and experienced riders in mind, this bike excels on a variety of terrains, from smooth pavement to rugged dirt paths and challenging gravel roads. It features a robust 300 Series Alpha Aluminum frame with a tapered head tube that lends stability while ...Read more

Brakes

  • Brake Shimano RX400 hydraulic disc, flat mount
  • Rotors Shimano RT70, centerlock, 160mmMax brake rotor sizes: 160mm front & rear

Cockpit

  • Tape Bontrager Supertack Perf tape
  • StemBontrager Elite, 31.8mm, Blendr compatible, 7 degree, Size 49: 70mm length, Size 52, 54: 80mm length, Size 56, 58: 90mm length, Size 61: 100mm length
  • Headset FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
  • HandlebarBontrager Elite Gravel, Size 49: 38cm width, Size 52: 40cm width, Size 54, 56: 42cm width, Size 58, 61: 44cm width

General

  • Weight*56 - 9.75 kg / 21.5 lbs
  • Frame 300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Groupset

  • Front Derailleur Shimano GRX RX810, braze-on
  • Cassette Shimano 105 HG700-11, 11-34, 11 speed
  • Bottom BracketPraxis, T47 threaded, internal bearing
  • GearingShimano GRX RX810/600, 11fach
  • CrankShimano GRX RX600, 46/30, Size 49: 165mm length, Size 52: 170mm length, Size 54, 56: 172.5mm length, Size 58, 61: 175mm length
  • Shifters Shimano GRX RX600, 11 speed
  • Rear Derailleur Shimano GRX RX810, long cage, 34T max cog
  • Chain / Belt Shimano HG601

Wheels & Tires

  • TiresBontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40c
  • Rear Hub Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
  • Rear AxisBontrager Switch thru axle, removable lever
  • WheelsBontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve / Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve *
  • Front Axis Bontrager Switch thru axle, removable lever
  • Front Hub Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle

Saddle

  • SaddleBontrager Verse Comp, steel rails, Size 49, 52: 155mm width, Size 54, 56, 58, 61: 145mm width
  • Seat Post Bontrager alloy, 27.2mm, 12mm offset, 330mm length

Suspension

  • Fork Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle

Note on Product Images, Product Description and Specifications

Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components.

Images used on the product pages may partly be sample images and may deviate from the actual configuration. The specified specifications are solely decisive for the scope of delivery and the specific product design.

The specified model year corresponds to the model series defined by the manufacturer and not necessarily to the year of manufacture. Since some models are produced unchanged over several years, the actual year of manufacture may vary. Regardless of this, you will receive a current product in accordance with the specified specifications.

Product descriptions may be partly automatically generated. Despite careful checking, errors cannot be completely ruled out. The product description is therefore not binding; in this case, too, only the specifications are decisive.

Subject to alterations and errors.
