TrekCheckpoint SL 6 AXS

Loading..

Questions and Answers

Carbon
SRAM Rival eTap AXS
28" / 700c
Diamond
Disc Brakes

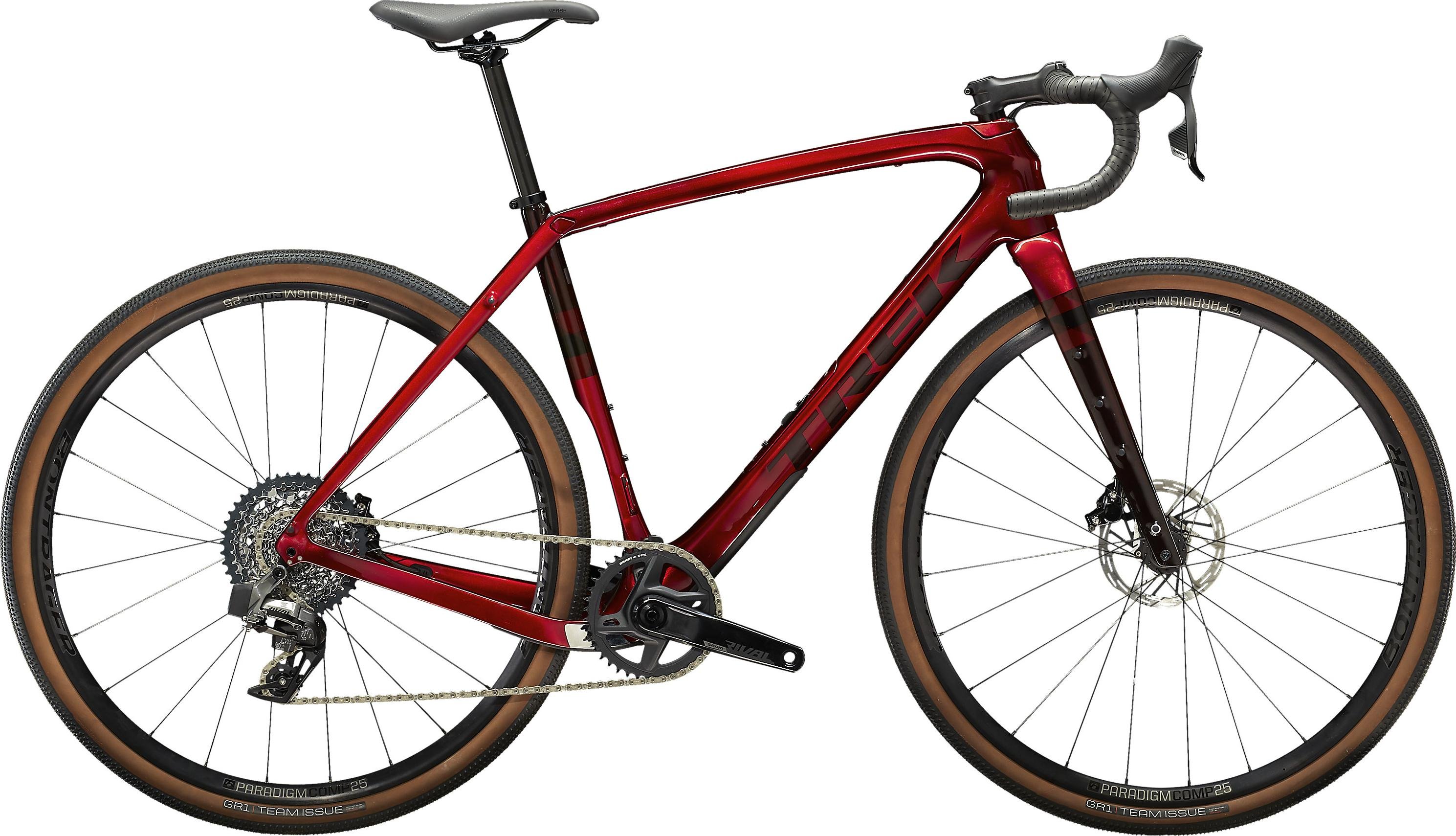

Introducing the Trek Checkpoint SL 6 AXS, a refined gravel bike that's crafted to conquer various terrains with ease and style. Featuring a robust 500 Series OCLV Carbon frame, this bike is not just lightweight but also designed with IsoSpeed technology that smooths out the bumps in your ride, making long gravel journeys much more comfortable. The internal cable routing gives it a clean look while ...Read more

General

  • Frame 500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, dropper post compatible, 142x12mm thru axle
  • Weight*9.05 kg / 19.96 lbs
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

    • Brakes

  • Brake SRAM Rival hydraulic disc, flat mount
  • Rotors SRAM Paceline, rounded, centerlock, 160mm | Max brake rotor sizes: 160mm front & rear

    • Wheels & Tires

  • TiresBontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm
  • Rear AxisBontrager Switch thru axle, removable lever
  • Front Axis Bontrager Switch thru axle, removable lever
  • Rear WheelBontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
  • Front WheelBontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle

    • Cockpit

  • StemBontrager Pro, 31.8mm, Blendr compatible, 7 degree, Size 49: 70mm length, Size 52, 54: 80mm length, Size 56, 58: 90mm length, Size 61: 100mm length
  • HandlebarBontrager Elite Gravel, Size 49: 38cm width, Size 52: 40cm width, Size 54, 56: 42cm width, Size 58, 61: 44cm width
  • Tape Bontrager Supertack Perf tape

    • Groupset

  • CrankSRAM Rival, 40T, DUB Wide, Size 49: 165mm length, Size 52: 170mm length, Size 54, 56: 172.5mm length, Size 58, 61: 175mm length
  • CassetteSRAM XG-1251, 10-44, 12 speed
  • Shifters SRAM Rival eTap AXS, 12 speed
  • Rear Derailleur SRAM Rival XPLR eTap AXS, 44T max cog
  • Bottom Bracket SRAM DUB, T47 threaded, internal bearing
  • Chain / BeltSRAM Rival, 12 speed
  • GearingSRAM Rival eTap AXS, 12fach

    • Saddle

  • SaddleBontrager Verse Comp, steel rails, Size 49, 52: 155mm width, Size 54, 56, 58, 61: 145mm width
  • Seat Post Bontrager carbon, 27.2mm, 8mm offset, 330mm length

    • Suspension

  • Fork Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. Errors and omissions excepted.
