TrekDomane AL 5 Gen 3

Loading..

Questions and Answers

Aluminum
Shimano 105
28" / 700c
Diamond
Disc Brakes

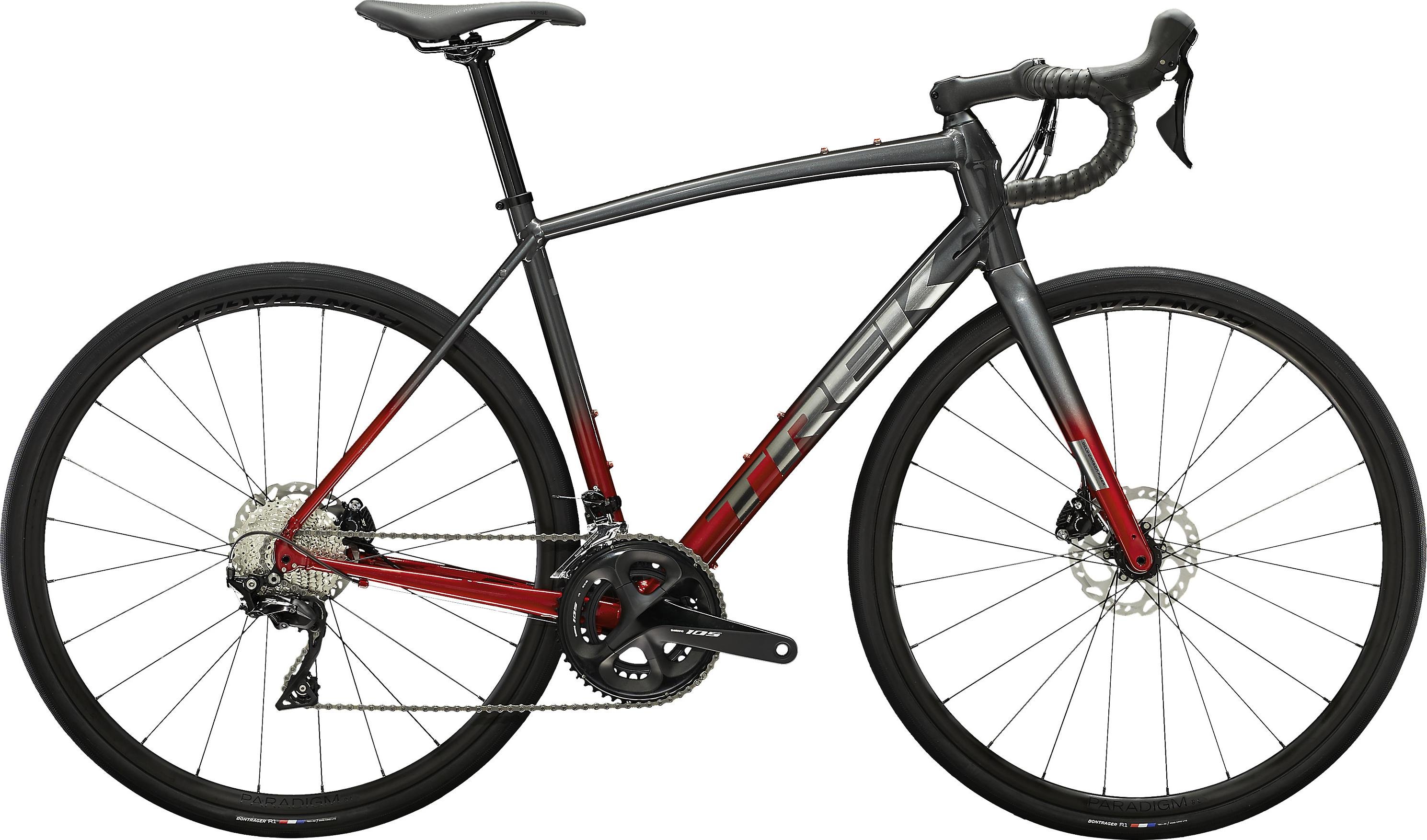

Introducing the Trek Domane AL 5 Gen 3, a well-crafted road bike that comfortably balances performance and comfort. This is an ideal choice for beginners looking to dive into the world of road cycling, as well as seasoned cyclists seeking a dependable ride for long distances. Engineered for versatility and efficiency, the Domane AL 5 is designed to give you the confidence to tackle various terrains ...Read more

Brakes

  • Brake Shimano 105 hydraulic disc, flat mount
  • Rotors Shimano RT70, centerlock, 160mm | Max brake rotor sizes: 160mm front & rear

Cockpit

  • StemBontrager Elite, 31.8mm, Blendr compatible, 7 degree, Size 44: 70mm length, Size 49: 80mm length, Size 52, 54: 90mm length, Size 56, 58: 100mm length, Size 61: 110mm length
  • Tape Bontrager Supertack Perf tape
  • Headset FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
  • Handlebaralloy, 31.8mm, internal Di2 routing, Size 44, 49: Bontrager Elite IsoZone VR-SF, 75mm reach, 128mm drop, 38cm width, Size 52: Bontrager Elite IsoZone VR-SF, 75mm reach, 128mm drop, 40cm width, Size 54, 56: Bontrager Elite IsoZone VR-CF, 93mm reach

General

  • Frame 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
  • Weight*56 - 10.10 kg / 22.27 lbs
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Groupset

  • Chain / Belt Shimano HG601, 11 speed
  • CrankShimano 105 R7000, 50/34 (compact), Size 44: 165mm length, Size 49, 52: 170mm length, Size 54, 56: 172.5mm length, Size 58, 61: 175mm length
  • Cassette Shimano 105 HG700-11, 11-34, 11 speed
  • Shifters Shimano 105 R7020, 11 speed
  • Bottom Bracket Shimano RS500, 68mm, threaded external
  • Rear Derailleur Shimano 105 R7000, long cage, 34T max cog
  • Front Derailleur Shimano 105 R7000, 31.8mm clamp
  • GearingShimano 105 R7000, long cage, 34T max cog

Wheels & Tires

  • Tires Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
  • Spokes 14g stainless steel, black
  • Wheels, Size 44, 49, 52, 54, 56, 58, 61: Bontrager Affinity Disc, Tubeless Ready, 28-hole, 21mm width, Presta valve, Size 49, 52, 54, 56, 58, 61: Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve / Bontrager Paradigm, Tubeless Ready
  • Rear Hub Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
  • Front Hub Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
  • Rear AxisBontrager Switch thru axle, removable lever
  • Front Axis Bontrager Switch thru axle, removable lever

Saddle

  • SaddleBontrager Verse Comp, steel rails, Size 44, 49, 52: 155mm width, Size 54, 56, 58, 61: 145mm width
  • Seat PostBontrager Comp, 6061 alloy, 27.2mm, 8mm offset, Size 44, 49: 250mm length, Size 52, 54, 56, 58, 61: 330mm length

Suspension

  • Fork Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Disclaimer

Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. The specified model year corresponds to the model series defined by the manufacturer and not necessarily the year of manufacture. As some models are produced unchanged over several years, the year of manufacture may vary. Irrespective of this, you will receive a current product in accordance with the stated specifications. Errors and omissions are excepted.

About Trek

Trek is a brand with a rich history, born in 1976 in a Wisconsin barn with a mission to craft exceptional bicycles. Trek’s philosophy is all about innovation, sustainability, and creating bikes that connect people to their love of riding. Whether you’re into road cycling, mountain biking, or just cruising around town, Trek has a bike for you. Their lineup spans high-performance models for competitive riders to hybrids and e-bikes perfect for commuters or casual adventurers. Riders rave about Trek’s blend of durability, comfort, and cutting-edge tech, often saying their bikes feel like an extension of themselves. Whether you're a seasoned cyclist or a weekend warrior, Trek is built for anyone who wants to ride more and ride better. Their commitment to quality and community makes them a brand that’s more than just bikes - it’s a lifestyle. Why not join the Trek family and see where it takes you?
