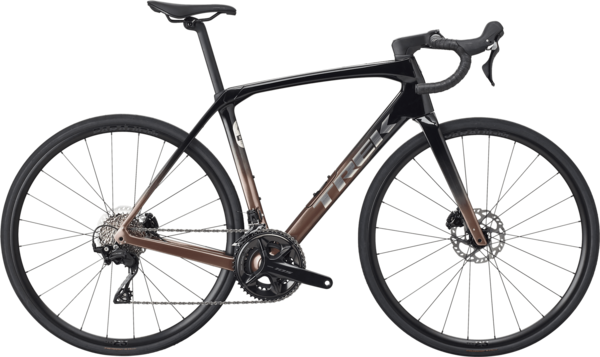

TrekDomane SL 5 Gen 4
Excl. taxes and shipping
About the Seller
Location:
803 East 2100 South
Salt Lake City, UT 84106
United States
Estimated Time to Ship:
2 – 4 days
Questions and Answers
At the heart of the Domane SL 5 is a lightweight frame that helps deliver a responsive ride witho ...Read more
Brakes
- BrakeShimano CL700 center lock, 160 mm; Shimano RT70 center lock, 160 mm; Max disc size 160 mm front and rear
- Brake LeverIncluded with groupset (Shimano 105 R7120)
Cockpit
- Stem44: Trek RCS Pro, -7°, 60 mm; 47: Trek RCS Pro, -7°, 70 mm; 50: Trek RCS Pro, -7°, 80 mm; 52, 54: Trek RCS Pro, -7°, 90 mm; 56, 58: Trek RCS Pro, -7°, 100 mm; 60, 62: Trek RCS Pro, -7°, 110 mm
- HeadsetIntegrated tapered headset with sealed cartridge bearings — 1-1/8" top and 1.5" bottom, designed for the Domane SL 5 carbon tapered steerer tube
- Handlebar44, 47: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm width at levers, 40 cm width bottom; 50, 52: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm width at levers, 42 cm width bottom; 54, 56, 58: Bontrager Comp, alloy
General
- Frame materialCarbon
- Frame500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat-mount disc brakes, 142x12mm thru axle
Groupset
- CassetteShimano 105 7101, 11-34, 12-speed
- Crankset44, 47, 50: Shimano 105 R7100, 50/34, 165 mm length; 52, 54, 56: Shimano 105 R7100, 50/34, 170 mm length; 58, 60, 62: Shimano 105 R7100, 50/34, 172.5 mm length
- ShiftersShimano 105 R7120
- Chain / BeltShimano SLX M7100, 12-speed
- GroupsetShimano 105 R7120, 12-speed
Wheels & Tires
- TiresNot specified explicitly, max tire size 38 mm without fenders, 35 mm with fenders
- WheelsBontrager Paradigm 23, tubeless ready, 24-hole, 23 mm rim width, Presta valve; Front hub: Bontrager alloy, sealed bearings, centerlock disc, 100x12mm thru axle; Rear hub: Bontrager alloy, sealed bearings, center lock disc, Shimano 11-speed freehub body
Saddle
- SaddleFresh Short Comp, steel rails, 145 mm width
- Seat Post44, 47, 50, 52, 54: KVF aero carbon seatpost, 20 mm offset, 280 mm length; 58, 60, 62: KVF aero carbon seatpost, 20 mm offset, 320 mm length
Note on Product Images, Product Description and Specifications
Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components.
Images used on the product pages may partly be sample images and may deviate from the actual configuration. The specified specifications are solely decisive for the scope of delivery and the specific product design.
The specified model year corresponds to the model series defined by the manufacturer and not necessarily to the year of manufacture. Since some models are produced unchanged over several years, the actual year of manufacture may vary. Regardless of this, you will receive a current product in accordance with the specified specifications.
Product descriptions may be partly automatically generated. Despite careful checking, errors cannot be completely ruled out. The product description is therefore not binding; in this case, too, only the specifications are decisive.
Subject to alterations and errors.
About Trek
Trek is a brand with a rich history, born in 1976 in a Wisconsin barn with a mission to craft exceptional bicycles. Trek’s philosophy is all about innovation, sustainability, and creating bikes that connect people to their love of riding. Whether you’re into road cycling, mountain biking, or just cruising around town, Trek has a bike for you. Their lineup spans high-performance models for competitive riders to hybrids and e-bikes perfect for commuters or casual adventurers. Riders rave about Trek’s blend of durability, comfort, and cutting-edge tech, often saying their bikes feel like an extension of themselves. Whether you're a seasoned cyclist or a weekend warrior, Trek is built for anyone who wants to ride more and ride better. Their commitment to quality and community makes them a brand that’s more than just bikes - it’s a lifestyle. Why not join the Trek family and see where it takes you?
