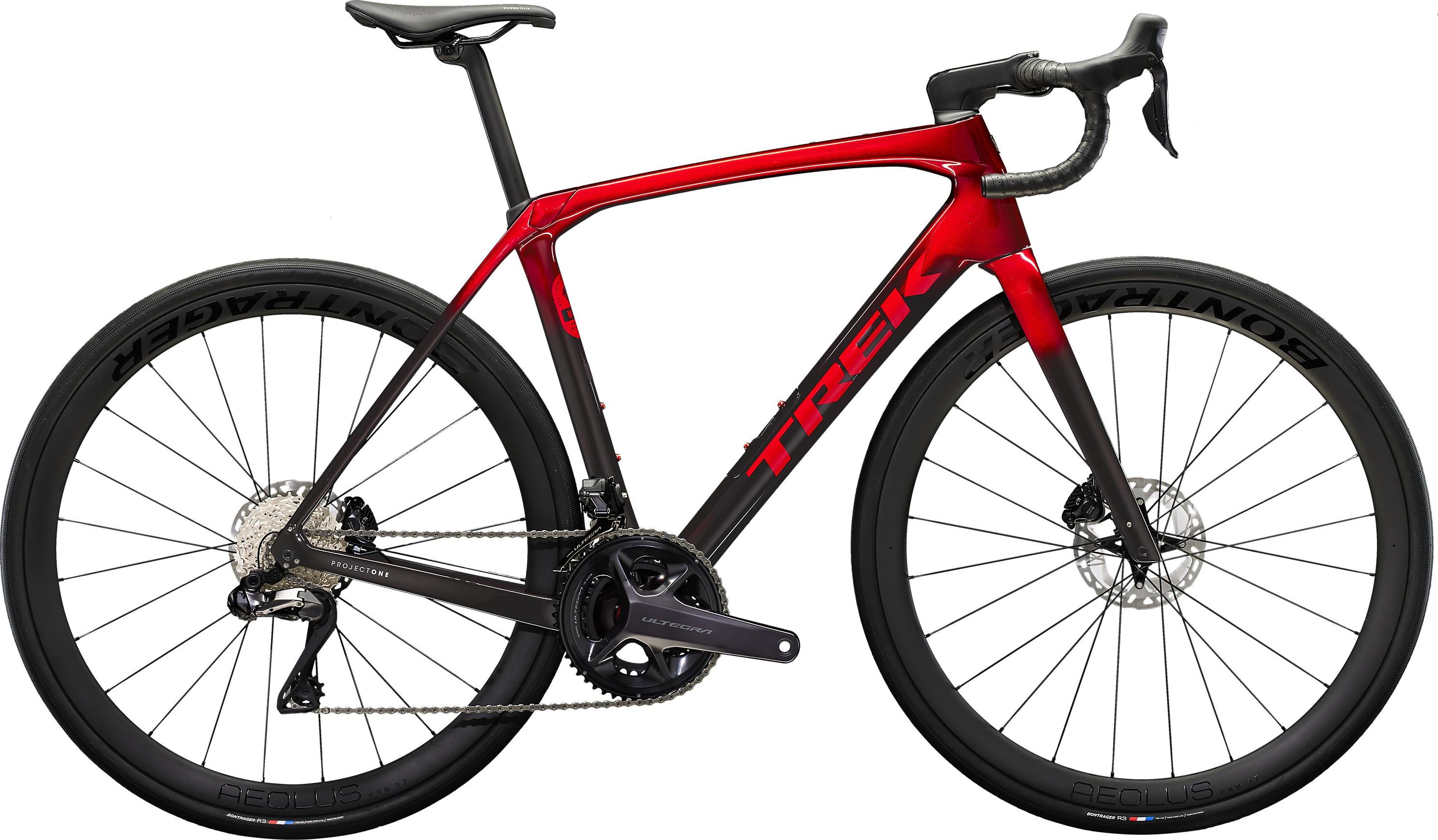

TrekDomane SLR 7 Gen 4
Questions and Answers
Brakes
- Brake Shimano Ultegra hydraulic disc, flat mount
- Rotors Shimano CL800, centerlock, 160mm | Max brake rotor sizes: 160mm front & rear
Cockpit
- StemTrek RCS Pro, -7 degree, Size 47: 70mm length, Size 50: 80mm length, Size 52, 54: 90mm length, Size 56, 58: 100mm length, Size 60, 62: 110mm length
- Tape Bontrager Supertack Perf tape
- HandlebarBontrager Pro IsoCore VR-SF, Size 47: 38cm, Size 50, 52: 40cm, Size 54, 56: 42cm, Size 58, 60, 62: 44cm
General
- Frame 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle | 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube
- Weight*56 - 7.89 kg / 17.41 lbs
- Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
Groupset
- Chain / Belt Shimano Ultegra/XT M8100, 12 speed
- Crank, Size 47: Shimano Ultegra R8100, 50/34, 165mm length / Shimano Ultegra R8100, 50/34, 165mm *, Size 50, 52: Shimano Ultegra R8100, 50/34, 170mm length, Size 54, 56: Shimano Ultegra R8100, 50/34, 172.5mm length, Size 58, 60
- CassetteShimano Ultegra R8101, 11-34, 12 speed / Shimano Ultegra R8100, 11-34, 12 speed *
- ShiftersShimano Ultegra R8170 Di2, 12 speed
- Bottom BracketPraxis, T47 threaded, internal bearing
- Rear DerailleurShimano Ultegra R8150 Di2, 34T max cog
- Front DerailleurShimano Ultegra R8150 Di2, braze-on, down swing
Wheels & Tires
- TiresBontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm
- Rear AxisBontrager Switch thru axle, removable lever
- Front AxisBontrager Switch thru axle, removable lever
- Rear WheelBontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle
- Front WheelBontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle
Saddle
- Saddle, Size 47, 50, 52: Verse Short Elite, hollow magnesium rails, 155mm width / Bontrager Verse Short Elite, hollow stainless steel rails, 155mm width *, Size 54, 56, 58, 60, 62: Verse Short Elite, hollow magnesium rails
- Seat PostDomane carbon seatpost, KVF shaping, 20mm offset, Size 47, 50, 52, 54, 56: 280mm length, Size 58, 60, 62: 320mm length
Suspension
- ForkDomane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
Disclaimer
Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. The specified model year corresponds to the model series defined by the manufacturer and not necessarily the year of manufacture. As some models are produced unchanged over several years, the year of manufacture may vary. Irrespective of this, you will receive a current product in accordance with the stated specifications. Errors and omissions are excepted.
