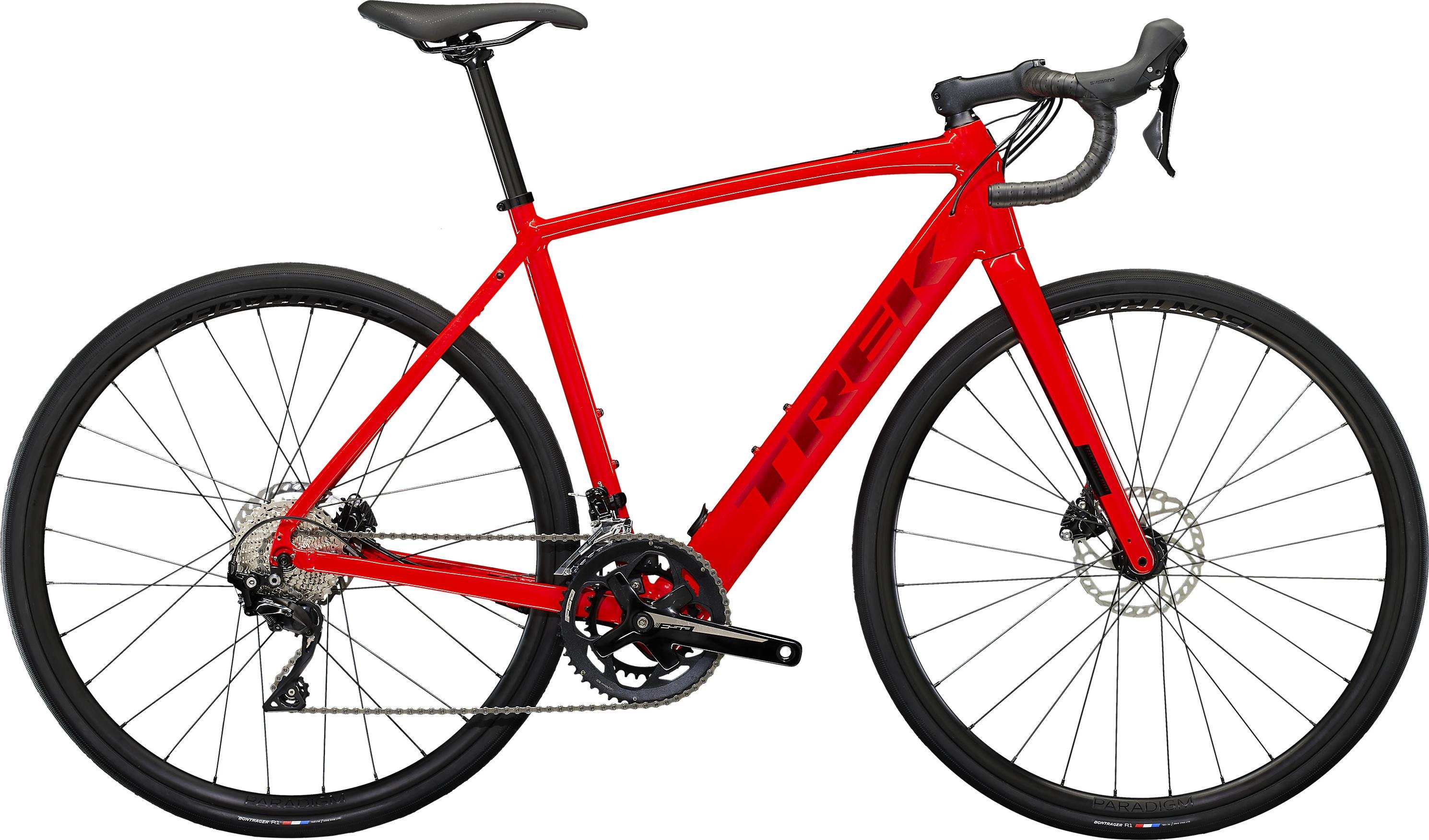

TrekDomane+ AL 5
MSRP
Excl. taxes and shipping
About the Seller
Location:
4169 N Perryville Rd
Loves Park, IL 61111
United States
Estimated Time to Ship:
2 – 4 days
Questions and Answers
General
- Weight*56 - 14.06 kg / 31 lbs
- Frame 100 Series Alpha Aluminum, hub drive system, tapered head tube, internal routing, flat mount disc, rack and fender mounts
- Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
Brakes
- Brake Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin
- Rotors Shimano RT66, 6-bolt, 160mm | Max brake rotor sizes: 160mm front & rear
Wheels & Tires
- Tires Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c
- Rear HubHyena hub drive motor, 40Nm, 250W
- WheelsBontrager Paradigm, Tubeless Ready, 28-hole, 21mm width, Presta valve
- Front Axis Bontrager Switch thru axle, removable lever
- Front Hub Formula RX-812 alloy, sealed bearing, 6-bolt, 100x12mm thru axle
Cockpit
- Tape Bontrager Supertack Perf tape
- StemBontrager Elite, 31.8mm, Blendr compatible, 7 degree, Size 49: 80mm length, Size 52, 54: 90mm length, Size 56, 58: 100mm length, Size 61: 110mm length
- Headset FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
- HandlebarBontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, Size 49: 38cm width, Size 52: 40cm width, Size 54, 56: 42cm width, Size 58, 61: 44cm width
Motor & Battery
- Torque40 Nm
- Charger 2A, 42V output, 100V-240V AC input
- Motor ManufacturerHyena
- Battery Capacity250 Wh
- Battery250Wh, integrated in down tube, Range Extender compatible
Groupset
- Front Derailleur Shimano 105 R7000, 31.8mm clamp
- Cassette Shimano 105 HG700-11, 11-34, 11 speed
- GearingShimano 105
- CrankFSA Vero Pro, 50/34, Size 49: 165mm, Size 52: 170mm, Size 54, 56: 172.5mm, Size 58, 61: 175mm
- Shifters11 speed, Size 49, 52: Shimano 105 R7025, short-reach lever, Size 54, 56, 58, 61: Shimano 105 R7020
- Bottom BracketTorque sensor, threaded, 110mm spindle
- Rear Derailleur Shimano 105 R7000, long cage, 34T max cog
- Chain / Belt Shimano HG601, 11 speed
Saddle
- SaddleBontrager Verse Short Comp, steel rails, Size 49, 52: 155mm width, Size 54, 56, 58, 61: 145mm width
- Seat Post Bontrager carbon, 27.2mm, 8mm offset, 330mm length
Suspension
- Fork Domane+ carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Note on Product Images, Product Description and Specifications
Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components.
Images used on the product pages may partly be sample images and may deviate from the actual configuration. The specified specifications are solely decisive for the scope of delivery and the specific product design.
The specified model year corresponds to the model series defined by the manufacturer and not necessarily to the year of manufacture. Since some models are produced unchanged over several years, the actual year of manufacture may vary. Regardless of this, you will receive a current product in accordance with the specified specifications.
Product descriptions may be partly automatically generated. Despite careful checking, errors cannot be completely ruled out. The product description is therefore not binding; in this case, too, only the specifications are decisive.
Subject to alterations and errors.
