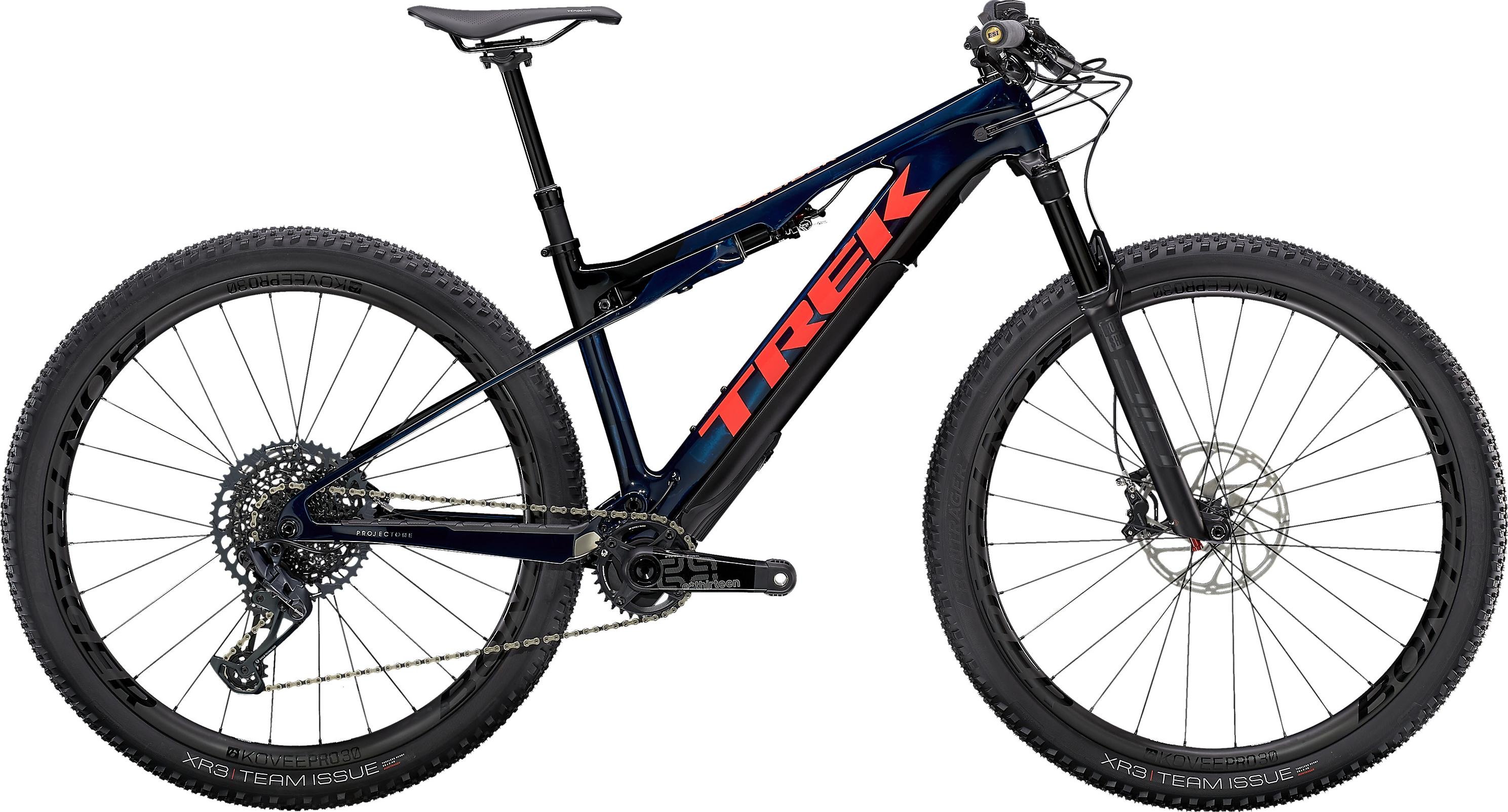

TrekE-Caliber 9.8 GX Gen 1
Questions and Answers
General
- Frame OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel
- Weight*M - 16.99 kg / 37.45 lbs (with TLR sealant, no tubes)
- Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
Brakes
- Brake SRAM G2 RSC 4-piston hydraulic disc
- RotorsSRAM CenterLine, 6-bolt, round edge, 180mm / SRAM CenterLine, 6-bolt, round edge, 200mm *
Wheels & Tires
- TiresBontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29x2.40''
- Rear Wheel Bontrager Kovee Pro 30 Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost 110, 15mm thru axle
- Front WheelBontrager Kovee Pro 30 Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Cockpit
- StemBontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, Size S , M: 60mm length, Size L , XL: 70mm length
- GripsESI Chunky
- Headset Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
- HandlebarBontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width
- Controller Fazua Remote bX
Motor & Battery
- Motor Fazua Evation Drive Pack, 20mph max assist
- Battery Fazua Evation battery, 250Wh
- Charger Fazua Evation charger, 90-120V
- Battery Capacity250 Wh
- Motor ManufacturerFazua
- Battery ManufacturerFazua
- Maximum Motor Supportup to 25 kph
Groupset
- Chain / BeltSRAM GX Eagle, 12 speed
- CrankE*thirteen E*spec Race Carbon, 32T, 175mm length
- Cassette SRAM Eagle XG-1275, 10-52, 12 speed
- Shifters SRAM GX Eagle, 12 speed
- Rear Derailleur SRAM GX Eagle
- Chainrings SRAM X-SYNC, 32T, alloy
- GearingSRAM GX Eagle
Saddle
- SaddleBontrager Verse Elite, austenite rails, 145mm width
- Seat PostBontrager Line Elite Dropper, MaxFlow, internal routing, 31.6mm, Size S: 100mm travel, 340mm length, Size M , L , XL: 150mm travel, 440mm length
Suspension
- Fork RockShox SID Select+, DebonAir spring, Charger 2 RL damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
- ShockTrek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, Size S: 235x32.5mm, Size M , L , XL: 235mm x 32.5mm
- Fork typesuspension fork
- Front suspension120mm
- Fork ManufacturerRockShox
Disclaimer
Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. The specified model year corresponds to the model series defined by the manufacturer and not necessarily the year of manufacture. As some models are produced unchanged over several years, the year of manufacture may vary. Irrespective of this, you will receive a current product in accordance with the stated specifications. Errors and omissions are excepted.
