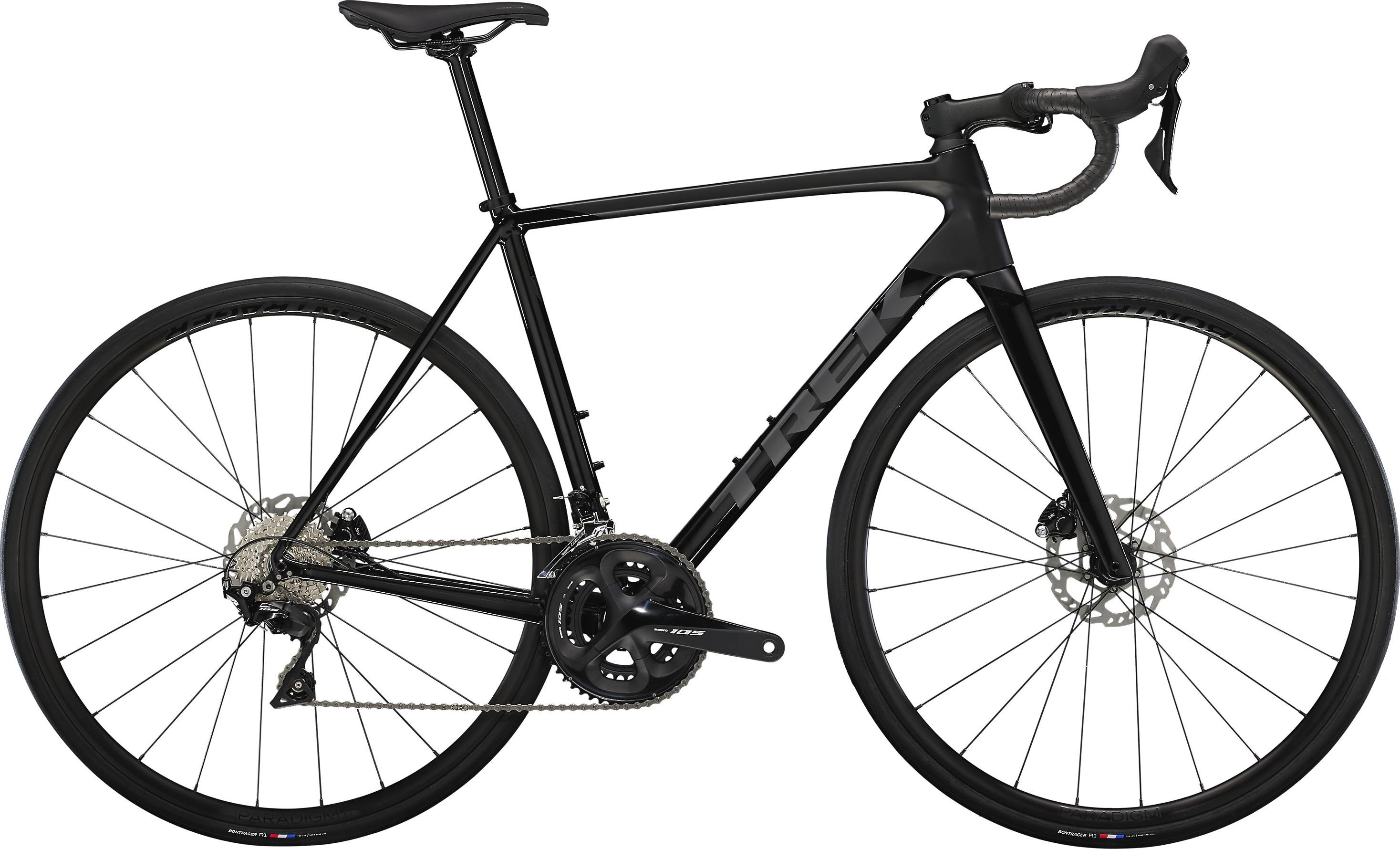

TrekÉmonda ALR 5

Loading..

Questions and Answers

Aluminum
Shimano 105
28" / 700c
Diamond
Disc Brakes
Buy the Trek Émonda ALR 5 at BikeExchange, your Marketplace for all things bike!

Brakes

  • Brake Shimano 105 hydraulic disc, flat mount
  • Rotors Shimano RT70, centerlock, 160mm | Max brake rotor sizes: 160mm front & rear
  • Cockpit

  • StemBontrager Elite, 31.8mm, Blendr compatible, 7 degree, Size 47: 70mm length, Size 50: 80mm length, Size 52, 54: 90mm length, Size 56, 58: 100mm length, Size 60, 62: 110mm length
  • HandlebarBontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, Size 47, 50: 38cm width, Size 52: 40cm width, Size 54, 56, 58: 42cm width, Size 60, 62: 44cm width
  • Tape Bontrager Supertack Perf tape
  • General

  • Frame Ultralight 300 Series Alpha Aluminum, Invisible Weld technology, tapered head tube, internal cable routing, flat mount disc, 142x12mm thru axle
  • Weight*56 - 9.00 kg / 19.85 lbs
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
  • Groupset

  • Chain / Belt Shimano 105 HG601, 11 speed
  • CrankShimano 105 R7000, 50/34 (compact), Size 47: 165mm length, Size 50, 52: 170mm length, Size 54, 56, 58: 172.5mm length, Size 60, 62: 175mm length
  • Cassette Shimano 105 R7000, 11-30, 11 speed
  • Shifters Shimano 105 R7020, 11 speed
  • Rear Derailleur Shimano 105 R7000, short cage, 30T max cog
  • Bottom BracketPraxis, T47 threaded, internal bearing
  • Front Derailleur Shimano 105 R7000, braze-on
  • Wheels & Tires

  • TiresBontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28mm
  • Rear AxisBontrager Switch thru axle, removable lever
  • Wheels Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve
  • Rear Hub Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
  • Front Hub Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
  • Front AxisBontrager Switch thru axle, removable lever
  • Saddle

  • SaddleBontrager Verse Short Comp, steel rails, Size 47, 50, 52: 155mm width, Size 54, 56, 58, 60, 62: 145mm width
  • Seat PostBontrager Comp, 6061 alloy, 27.2mm, 8mm offset, Size 47: 250mm length, Size 50, 52, 54, 56, 58, 60, 62: 330mm length
  • Suspension

  • Fork Émonda ALR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle
  • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. The specified model year corresponds to the model series defined by the manufacturer and not necessarily the year of manufacture. As some models are produced unchanged over several years, the year of manufacture may vary. Irrespective of this, you will receive a current product in accordance with the stated specifications. Errors and omissions are excepted.
