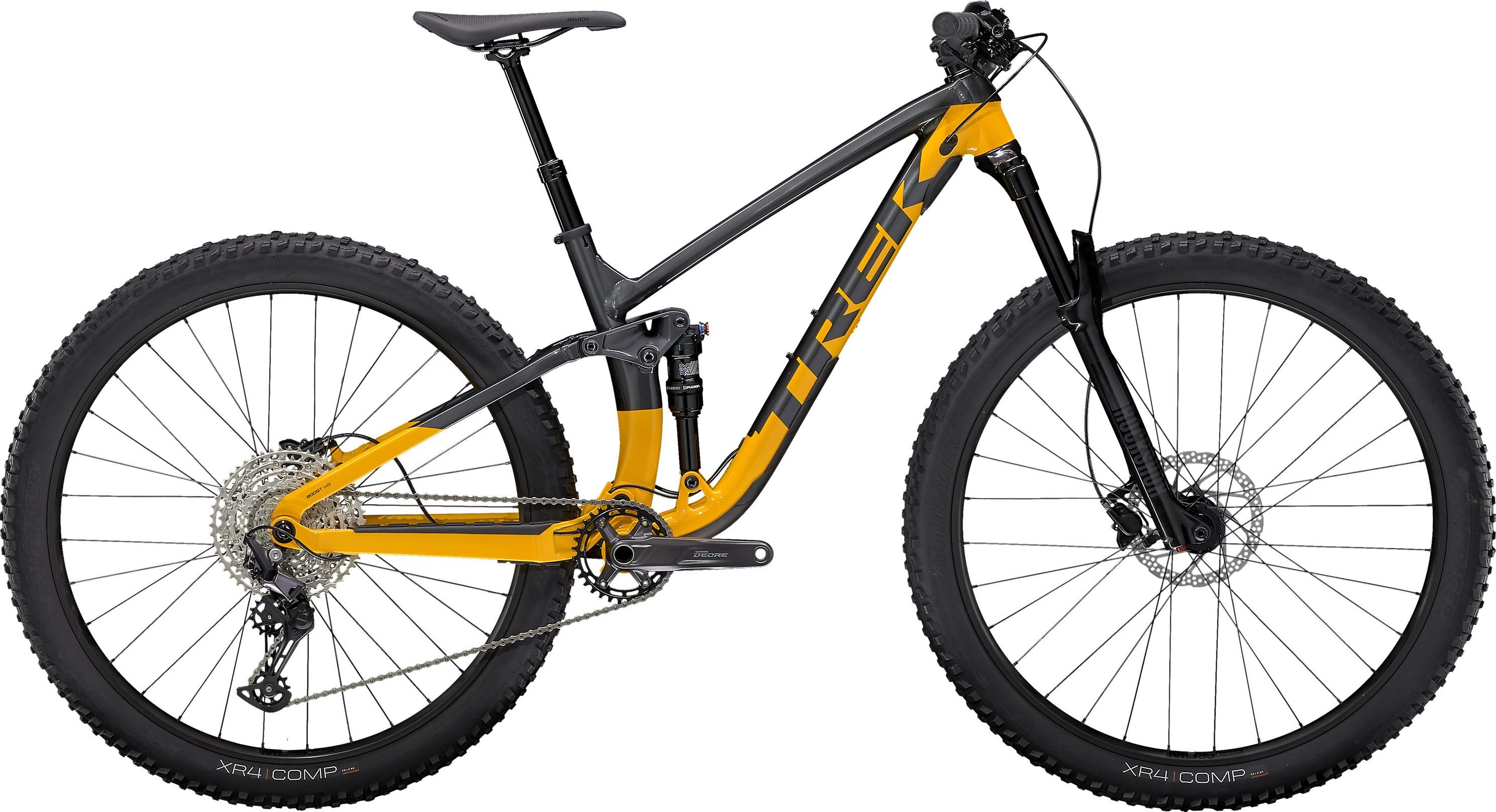

TrekFuel EX 5 Gen 5 (27.5")

Loading..

Unfortunately sold out.

This product variant is currently sold out. If available, you can choose a different color or size, or go back to the previous page.

Questions and Answers

Aluminum
Shimano Deore
27.5"
Diamond
Disc Brakes
Fuel EX 5 is a full-suspension trail bike that's ready to handle it all. With trail-taming 140mm front and 130mm rear suspension, a Shimano 1x12 drivetrain, a dropper post for getting low on descents, and hydraulic disc brakes, the Fuel EX 5 hits the mark as a high-value, high-performance mountain bike with exceptional versatility.

Brakes

  • Brake Shimano hydraulic disc, MT201 lever, MT200 caliper
  • Rotors Shimano RT56, 6-bolt, 180mm

Cockpit

  • StemBontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length
  • Headset Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
  • Handlebar Bontrager alloy, 31.8mm, 15mm rise, 750mm width
  • GripsBontrager XR Trail Comp, nylon lock-on

General

  • Weight*M - 15.70 kg / 34.62 lbs
  • Frame Alpha Platinum Aluminum, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

Groupset

  • Cassette Shimano Deore M6100, 10-51, 12 speed
  • GearingShimano Deore M6100
  • CrankShimano MT511, 30T steel ring, 52mm chainline, Size XS , S , M , ML , L: 170mm length, Size M , ML , L , XL , XXL: 175mm length
  • Shifters Shimano Deore M6100, 12 speed
  • Bottom Bracket Shimano MT500, 92mm, PressFit
  • Rear Derailleur Shimano Deore M6100, long cage
  • Chain / Belt Shimano Deore M6100, 12 speed

Wheels & Tires

  • Spokes 14g stainless steel, black
  • Front Hub Bontrager alloy, 6-bolt, Boost110, 15mm thru axle
  • Tires, Size XS , S: Bontrager XR4 Comp, wire bead, 30 tpi, 27.5x2.60'', Size S , M , ML , L , XL , XXL: Maxxis Rekon EXO, wire bead, 60 tpi, 29x2.60'' / Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60'' *
  • Rear HubBontrager alloy, loose ball bearing, alloy axle, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle / Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle *
  • Rear AxisBontrager Switch thru axle, removable lever
  • Wheels Alex MD35, tubeless compatible, 32-hole, 35mm width, Presta valve

Saddle

  • Saddle Bontrager Arvada, steel rails, 138mm width
  • Seat PostTranzX JD-YSP18, internal routing, 31.6mm, Size XS , S: 100mm travel, 361mm length, Size M , ML , L , XL , XXL: 130mm travel, 425mm length

Suspension

  • Fork typesuspension fork
  • Front suspension140mm
  • ShockX-Fusion Pro 2, 2-position damper, Size XS , S: 210mm x 52.5mm, Size S , M , ML , L , XL , XXL: 210mm x 55mm
  • Fork ManufacturerRockShox
  • Fork RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, Maxle Stealth, 140mm travel

Note on Product Images, Product Description and Specifications

Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components.

Images used on the product pages may partly be sample images and may deviate from the actual configuration. The specified specifications are solely decisive for the scope of delivery and the specific product design.

The specified model year corresponds to the model series defined by the manufacturer and not necessarily to the year of manufacture. Since some models are produced unchanged over several years, the actual year of manufacture may vary. Regardless of this, you will receive a current product in accordance with the specified specifications.

Product descriptions may be partly automatically generated. Despite careful checking, errors cannot be completely ruled out. The product description is therefore not binding; in this case, too, only the specifications are decisive.

Subject to alterations and errors.
