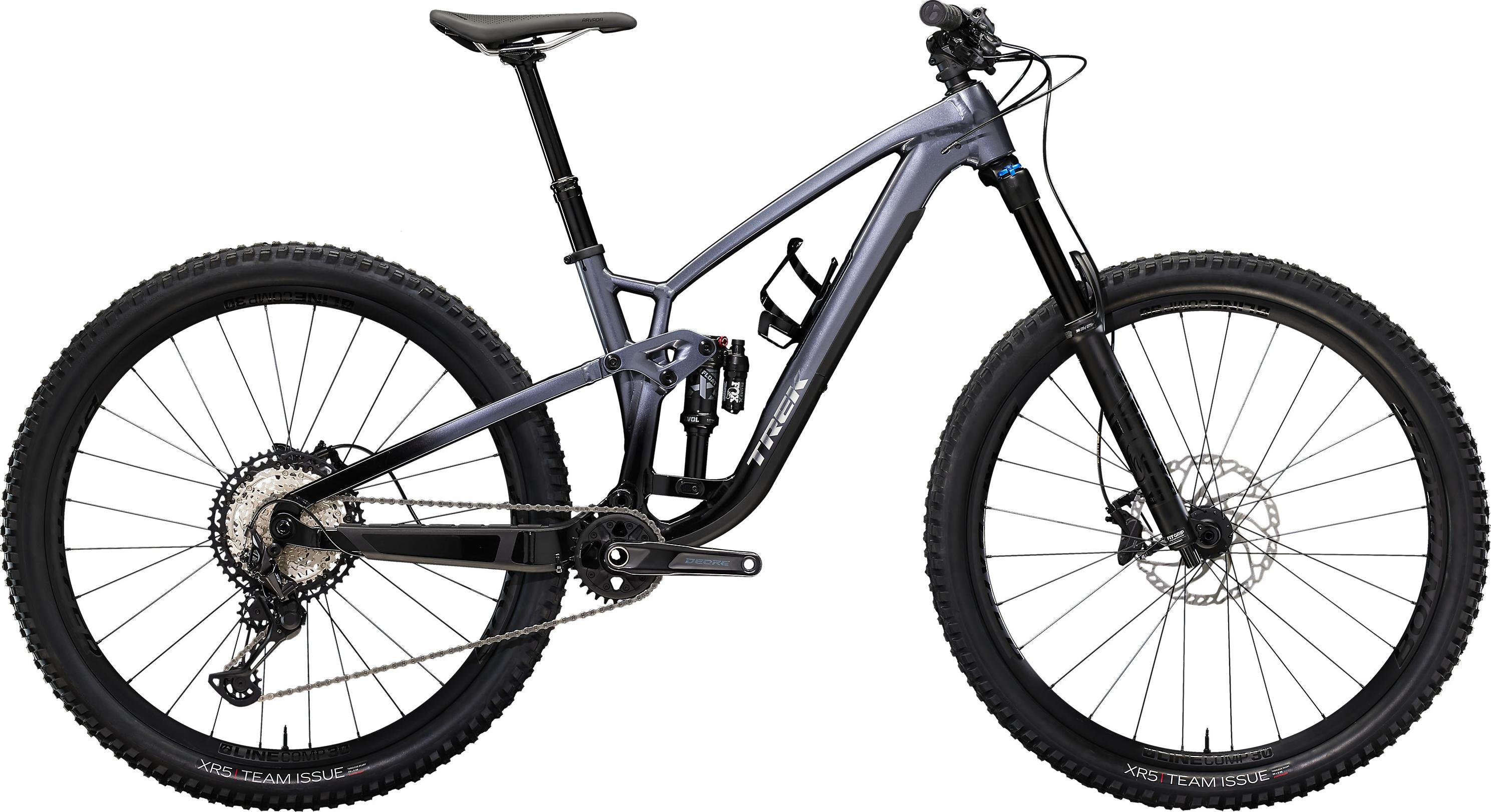

TrekFuel EX 8 Gen 6 (29")

Loading..

Unfortunately sold out.

This product variant is currently sold out. If available, you can choose a different color or size, or go back to the previous page.

Questions and Answers

Aluminum
Shimano Deore XT
29"
Diamond
Disc Brakes
Buy the trek at BikeExchange, your Marketplace for all things bike!

General

  • Weight*M - 15.65 kg / 34.51 lbs (with TLR sealant, no tubes)
  • Frame Alpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

Brakes

  • Brake Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
  • RotorsShimano RT66, 6-bolt, 180mm / Shimano RT66, 6-bolt, 203mm * | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

Wheels & Tires

  • TiresBontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, Size XS , S: 27.5x2.50'', Size S , M , ML , L , XL , XXL: 29x2.50''
  • Front WheelBontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
  • Rear WheelBontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost148, 12mm thru axle, Size XS , S: Rapid Drive 54, Size S , M , ML , L , XL , XXL: Rapid Drive 108
  • Rear AxisBontrager Switch thru axle, removable lever

Cockpit

  • StemBontrager Elite, 35mm, 0 degree, Size XS , S: 35mm length, Size M , ML , L , XL , XXL: 45mm length
  • HeadsetIntegrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
  • HandlebarBontrager Line, alloy, 35mm, 27.5mm rise, Size XS , S: 750mm width, Size M , ML , L , XL , XXL: 780mm width
  • GripsBontrager XR Trail Elite, nylon lock-on

Groupset

  • Cassette Shimano XT M8100, 10-51, 12 speed
  • GearingShimano Deore XT
  • Crank Shimano Deore M6120, 30T ring, 55mm chainline, 170mm length
  • Shifters Shimano XT M8100, 12 speed
  • Bottom Bracket Shimano BB-MT501 BSA
  • Rear Derailleur Shimano XT M8100, long cage
  • Chain / Belt Shimano SLX M7100, 12 speed

Saddle

  • Saddle Bontrager Arvada, hollow chromoly rails, 138mm width
  • Seat PostTranzX JD-YSP39, internal routing, 34.9mm, Size XS , S: 100mm travel, Size M , ML: 150mm travel, Size L , XL , XXL: 170mm travel

Suspension

  • Fork typesuspension fork
  • Front suspension140mm
  • Shock Fox Performance Float X, 2-position damper, 185mm x 55mm
  • Fork ManufacturerFox
  • ForkFox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, Size XS , S: 140mm travel, Size S , M , ML , L , XL , XXL: 150mm travel

Note on Product Images, Product Description and Specifications

Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components.

Images used on the product pages may partly be sample images and may deviate from the actual configuration. The specified specifications are solely decisive for the scope of delivery and the specific product design.

The specified model year corresponds to the model series defined by the manufacturer and not necessarily to the year of manufacture. Since some models are produced unchanged over several years, the actual year of manufacture may vary. Regardless of this, you will receive a current product in accordance with the specified specifications.

Product descriptions may be partly automatically generated. Despite careful checking, errors cannot be completely ruled out. The product description is therefore not binding; in this case, too, only the specifications are decisive.

Subject to alterations and errors.
