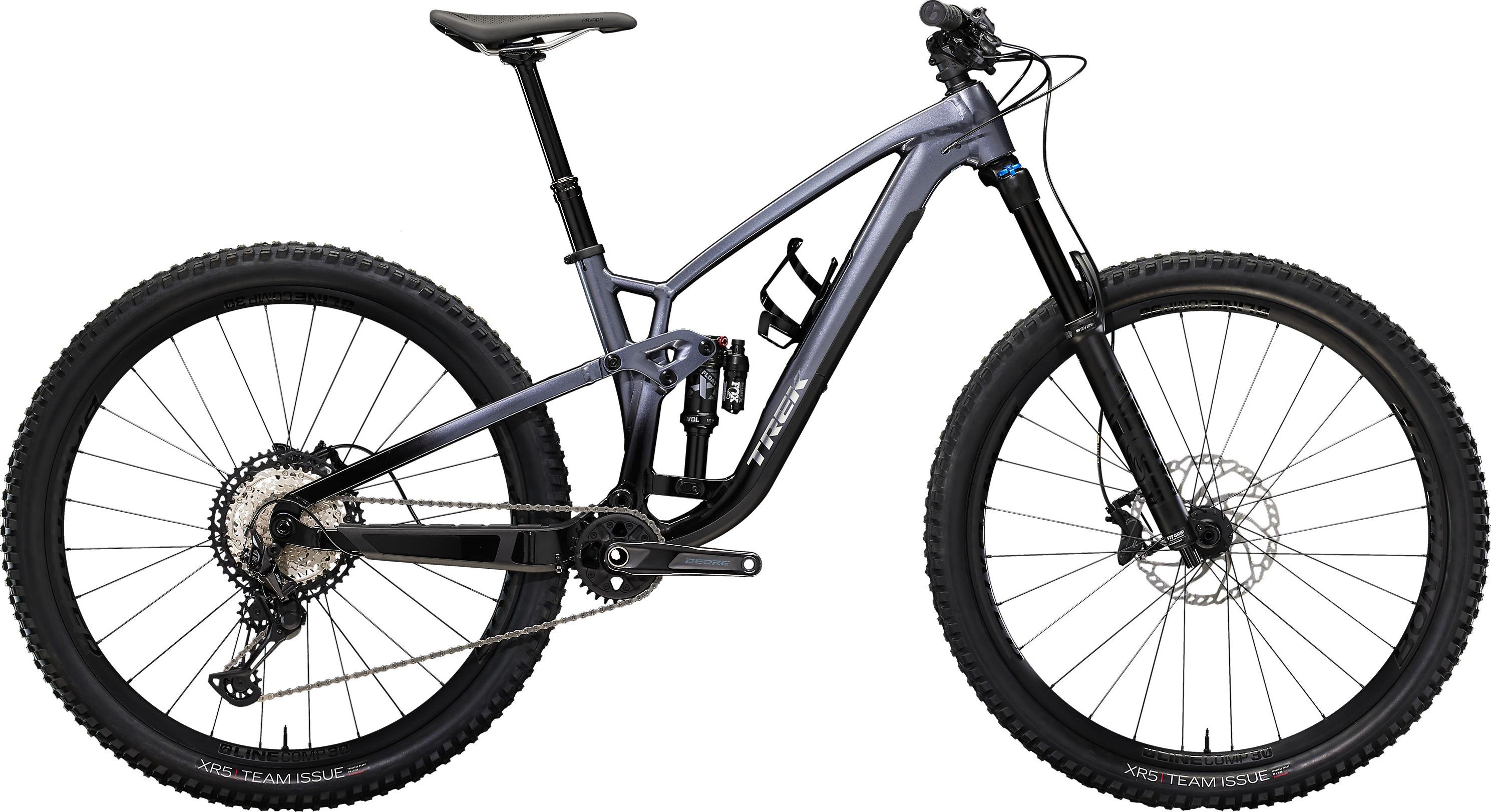

TrekFuel EX 8 Gen 6 (29")

Loading..

Questions and Answers

Aluminum
Shimano Deore XT
29"
Diamond
Disc Brakes
Buy the trek at BikeExchange, your Marketplace for all things bike!

Brakes

  • RotorsShimano RT66, 6-bolt, 180mm / Shimano RT66, 6-bolt, 203mm * | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer
  • Brake Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper

    • Cockpit

  • StemBontrager Elite, 35mm, 0 degree, Size XS , S: 35mm length, Size M , ML , L , XL , XXL: 45mm length
  • GripsBontrager XR Trail Elite, nylon lock-on
  • HandlebarBontrager Line, alloy, 35mm, 27.5mm rise, Size XS , S: 750mm width, Size M , ML , L , XL , XXL: 780mm width
  • HeadsetIntegrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible

    • General

  • Frame Alpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard
  • Weight*M - 15.65 kg / 34.51 lbs (with TLR sealant, no tubes)
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

    • Groupset

  • Chain / Belt Shimano SLX M7100, 12 speed
  • Crank Shimano Deore M6120, 30T ring, 55mm chainline, 170mm length
  • Shifters Shimano XT M8100, 12 speed
  • Bottom Bracket Shimano BB-MT501 BSA
  • Rear Derailleur Shimano XT M8100, long cage
  • Cassette Shimano XT M8100, 10-51, 12 speed
  • GearingShimano Deore XT

    • Wheels & Tires

  • Rear AxisBontrager Switch thru axle, removable lever
  • TiresBontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, Size XS , S: 27.5x2.50'', Size S , M , ML , L , XL , XXL: 29x2.50''
  • Rear WheelBontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost148, 12mm thru axle, Size XS , S: Rapid Drive 54, Size S , M , ML , L , XL , XXL: Rapid Drive 108
  • Front WheelBontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle

    • Saddle

  • Saddle Bontrager Arvada, hollow chromoly rails, 138mm width
  • Seat PostTranzX JD-YSP39, internal routing, 34.9mm, Size XS , S: 100mm travel, Size M , ML: 150mm travel, Size L , XL , XXL: 170mm travel

    • Suspension

  • Shock Fox Performance Float X, 2-position damper, 185mm x 55mm
  • ForkFox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, Size XS , S: 140mm travel, Size S , M , ML , L , XL , XXL: 150mm travel
  • Fork typesuspension fork
  • Front suspension140mm
  • Fork ManufacturerFox
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. Errors and omissions excepted.
