TrekFuel EX 8 GX AXS T-Type Gen 6 29"

Loading..

Unfortunately sold out.

This product variant is currently sold out. If available, you can choose a different color or size, or go back to the previous page.

Questions and Answers

Aluminum
SRAM GX Eagle AXS
29"
Diamond
Disc Brakes

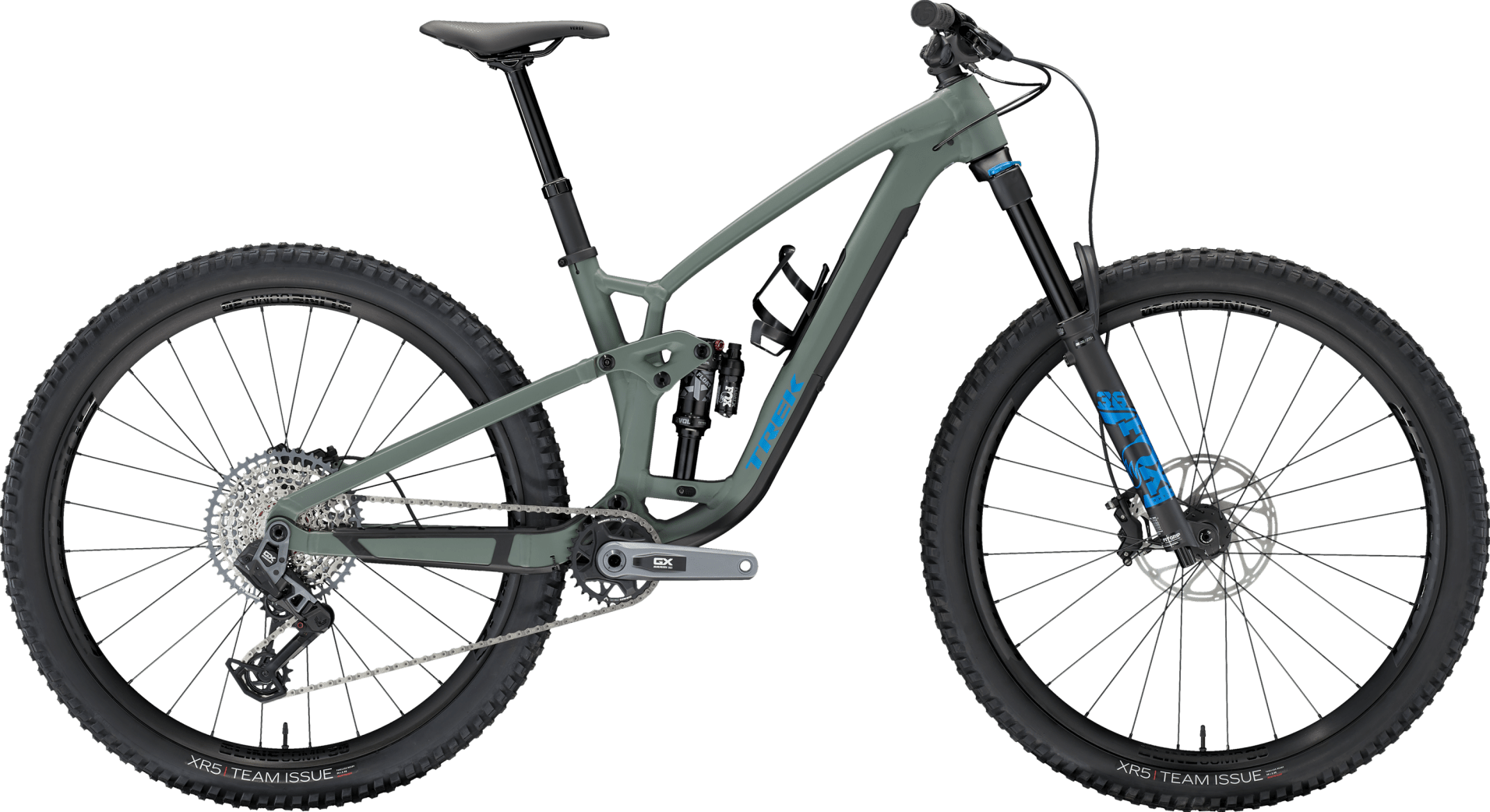

Experience the exhilaration of mountain biking with the Trek Fuel EX 8 GX AXS T-Type Gen 6 29, a well-balanced trail bike designed for both intermediate and ambitious riders. Built for tackling technical terrain while also delivering a smooth ride on the straights, this unisex mountain bike brings seamless functionality paired with impressive design, making it an excellent choice for those who lov ...Read more

General

  • Weight*M - 15.70 kg / 34.62 lbs (with TLR sealant, no tubes)
  • FrameAlpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

Brakes

  • BrakeSRAM DB 8 4-piston hydraulic disc
  • RotorsSRAM CenterLine, 6-bolt, round edge, 180mm / SRAM CenterLine, 6-bolt, round edge, 200mm * | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

Wheels & Tires

  • TiresBontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, Size XS , S: 27.5x2.50'', Size S , M , ML , L , XL , XXL: 29x2.50''
  • Front WheelBontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
  • Rear WheelBontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
  • Rear AxisBontrager Switch thru axle, removable lever

Cockpit

  • StemBontrager Elite, 35mm, 0 degree, Size XS , S: 35mm length, Size M , ML , L , XL , XXL: 45mm length
  • HeadsetIntegrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
  • HandlebarBontrager Line, alloy, 35mm, 27.5mm rise, Size XS , S: 750mm width, Size M , ML , L , XL , XXL: 780mm width
  • GripsBontrager XR Trail Elite, nylon lock-on

Groupset

  • CrankSRAM GX Eagle, T-Type, DUB, 30T, 55mm chainline, 170mm length
  • CassetteSRAM Eagle XS-1275, T-Type,10-52, 12 speed
  • GearingSRAM GX Eagle AXS
  • ShiftersSRAM Eagle AXS POD
  • Bottom BracketSRAM DUB MTB Wide, 73mm, BSA threaded
  • Rear DerailleurSRAM GX Eagle AXS, T-Type
  • Chain / BeltSRAM GX Eagle, T-Type, 12 speed

Saddle

  • SaddleBontrager Verse P3, chromoly rails
  • Seat PostBontrager Line Dropper, MaxFlow, internal routing, 34.9mm, Size XS , S: 100mm travel, 310mm length, Size M , ML: 150mm travel, 410mm length, Size L , XL , XXL: 170mm travel, 450mm length

Suspension

  • ShockFox Performance Float X, 2-position damper, 185mm x 55mm
  • ForkFox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, Size XS , S: 140mm travel, Size S , M , ML , L , XL , XXL: 150mm travel

Note on Product Images, Product Description and Specifications

Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components.

Images used on the product pages may partly be sample images and may deviate from the actual configuration. The specified specifications are solely decisive for the scope of delivery and the specific product design.

The specified model year corresponds to the model series defined by the manufacturer and not necessarily to the year of manufacture. Since some models are produced unchanged over several years, the actual year of manufacture may vary. Regardless of this, you will receive a current product in accordance with the specified specifications.

Product descriptions may be partly automatically generated. Despite careful checking, errors cannot be completely ruled out. The product description is therefore not binding; in this case, too, only the specifications are decisive.

Subject to alterations and errors.
