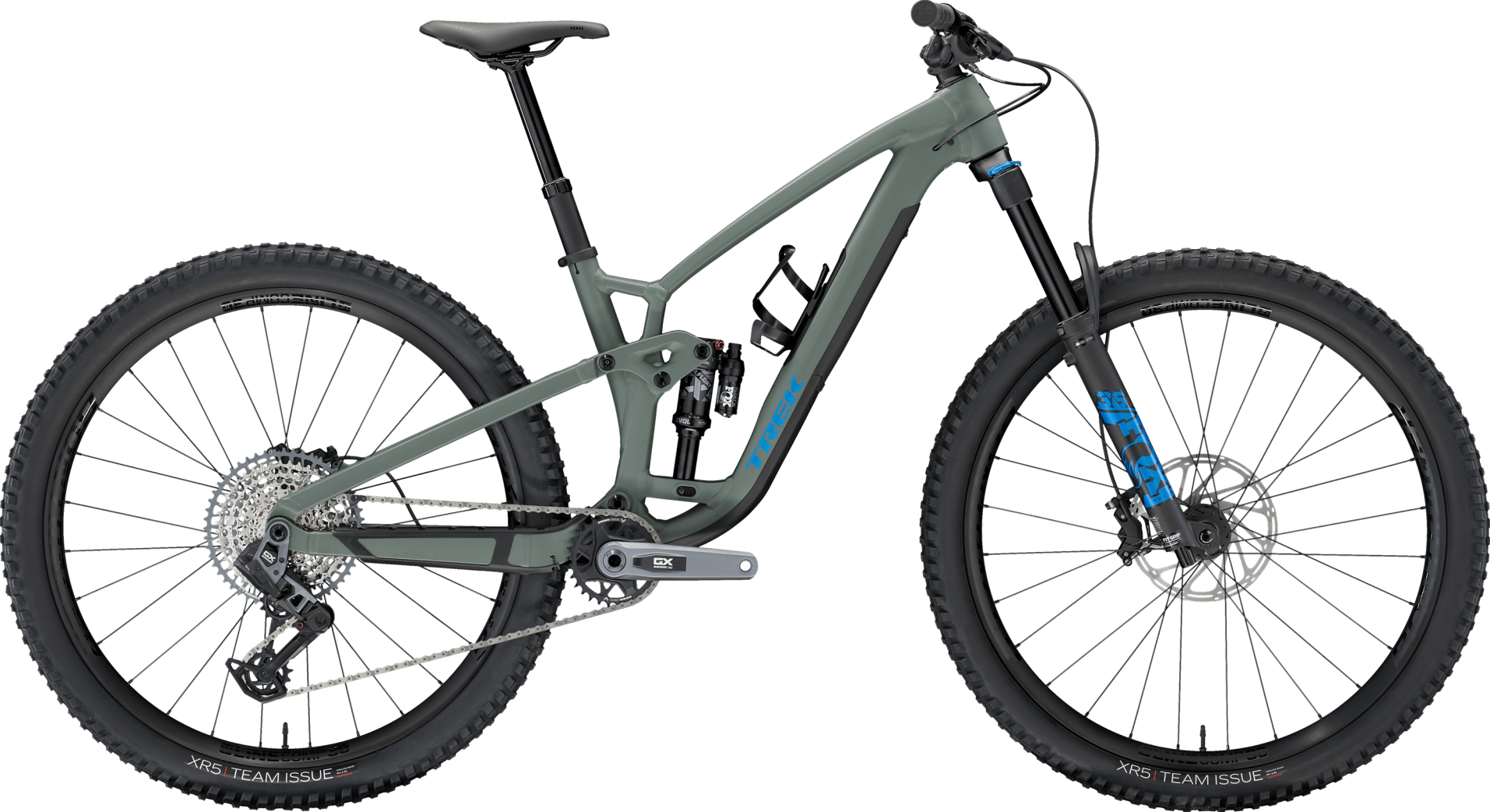

Trek Fuel EX 8 GX AXS T-Type Gen 6 (29") 2025

|||

2025

2025

Aluminum

SRAM GX Eagle AXS

29"

Diamond

Disc Brakes

Introducing the Trek Fuel EX 8 GX AXS T-Type Gen 6 (29"), your new full-suspension mountain bike for adventurous rides. This versatile bike boasts high-quality features, such as the diamond-shaped Alpha Platinum aluminum frame with integrated storage and adjustable progression, providing exceptional stability. The durable and responsive Bontrager Line Comp 30 wheels are tubeless-ready, delivering ...Read more

Brakes

RotorsSRAM CenterLine, 6-bolt, round edge, 180mm / SRAM CenterLine, 6-bolt, round edge, 200mm * | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

BrakeSRAM DB 8 4-piston hydraulic disc

Cockpit

StemBontrager Elite, 35mm, 0 degree, Size XS , S: 35mm length, Size M , ML , L , XL , XXL: 45mm length

HeadsetIntegrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible

GripsBontrager XR Trail Elite, nylon lock-on

HandlebarBontrager Line, alloy, 35mm, 27.5mm rise, Size XS , S: 750mm width, Size M , ML , L , XL , XXL: 780mm width

General

FrameAlpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard

Weight*M - 15.70 kg / 34.62 lbs (with TLR sealant, no tubes)

Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

Groupset

Chain / BeltSRAM GX Eagle, T-Type, 12 speed

CrankSRAM GX Eagle, T-Type, DUB, 30T, 55mm chainline, 170mm length

CassetteSRAM Eagle XS-1275, T-Type,10-52, 12 speed

ShiftersSRAM Eagle AXS POD

Bottom BracketSRAM DUB MTB Wide, 73mm, BSA threaded

Rear DerailleurSRAM GX Eagle AXS, T-Type

GearingSRAM GX Eagle AXS

Wheels & Tires

TiresBontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, Size XS , S: 27.5x2.50'', Size S , M , ML , L , XL , XXL: 29x2.50''

Rear AxisBontrager Switch thru axle, removable lever

Rear WheelBontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle

Front WheelBontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle

Saddle

SaddleBontrager Verse P3, chromoly rails

Seat PostBontrager Line Dropper, MaxFlow, internal routing, 34.9mm, Size XS , S: 100mm travel, 310mm length, Size M , ML: 150mm travel, 410mm length, Size L , XL , XXL: 170mm travel, 450mm length

Suspension

ShockFox Performance Float X, 2-position damper, 185mm x 55mm

ForkFox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, Size XS , S: 140mm travel, Size S , M , ML , L , XL , XXL: 150mm travel

Disclaimer

Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. The specified model year corresponds to the model series defined by the manufacturer and not necessarily the year of manufacture. As some models are produced unchanged over several years, the year of manufacture may vary. Irrespective of this, you will receive a current product in accordance with the stated specifications. Errors and omissions are excepted.
