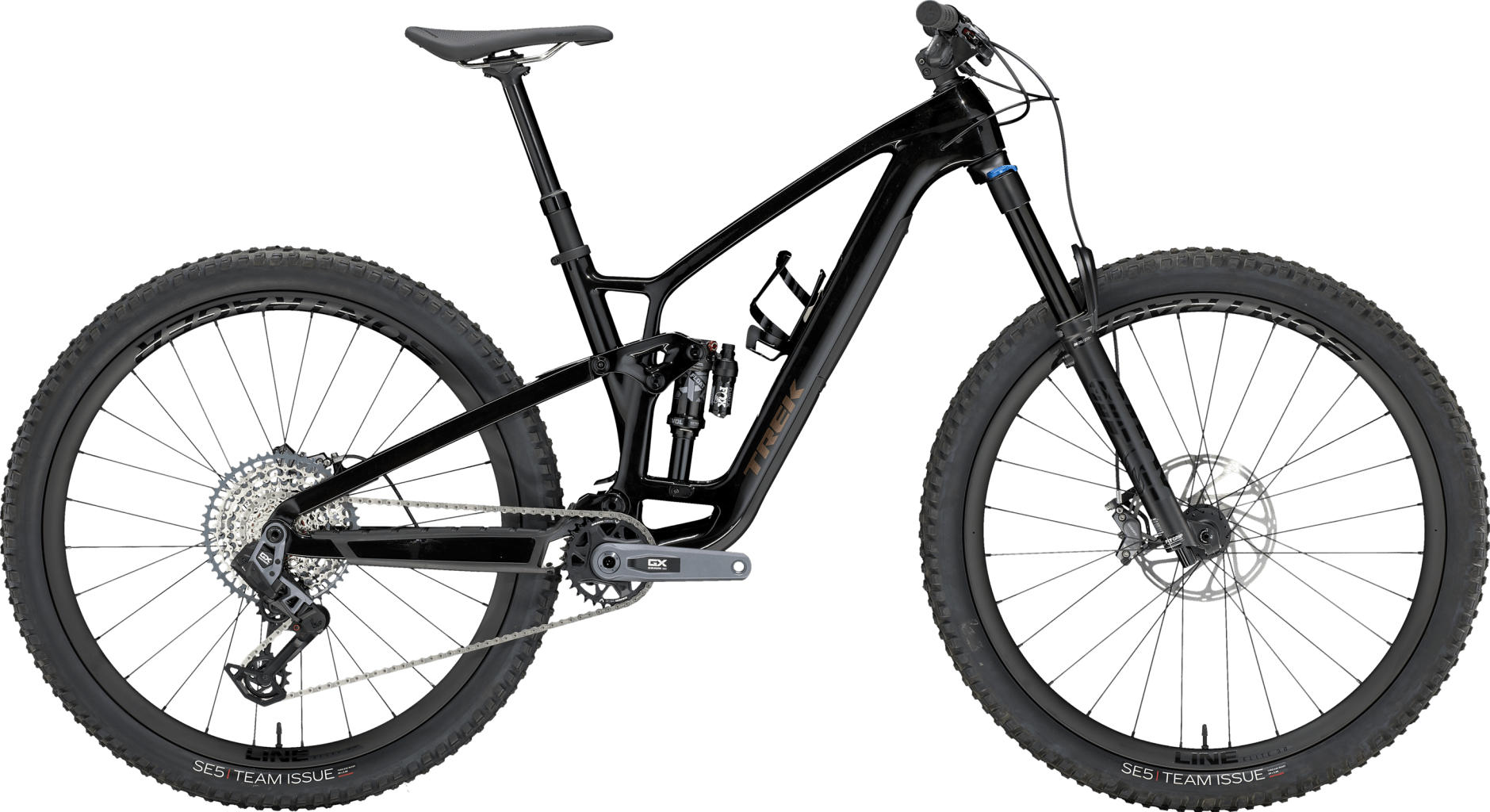

TrekFuel EX 9.8 GX AXS T-Type Gen 6 27.5"

Loading..

Unfortunately sold out.

This product variant is currently sold out. If available, you can choose a different color or size, or go back to the previous page.

Questions and Answers

Carbon
SRAM GX Eagle AXS
27.5"
Diamond
Disc Brakes
Introducing the Trek Fuel EX 9.8 GX AXS T-Type Gen 6, a mountain bike engineered for ambitious riders ready to tackle diverse terrains with confidence. With its robust 27.5-inch wheels, this bike promises a responsive and agile ride, making it perfect for both climbing and descending challenging trails. Designed for those who crave adventure, this bike combines top-notch technology with a rider-fo ...Read more

Brakes

  • BrakeSRAM CODE Bronze 4-piston hydraulic disc
  • RotorsSRAM CenterLine, 6-bolt, round edge, Size XS , S , M , ML , L , XL: 180mm, Size M , ML , L , XL: 200mm | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

Cockpit

  • StemBontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, Size XS , S: 35mm stem length, Size M , ML , L , XL: 45mm stem length
  • HeadsetIntegrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
  • GripsBontrager XR Trail Elite, nylon lock-on

General

  • Weight*M - 14.35 kg / 31.64 lbs (with TLR sealant, no tubes)
  • FrameOCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

Groupset

  • CrankSRAM GX Eagle, T-Type, DUB, 30T, 55mm chainline, 170mm length
  • CassetteSRAM Eagle XS-1275, T-Type,10-52, 12 speed
  • GearingSRAM GX Eagle AXS
  • ShiftersSRAM Eagle AXS POD
  • Bottom BracketSRAM DUB MTB Wide, 73mm, BSA threaded
  • Rear DerailleurSRAM GX Eagle AXS, T-Type
  • Chain / BeltSRAM GX Eagle, T-Type, 12 speed

Wheels & Tires

  • TiresBontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, Size XS , S: 27.5x2.50'', Size S , M , ML , L , XL: 29x2.50''
  • Front WheelBontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
  • Rear WheelBontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle
  • Rear AxisBontrager Switch thru axle, removable lever

Saddle

  • SaddleBontrager Arvada, austenite rails, 138mm width
  • Seat PostBontrager Line Elite Dropper, MaxFlow, internal routing, 34.9mm, Size XS , S: 100mm travel, 345mm length, Size M , ML: 150mm travel, 440mm length, Size L: 170mm travel, 485mm length, Size XL: 200mm travel, 550mm length

Suspension

  • ShockFox Performance Float X, 2-position damper, 185mm x 55mm
  • ForkFox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel

Note on Product Images, Product Description and Specifications

Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components.

Images used on the product pages may partly be sample images and may deviate from the actual configuration. The specified specifications are solely decisive for the scope of delivery and the specific product design.

The specified model year corresponds to the model series defined by the manufacturer and not necessarily to the year of manufacture. Since some models are produced unchanged over several years, the actual year of manufacture may vary. Regardless of this, you will receive a current product in accordance with the specified specifications.

Product descriptions may be partly automatically generated. Despite careful checking, errors cannot be completely ruled out. The product description is therefore not binding; in this case, too, only the specifications are decisive.

Subject to alterations and errors.
