Fuel EXe 5

|||

2025

2025

Aluminum

360

Shimano Deore

29"

Diamond

Disc Brakes

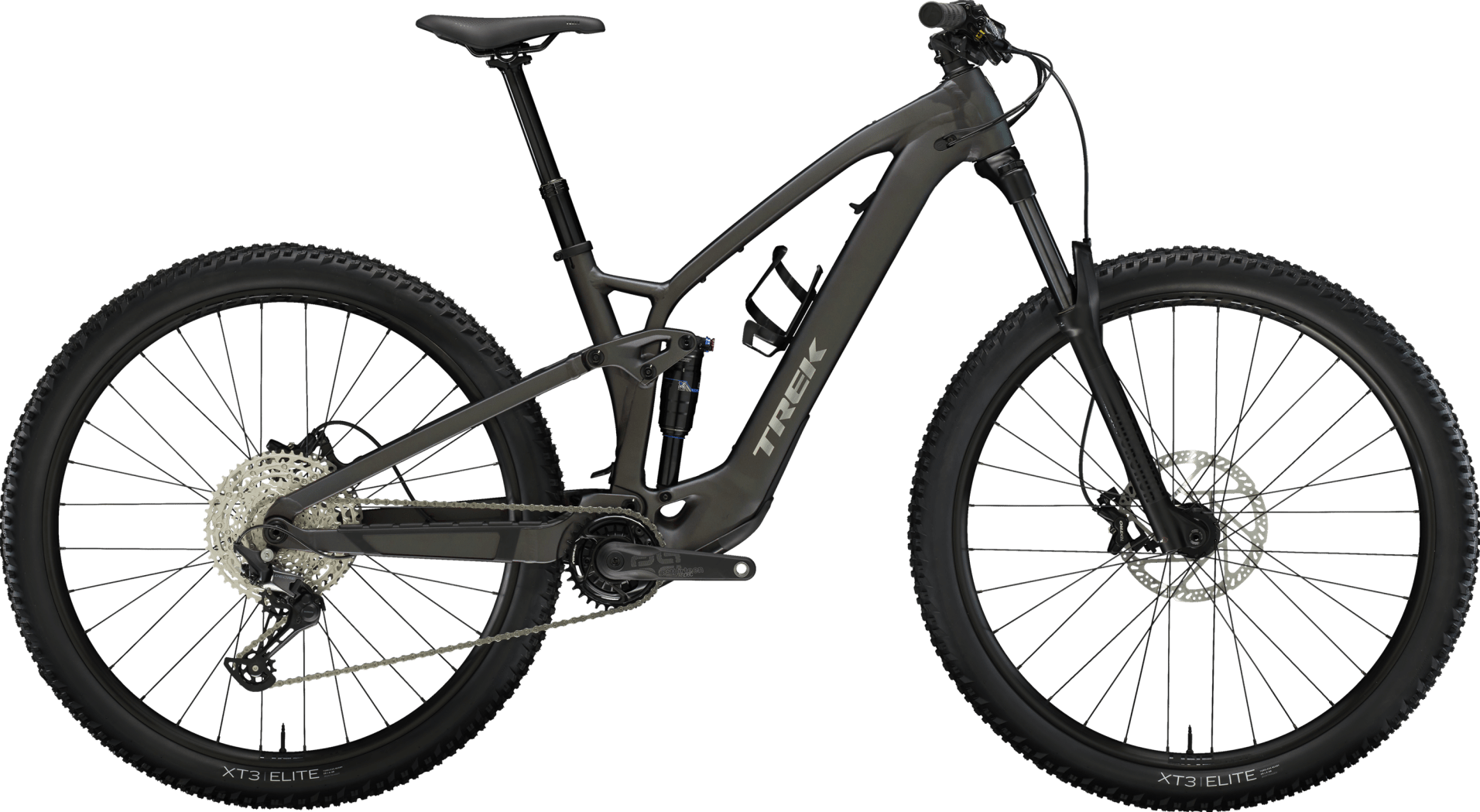

Get ready to take your off-road adventures to the next level with the Trek Fuel EXe 5 2024 electric mountain bike. This unisex e-MTB blends power, agility, and performance for both new riders and seasoned cyclists alike. Built with a sturdy Alpha Platinum Aluminum frame, it features a removable battery and an internal routing system, providing a clean and streamlined look while keeping your cables ...Read more

General

FrameAlpha Platinum Aluminum, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
Weight*M - 20.80 kg / 45.86 lbs (with TLR sealant, no tubes)
Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

Brakes

BrakeTektro HD-M745 hydraulic disc
RotorsTektro, 6-bolt, 203mm | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

Wheels & Tires

TiresBontrager XT3 Elite, wire bead, 60 tpi, 29x2.40''
WheelsBontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve
Rear HubBontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Front HubBontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
Rear AxisBontrager Switch thru axle, removable lever

Cockpit

StemBontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
GripsBontrager XR Trail Comp, nylon lock-on
DisplayTQ LED display with Bluetooth & ANT+ connectivity
HeadsetIntegrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
HandlebarBontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width

Motor & Battery

MotorTQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
BatteryTQ 360Wh

Groupset

Chain / BeltShimano Deore M6100, 12 speed
CrankE*thirteen E*spec Plus, 165mm length
CassetteShimano Deore M6100, 10-51, 12 speed
ShiftersShimano Deore M6100, 12 speed
ChainringsE*thirteen E*spec, 32T alloy ring, 55mm chainline
Rear DerailleurShimano Deore M6100, long cage
GearingShimano Deore

Saddle

SaddleBontrager Arvada, steel rails, 138mm width
Seat PostTranzX JD-YSI-22PLQ, internal routing, 34.9mm, Size S: 100mm travel, 346mm length, Size M: 150mm travel, 454mm length, Size L, XL: 170mm travel, 497mm length

Suspension

ForkRockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, Maxle Stealth, 150mm travel
ShockX-Fusion Pro 2, 2-position damper, 205mm x 60mm

Disclaimer

Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. The specified model year corresponds to the model series defined by the manufacturer and not necessarily the year of manufacture. As some models are produced unchanged over several years, the year of manufacture may vary. Irrespective of this, you will receive a current product in accordance with the stated specifications. Errors and omissions are excepted.
