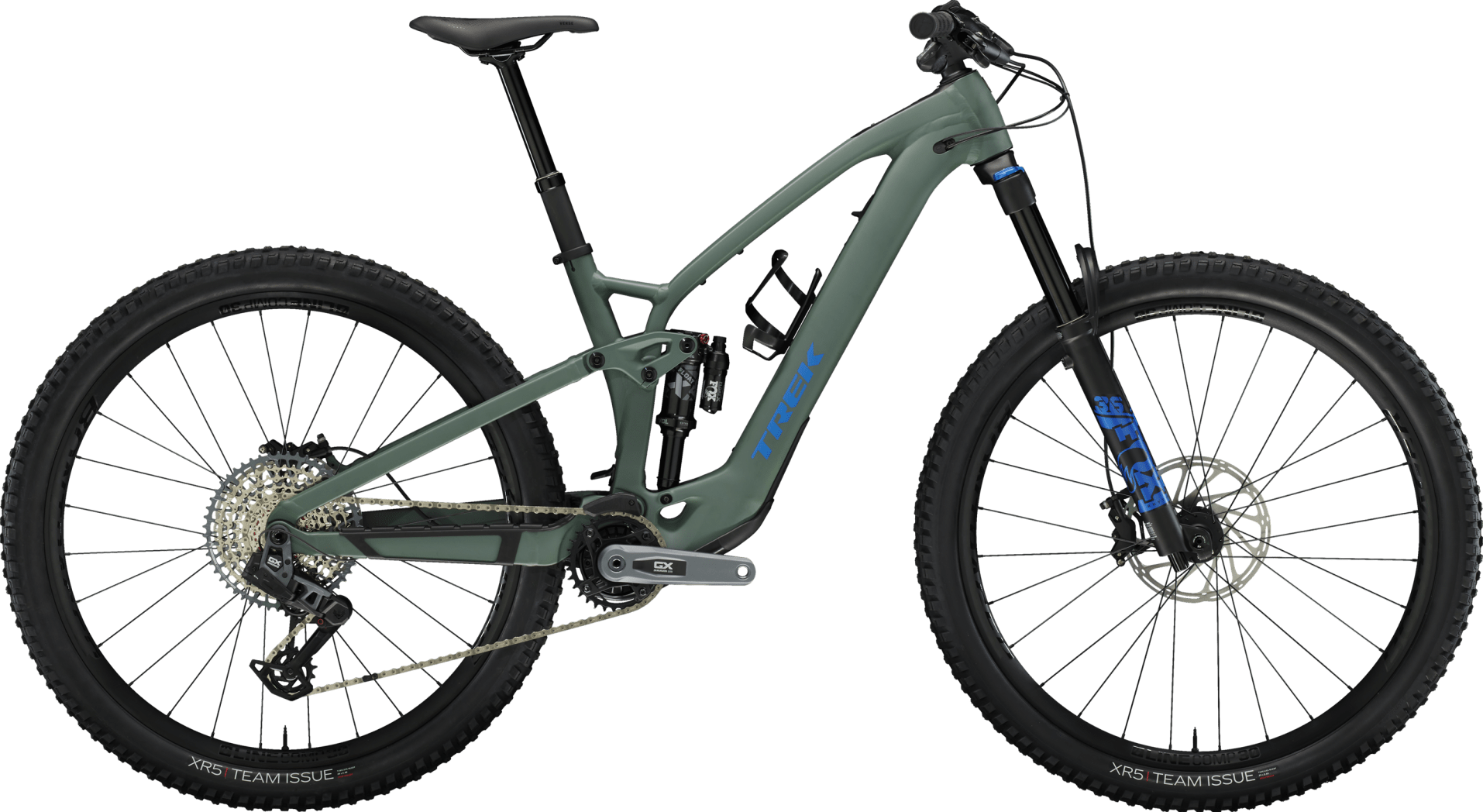

TrekFuel EXe 8 GX AXS T-Type

Loading..

Questions and Answers

Aluminum
360
TQ
SRAM GX Eagle AXS
29"
Diamond
Disc Brakes
Introducing the Trek Fuel EXe 8 GX AXS T-Type 2024, the perfect electric mountain bike for those who crave adventure on the trails without compromising on performance. This bike is designed to cater to the needs of both beginner and experienced riders who want to elevate their mountain biking experience. With a sturdy Alpha Platinum Aluminum frame, this bike offers a solid foundation that is built ...Read more

General

  • FrameAlpha Platinum Aluminum, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
  • Weight*M - 20.25 kg / 44.65 lbs (with TLR sealant, no tubes)
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

    • Brakes

  • BrakeSRAM DB 8 4-piston hydraulic disc
  • RotorsSRAM CenterLine, 6-bolt, round edge, 200mm | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

    • Wheels & Tires

  • TiresBontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50''
  • Rear AxisBontrager Switch thru axle, removable lever
  • Rear WheelBontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
  • Front WheelBontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle

    • Cockpit

  • StemBontrager Elite, 35mm, 0 degree, 45mm length
  • GripsBontrager XR Trail Elite, nylon lock-on
  • DisplayTQ LED display with Bluetooth & ANT+ connectivity
  • HeadsetIntegrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
  • HandlebarBontrager Line, alloy, 35mm, 27.5mm rise, 780mm width

    • Motor & Battery

  • MotorTQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
  • BatteryTQ 360Wh

    • Groupset

  • Chain / BeltSRAM GX Eagle, T-Type, 12 speed
  • CrankSRAM GX, 165mm length
  • CassetteSRAM Eagle XS-1275, T-Type,10-52, 12 speed
  • ShiftersSRAM Eagle AXS POD
  • ChainringsSRAM X-SYNC 2, 32T, alloy
  • Rear DerailleurSRAM GX Eagle AXS, T-Type
  • GearingSRAM GX Eagle AXS

    • Saddle

  • SaddleBontrager Arvada, hollow chromoly rails, 138mm width
  • Seat PostBontrager Line Dropper, MaxFlow, internal routing, 34.9mm, Size S: 100mm travel, 310mm length, Size M: 150mm travel, 410mm length, Size L, XL: 170mm travel, 450mm length

    • Suspension

  • ForkFox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel
  • ShockFox Performance Float X, 2-position damper, 205mm x 60mm
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. Errors and omissions excepted.
