TrekFX 1 Stagger

Loading..

Questions and Answers

Aluminum
External Gearing
28" / 700c
Step-Through
Rim Brakes

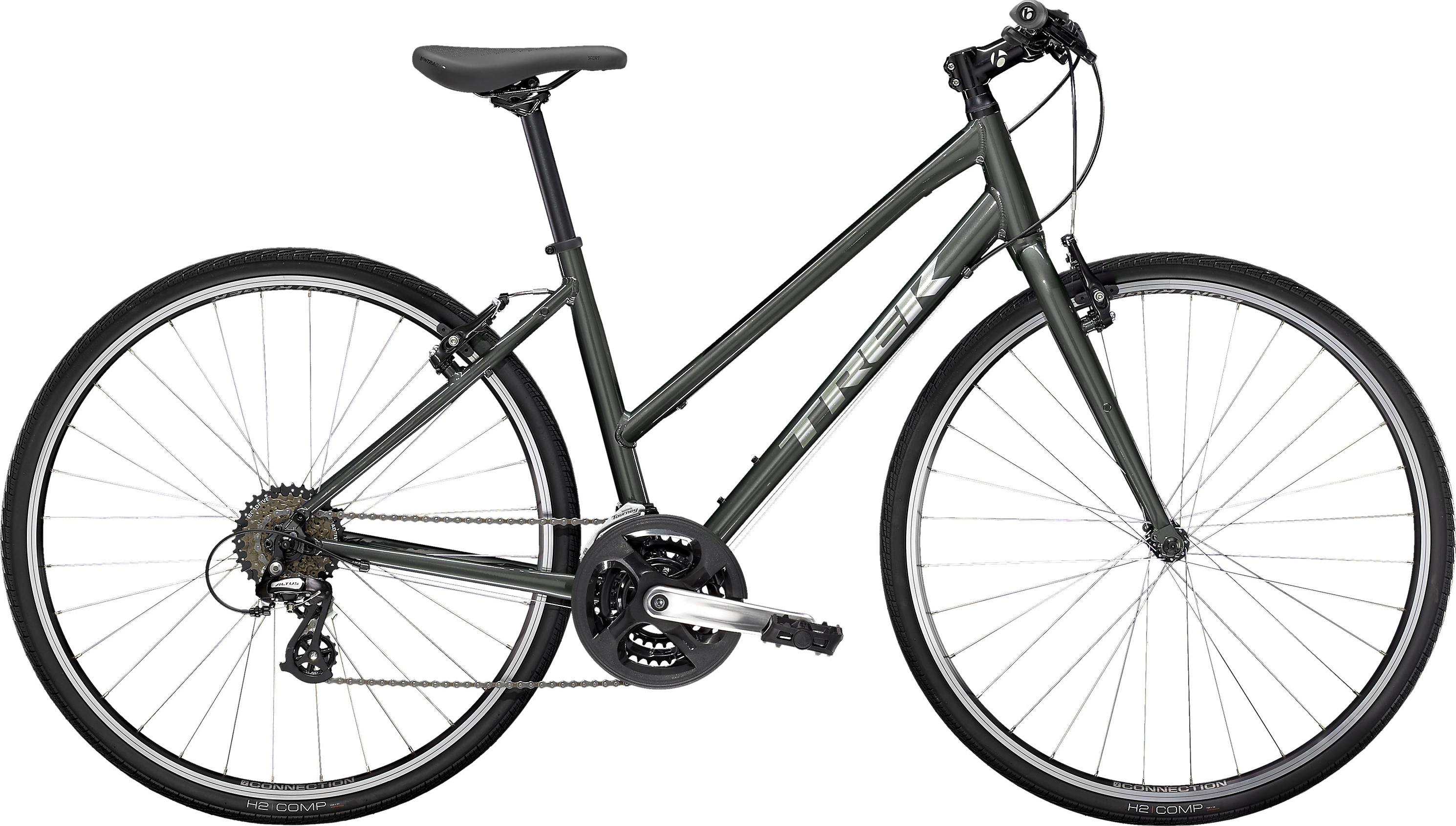

FX 1 Stagger is a hybrid bike with a lightweight aluminum frame and quality parts that perform wherever you like to ride. It's perfect for anyone looking to get out more, ride as a family, do a bit of exercise, or commute to work on a versatile bike backed by a lifetime warranty.

Brakes

  • Brake Tektro alloy linear-pull

    • Cockpit

  • Stem Bontrager alloy, 25.4mm clamp, 10 degree, 90mm length
  • Grips Bontrager Satellite
  • Headset 1 1/8'' steel threadless
  • Handlebar Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width

    • General

  • Frame Alpha Gold Aluminum, stagger top tube, rack & fender mounts, DuoTrap S compatible, cantilever brake mount, 135x5mm QR
  • Weight*M - 12.48 kg / 27.52 lbs
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

    • Groupset

  • Chain / Belt KMC Z7
  • Crank Forged alloy, 48/38/28, chainguard, 170mm length
  • Cassette 14-34, 7 speed freewheel
  • Shifters Shimano EF500, 7 speed
  • Rear Derailleur Shimano Altus M310
  • Pedals Wellgo nylon platform
  • Bottom Bracket Sealed cartridge, 68mm
  • Front Derailleur Shimano Tourney TY510, 34.9mm clamp, top swing, dual pull
  • GearingShimano Altus M310

    • Wheels & Tires

  • TiresBontrager H2 Comp, wire bead, 30 tpi, 700x35mm
  • Rear Axis152x5mm QR
  • Wheels Bontrager Connection, alloy, double-wall, 32-hole, schrader valve
  • Rear Hub Formula FM31 alloy, 135x5mm QR
  • Front Hub Formula FM21 alloy, 100x5mm QR
  • Front AxisFormula QR22

    • Saddle

  • SaddleBontrager Sport Women's
  • Seat Post Bontrager alloy, 27.2mm, 12mm offset, 330mm length

    • Suspension

  • ForkFX Steel, threadless steel steerer, rack mounts, cantilever brake mount, 405mm axle-to-crown, 5x100mm QR
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. The specified model year corresponds to the model series defined by the manufacturer and not necessarily the year of manufacture. As some models are produced unchanged over several years, the year of manufacture may vary. Irrespective of this, you will receive a current product in accordance with the stated specifications. Errors and omissions are excepted.
