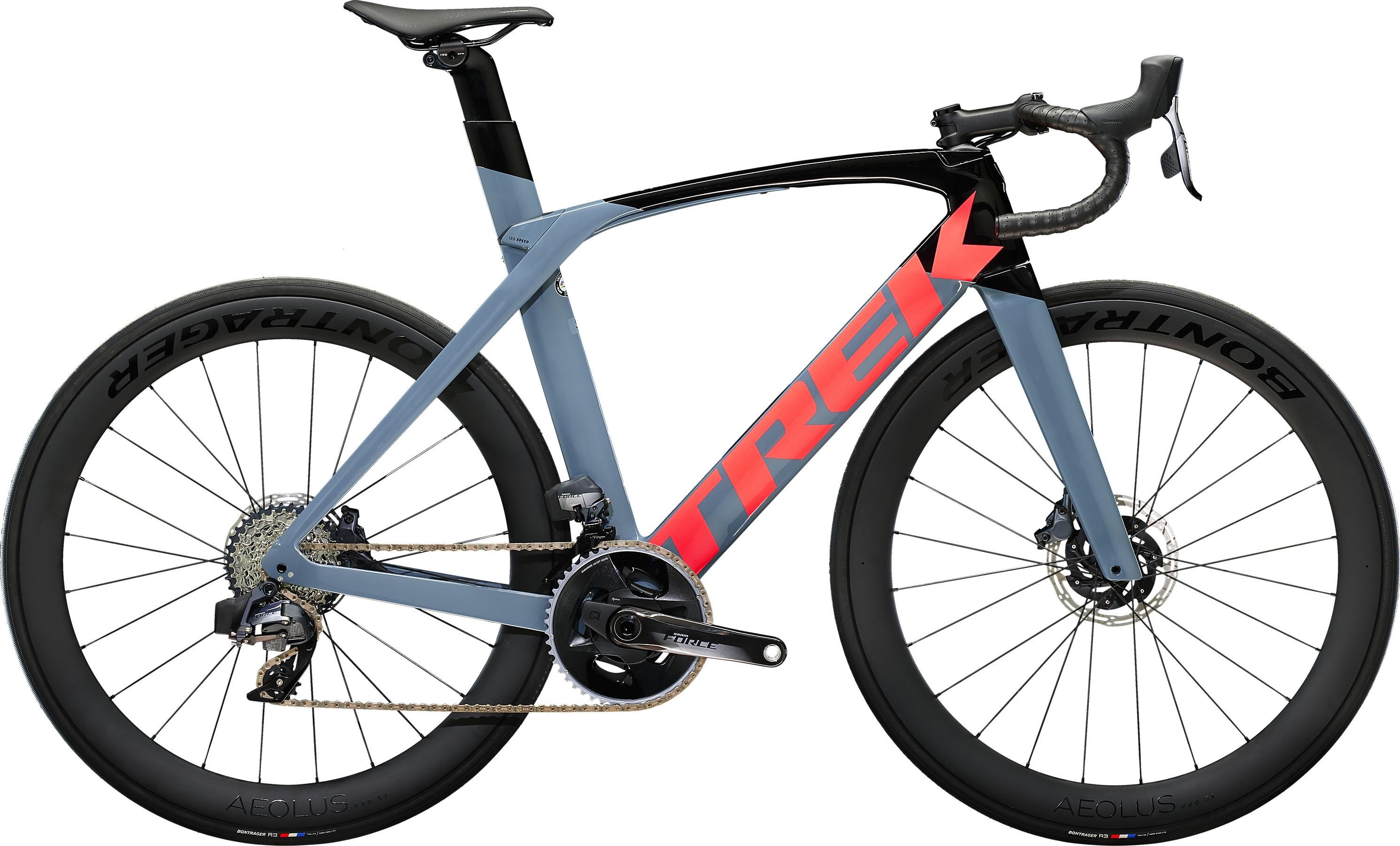

TrekMadone SL 7 AXS

Loading..

Questions and Answers

Carbon
SRAM Force eTap AXS
28" / 700c
Diamond
Disc Brakes
The Trek Madone SL 7 AXS Gen 6 is not just another road bike; it's a remarkable fusion of cutting-edge technology and aerodynamic design that's perfect for both amateur and seasoned riders looking to elevate their performance. At its heart lies the 500 Series OCLV Carbon frame, expertly crafted in the KVF (Kammtail Virtual Foil) tube shape. This design doesn't just look sleek; it’s engineered to slice ...Read more

General

  • Frame 500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, Duo Trap S compatible, 142x12mm thru axle
  • Weight*56 - 8.48 kg / 18.71 lbs
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

    • Brakes

  • Brake SRAM Force AXS hydraulic disc, flat mount
  • RotorsSRAM CenterLine X, centerlock, round edge, 160mm | Max brake rotor sizes: 160mm front & rear

    • Wheels & Tires

  • Rear Wheel Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12mm thru axle
  • Front WheelBontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
  • TiresBontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25mm
  • Rear AxisBontrager Switch thru axle, removable lever
  • Front Axis Bontrager Switch thru axle, removable lever

    • Cockpit

  • StemBontrager Pro, 31.8mm, Blendr compatible, 7 degree, Size 50: 80mm length, Size 52, 54: 90mm length, Size 56, 58: 100mm length, Size 60: 110mm length
  • Tape Bontrager Supertack Perf tape
  • HandlebarBontrager Elite Aero VR-CF, alloy, 31.8mm, invisible cable routing, 93mm reach, 123mm drop, Size 50, 52: 40cm width, Size 54, 56: 42cm width, Size 58, 60: 44cm width

    • Groupset

  • Chain / BeltSRAM Force, 12 speed
  • CrankSRAM Force AXS Power Meter, 48/35, DUB, Size 50, 52: 170mm length, Size 54, 56: 172.5mm length, Size 58, 60: 175mm length
  • Cassette SRAM Force XG-1270, 10-33, 12 speed
  • Shifters SRAM Force eTap AXS, 12 speed
  • Bottom Bracket SRAM DUB, T47 threaded, internal bearing
  • Rear Derailleur SRAM Force eTap AXS, 36T max cog
  • Front Derailleur SRAM Force eTap AXS, braze-on

    • Saddle

  • SaddleBontrager Aeolus Comp, steel rails, 145mm width
  • Seat PostMadone aero carbon internal seatmast cap, integrated light mount, 5mm offset, Size 50, 52, 54, 56: short length, Size 58, 60: tall length

    • Suspension

  • Fork Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru axle
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. The specified model year corresponds to the model series defined by the manufacturer and not necessarily the year of manufacture. As some models are produced unchanged over several years, the year of manufacture may vary. Irrespective of this, you will receive a current product in accordance with the stated specifications. Errors and omissions are excepted.
