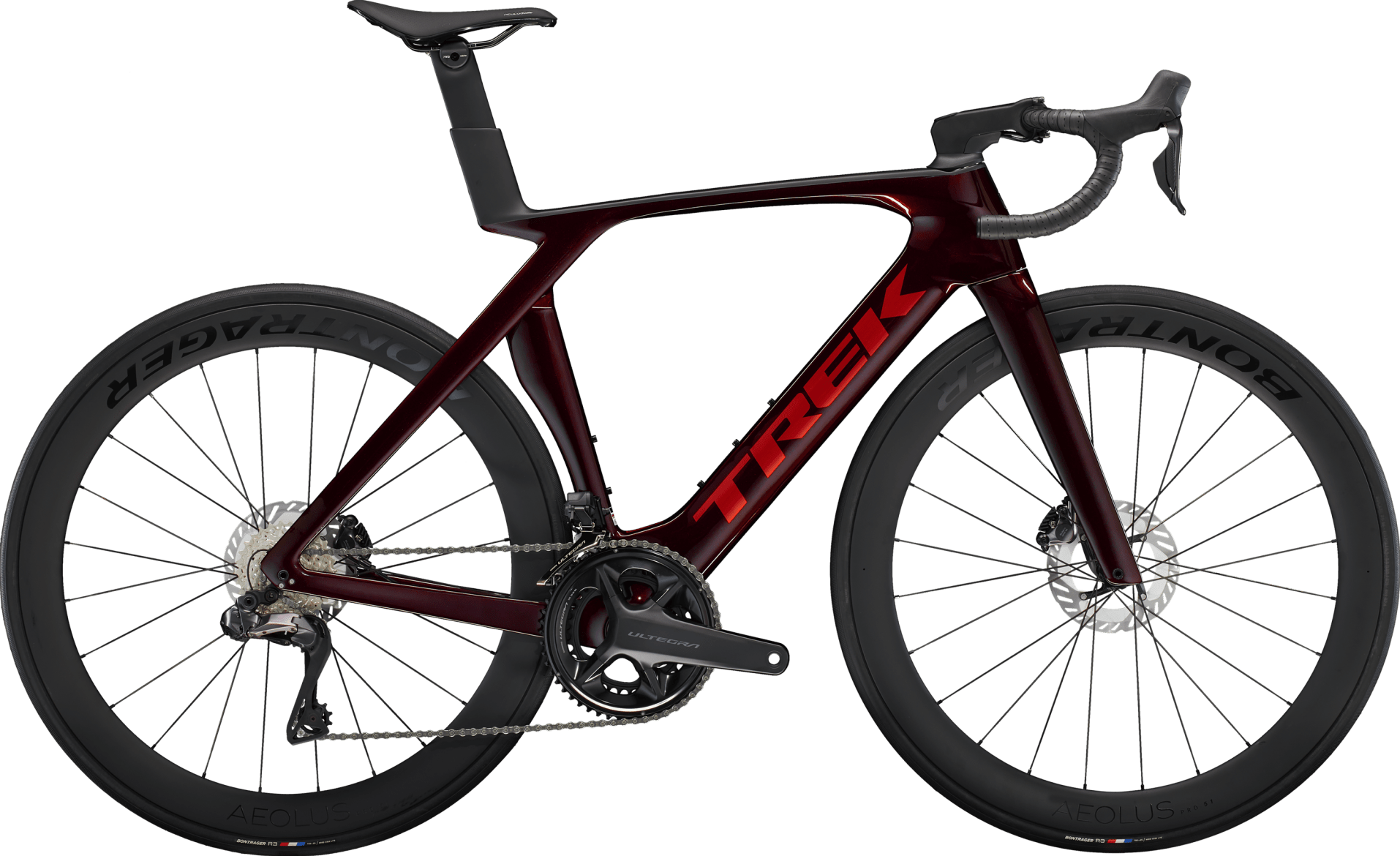

TrekMadone SL 7 Gen 7

Loading..

Questions and Answers

Carbon
Shimano Ultegra Di2
28" / 700c
Diamond
Disc Brakes
The Trek Madone SL 7 Gen 7 road bike is here to take your cycling experience to the next level, whether you’re chasing personal bests or simply enjoying a leisurely ride. Built with a lightweight and durable 500 Series OCLV Carbon frame, this bike offers unparalleled speed and performance. The KVF tube shape is precisely designed for improved aerodynamics, allowing you to slice through the wind with ...Read more

General

  • Frame500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle
  • Weight*56 - 8.00 kg / 17.64 lbs
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

    • Brakes

  • RotorsShimano CL800, centerlock, 160mm | Max brake rotor sizes: 160mm front & rear
  • BrakeShimano Ultegra hydraulic disc, flat mount

    • Wheels & Tires

  • TiresBontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25mm
  • Rear AxisBontrager Switch thru axle, removable lever
  • Rear WheelBontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12mm thru axle
  • Front WheelBontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
  • Front AxisBontrager Switch thru axle, removable lever

    • Cockpit

  • StemTrek RCS Pro, -7 degree, Size 47: 70mm length, Size 50: 80mm length, Size 52, 54: 90mm length, Size 56, 58: 100mm length, Size 60, 62: 110mm length
  • HandlebarBontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, Size 47: 35cm control width, 38cm drops width, Size 50, 52: 37cm control width, 40cm drops width, Size 54, 56: 42cm width, Size 58, 60, 62: 41cm control width
  • TapeBontrager Supertack Perf tape

    • Groupset

  • Chain / BeltShimano Ultegra/XT M8100, 12 speed
  • CrankShimano Ultegra R8100, 52/36, Size 47: 165mm length, Size 50, 52: 170mm length, Size 54, 56: 172.5mm length, Size 58, 60, 62: 175mm length
  • CassetteShimano Ultegra R8101, 11-30, 12 speed
  • ShiftersShimano Ultegra R8170 Di2, 12 speed
  • Bottom BracketPraxis, T47 threaded, internal bearing
  • Rear DerailleurShimano Ultegra R8150 Di2, 34T max cog
  • Front DerailleurShimano Ultegra R8150 Di2, braze-on, down swing
  • GearingShimano Ultegra Di2

    • Saddle

  • SaddleBontrager Aeolus Comp, steel rails, Size 47, 50, 52: 155mm width, Size 54, 56, 58, 60, 62: 145mm width
  • Seat PostMadone aero carbon seatpost, integrated light mount, 0mm offset, Size 47, 50, 52, 54: short length, Size 56, 58, 60, 62: long length

    • Suspension

  • ForkMadone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. Errors and omissions excepted.
