TrekMarlin 6 Gen 2 (27.5")

Loading..

Questions and Answers

Aluminum
Shimano Deore
27.5"
Diamond
Disc Brakes

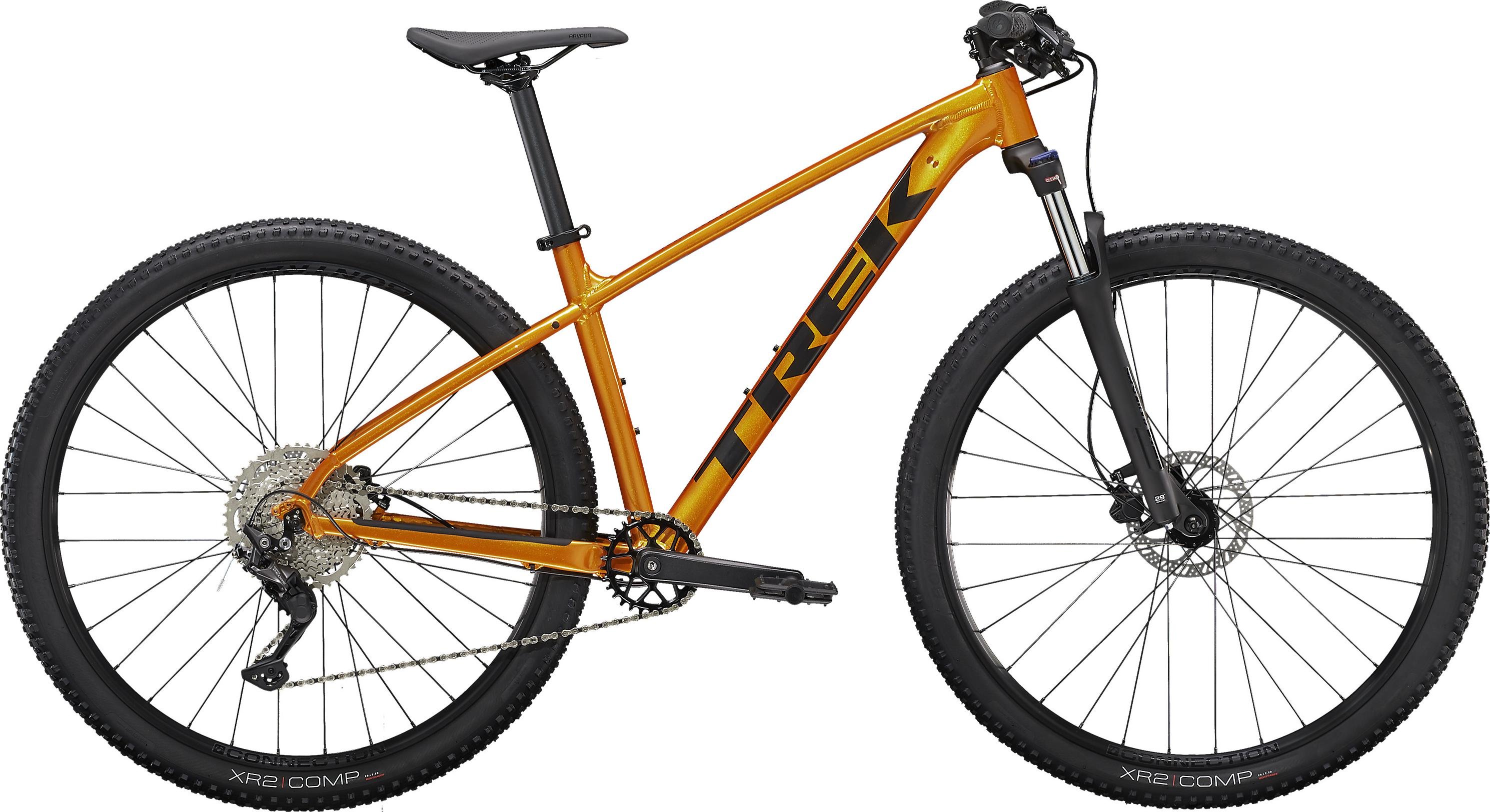

Marlin 6 is a cross country mountain bike built to give you an efficient off-road ride with a suspension fork that locks out, and a simple 1x drivetrain. It's made for mountain biking, but it's also equipped with features like rack and kickstand mounts that make it a great choice for adventurous daily commutes.

Brakes

  • Brake Tektro HD-M275 hydraulic discTektro HD-M275 hydraulic disc, 160mm rotor

    • Cockpit

  • StemBontrager alloy, 31.8mm, Blendr compatible, 7 degree, Size XS: 50mm length, Size S: 60mm length, Size M: 70mm length, Size ML , L: 80mm length, Size XL , XXL: 90mm length
  • GripsBontrager XR Endurance Comp, lock-on
  • Headset Semi-integrated, 1-1/8''
  • HandlebarBontrager alloy, 31.8mm, 5mm rise, Size XS: 690mm width, Size S , M , ML , L , XL , XXL: 720mm width

    • General

  • FrameAlpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR, Size XS , S: curved top tube
  • Weight*M - 14.11 kg / 31.11 lbs
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

    • Groupset

  • Chain / BeltKMC X10, 10 speed
  • Crank Prowheel C10Y-NW, 30T steel narrow-wide ring, 170mm length
  • Cassette Shimano Deore M4100, 11-46, 10 speed
  • Shifters Shimano Deore M4100, 10 speed
  • Bottom Bracket Sealed cartridge, 73mm
  • Rear Derailleur Shimano Deore M5120, long cage
  • PedalsVP-536 nylon platform
  • GearingShimano Deore/Prowheel, 1x10

    • Wheels & Tires

  • TiresBontrager XR2 Comp, wire bead, 30 tpi, Size XS , S: 27.5x2.20'', Size M , ML , L , XL , XXL: 29x2.20''
  • Rear Axis 152x5mm QR
  • WheelsBontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
  • Rear Hub Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
  • Front Hub Formula DC-20, alloy, 6-bolt, 5x100mm QR

    • Saddle

  • Saddle Bontrager Arvada, steel rails, 138mm width
  • Seat PostBontrager alloy, 31.6mm, 12mm offset, Size XS , S , M: 330mm length, Size ML , L , XL , XXL: 400mm length

    • Suspension

  • ForkSR Suntour XCT 30, coil spring, preload, hydraulic lockout, 100mm QR, Size XS: 42mm offset for 27.5'' wheel, 80mm travel, Size S: 42mm offset for 27.5'' wheel, 100mm travel, Size M , ML , L , XL , XXL: 46mm offset for 29'' wheel, 100mm travel
  • Fork typesuspension fork
  • Front suspension80mm
  • Fork ManufacturerSR Suntour
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. Errors and omissions excepted.
