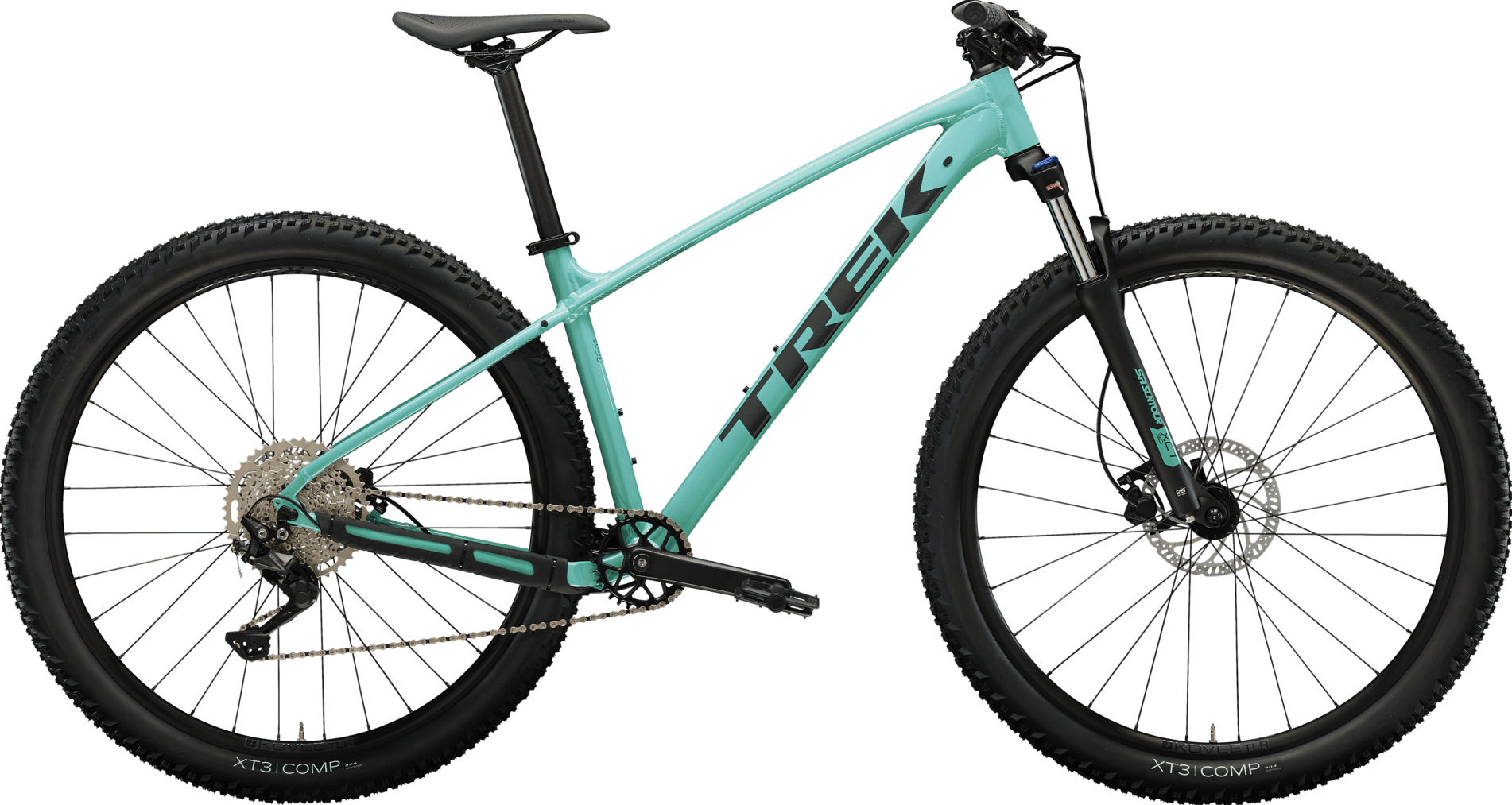

TrekMarlin 6 Gen 3

Loading..

Questions and Answers

Aluminum
Shimano Deore
26"
Diamond
Disc Brakes
Buy the Trek Marlin 6 Gen 3 at BikeExchange, your Marketplace for all things bike!

General

  • FrameAlpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew, Size XXS , XS: curved top tube
  • Weight*M - 14.80 kg / 32.63 lbs
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

    • Brakes

  • BrakeTektro HD-M275 hydraulic disc | Tektro HD-M275 hydraulic disc, 160mm rotor
  • RotorsMax brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer

    • Wheels & Tires

  • TiresBontrager XT3 Comp, wire bead, 30 tpi, Size XXS: 26x2.35'', Size XS , S: 27.5x2.40'', Size M , ML , L , XL , XXL: 29x2.40''
  • WheelsBontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
  • Rear HubFormula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
  • Front HubFormula DC-20, alloy, 6-bolt, 100mm ThruSkew
  • Rear AxisBontrager Switch thru axle
  • Spokes14g stainless steel

    • Cockpit

  • StemBontrager alloy, 31.8mm, Blendr compatible, 7 degree, Size XXS , XS , S: 35mm length, Size M , ML , L: 50mm length, Size XL: 60mm length, Size XXL: 70mm length
  • GripsBontrager XR Endurance Comp, lock-on
  • HandlebarBontrager alloy, 31.8mm, Size XXS , XS: 5mm rise, 690mm width, Size S: 15mm rise, 720mm width, Size M , ML , L , XL , XXL: 15mm rise, 750mm width
  • HeadsetSemi-integrated, 1-1/8''

    • Groupset

  • PedalsVP-536 nylon platform
  • CassetteShimano Deore M4100, 11-46, 10 speed
  • ShiftersShimano Deore M4100, 10 speed
  • Chain / BeltKMC X10, 10 speed
  • CrankProwheel C10Y-NW, 30T steel narrow-wide ring, Size XXS: 160mm length, Size XS , S , M , ML , L , XL , XXL: 170mm length
  • Bottom BracketVP BC73, 73mm, threaded cartridge
  • Rear DerailleurShimano Deore M5120, long cage
  • GearingShimano Deore

    • Saddle

  • SaddleBontrager Arvada, steel rails, 138mm width
  • Seat PostBontrager alloy, 31.6mm, 12mm offset, Size XXS: 300mm length, Size XS , S , M: 330mm length, Size ML , L , XL , XXL: 400mm length

    • Suspension

  • ForkSR Suntour XCT 30, coil spring, preload, hydraulic lockout, 100mm QR, 100mm travel, Size XXS: 42mm offset for 26'' wheel, Size XS , S: 42mm offset for 27.5'' wheel, Size M , ML , L , XL , XXL: 46mm offset for 29'' wheel
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. Errors and omissions excepted.
