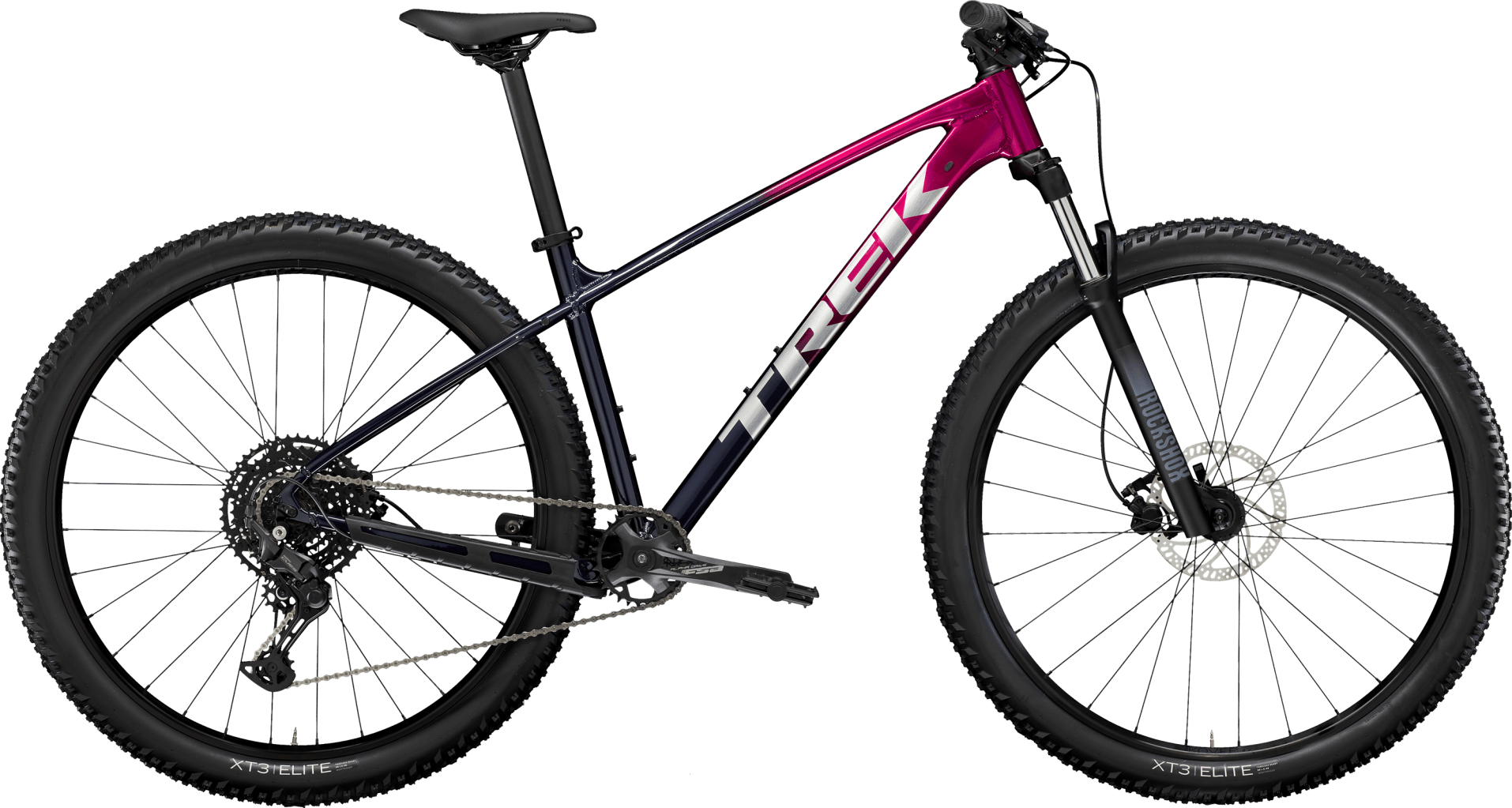

TrekMarlin 6 Gen 3
Unfortunately sold out.
This product variant is currently sold out. If available, you can choose a different color or size, or go back to the previous page.
Questions and Answers
Brakes
- RotorsMax brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer | Tektro, 6-bolt, 160mm
Cockpit
- StemBontrager Comp, 31.8 mm, 7-degree, 35 mm length
- HeadsetSemi-integrated, 1-1/8"
- HandlebarBontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
- GripsBontrager XR Trail Comp, nylon lock-on
General
- Frame materialAlloy
- Weight*M - 14.50 kg / 31.97 lbs
- FrameAlpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
- Maximum Weight Allowed 136 kg
Groupset
- CassetteShimano CUES LG300, LINKGLIDE, 11-48, 10-speed
- GearingShimano Cues
- CranksetFSA Alpha Drive, 30T
- CrankFSA Alpha Drive, 30T, 170 mm length
- PedalsVP-536 nylon platform
- ShiftersShimano U6000, 10-speed
- Bottom BracketFSA, 73 mm, threaded cartridge, 122.5 mm spindle
- Rear DerailleurShimano CUES U6000 GS
- Chain / BeltShimano LG500
Wheels & Tires
- TiresMaxxis Ardent Race, tubeless, EXO casing, folding bead, 60 tpi, 27.5x2.35"
- Rear HubFormula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
- Rear Axis173x5 mm QR
- WheelsBontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
- Front HubFormula DC-20, alloy, 6-bolt, 100 mm ThruSkew
Saddle
- SaddleBontrager Verse Short, stainless steel rails
- Seat PostBontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Suspension
- Fork typeSuspension Fork
- Front suspension100mm
- Fork ManufacturerRockShox
- ForkRockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Note on Product Images, Product Description and Specifications
Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components.
Images used on the product pages may partly be sample images and may deviate from the actual configuration. The specified specifications are solely decisive for the scope of delivery and the specific product design.
The specified model year corresponds to the model series defined by the manufacturer and not necessarily to the year of manufacture. Since some models are produced unchanged over several years, the actual year of manufacture may vary. Regardless of this, you will receive a current product in accordance with the specified specifications.
Product descriptions may be partly automatically generated. Despite careful checking, errors cannot be completely ruled out. The product description is therefore not binding; in this case, too, only the specifications are decisive.
Subject to alterations and errors.
