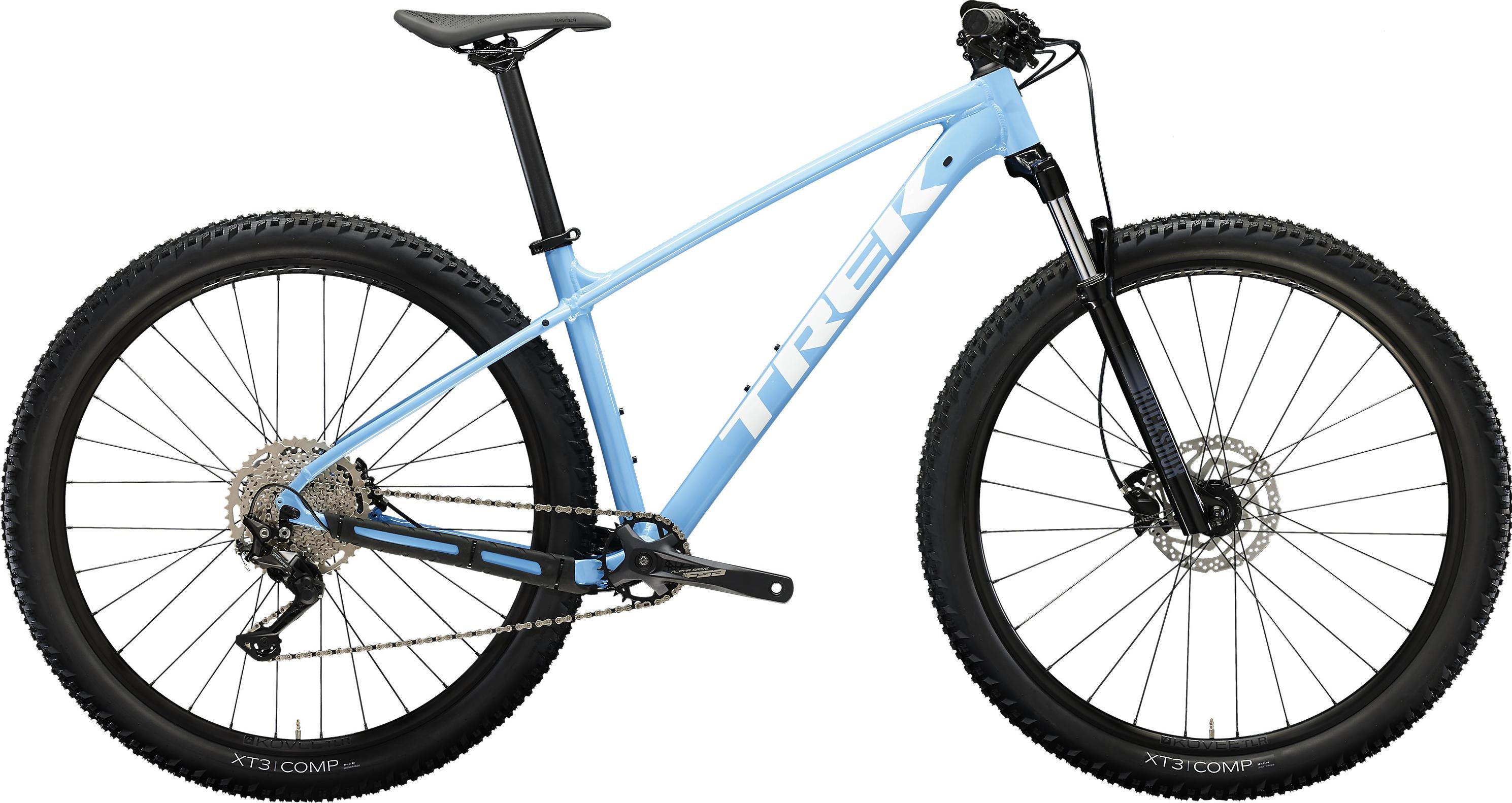

TrekMarlin 7 Gen 3

Loading..

Questions and Answers

Aluminum
Shimano Deore
29"
Diamond
Disc Brakes
Buy the trek at BikeExchange, your Marketplace for all things bike!

General

  • FrameAlpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew, Size XS: curved top tube
  • Weight*M - 14.60 kg / 32.19 lbs
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

    • Brakes

  • Brake Shimano MT200 hydraulic disc | Shimano MT200 hydraulic disc
  • RotorsShimano RT26, Size XS , S , M , ML , L , XL , XXL: 6-bolt,160mm, Size M , ML , L , XL , XXL: 6-bolt,180mm | Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer

    • Wheels & Tires

  • TiresBontrager XT3 Comp, wire bead, 30 tpi, Size XS , S: 27.5x2.40'', Size M , ML , L , XL , XXL: 29x2.40''
  • Wheels Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
  • Rear Hub Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
  • Front Hub Formula DC-20, alloy, 6-bolt, 100mm ThruSkew
  • Rear Axis Bontrager Switch thru axle

    • Cockpit

  • StemBontrager alloy, 31.8mm, Blendr compatible, 7 degree, Size XS , S: 35mm length, Size M , ML , L: 50mm length, Size XL: 60mm length, Size XXL: 70mm length
  • GripsBontrager XR Trail Comp, nylon lock-on
  • Headset Semi-integrated, 1-1/8''
  • HandlebarBontrager alloy, 31.8mm, Size XS: 5mm rise, 690mm width, Size S: 15mm rise, 720mm width, Size M , ML , L , XL , XXL: 15mm rise, 750mm width

    • Groupset

  • Chain / Belt KMC X10, 10 speed
  • CrankFSA Alpha Drive, 28T steel ring, Boost, Size XS , S , M: 170mm length, Size ML , L , XL , XXL: 175mm length
  • Pedals VP-536 nylon platform
  • Cassette Shimano Deore M4100, 11-46, 10 speed
  • Shifters Shimano Deore M4100, 10 speed
  • Bottom Bracket FSA, 73mm, threaded cartridge, 122.5mm spindle
  • Rear Derailleur Shimano Deore M5120, long cage

    • Saddle

  • Saddle Bontrager Arvada, steel rails, 138mm width
  • Seat PostBontrager alloy, 31.6mm, 12mm offset, Size XS , S , M: 330mm length, Size ML , L , XL , XXL: 400mm length

    • Suspension

  • ForkRockShox Judy, coil spring, preload, TurnKey lockout, 100mm QR, 100mm travel, Size XS , S: 42mm offset for 27.5'' wheel, Size M , ML , L , XL , XXL: 46mm offset for 29'' wheel
  • Fork typesuspension fork
  • Front suspension80mm
  • Fork ManufacturerRockShox
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. Errors and omissions excepted.
