TrekRail 7 Gen 3

Loading..

Unfortunately sold out.

This product variant is currently sold out. If available, you can choose a different color or size, or go back to the previous page.

Questions and Answers

Aluminum
625
Bosch
Shimano Deore XT
29"
Diamond
Disc Brakes

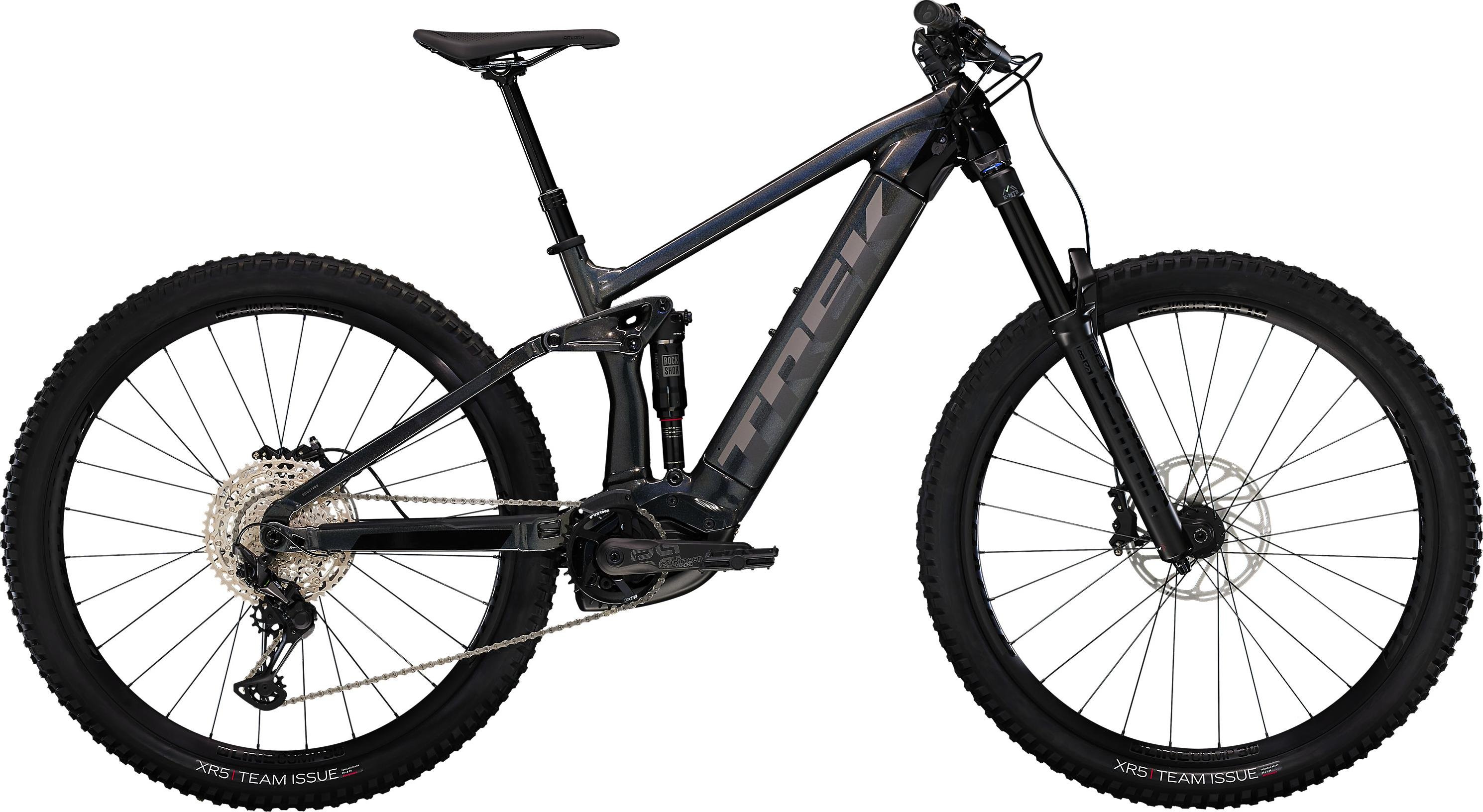

Introducing the Trek Rail 7 Gen 3 2023, the electric mountain bike that distinguishes itself with high performance and superior craftsmanship. Built around a robust Alpha Platinum Aluminum frame, this bike is designed to tackle challenging terrains while providing an exhilarating ride. The design features a Removable Integrated Battery (RIB), which not only enhances the bike's aesthetic but also m ...Read more

General

  • Weight*M - 24.73 kg / 54.53 lbs
  • Frame Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

Brakes

  • Brake Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
  • Rotors Shimano RT76, 6-bolt, 203mm | Max brake rotor sizes - Frame: 200mm, Fork: see fork manufacturer

Wheels & Tires

  • Front Wheel Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
  • Rear Wheel Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
  • Rear AxisBontrager Switch thru axle, removable lever
  • TiresBontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50''

Cockpit

  • StemBontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length
  • HandlebarBontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 780mm width
  • GripsBontrager XR Trail Comp, nylon lock-on
  • Display Bosch LED remote, smart system

Motor & Battery

  • Battery Capacity625 Wh
  • Torque85 Nm
  • Charger Bosch standard 4A, 110V, smart system
  • Battery ManufacturerBosch
  • Motor ManufacturerBosch
  • Maximum Motor Supportup to 25 kph
  • Battery Bosch PowerTube 625Wh, smart system
  • Motor Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm

Groupset

  • Cassette Shimano Deore M6100, 10-51, 12 speed
  • GearingShimano Deore XT
  • Crank E*thirteen E*spec Plus, 165mm length
  • Chainrings E*thirteen E*spec, 34T alloy, 55mm chainline
  • Pedals VP-536 nylon platform
  • Shifters Shimano SLX M7100, 12 speed
  • Rear Derailleur Shimano XT M8100, long cage
  • Chain / Belt Shimano Deore M6100, 12 speed

Saddle

  • Saddle Bontrager Arvada, steel rails, 138mm width
  • Seat PostTranzX JD-YSP18, internal routing, 31.6mm, Size S: 100mm travel, 361mm length, Size M, L, XL: 150mm travel, 470mm length

Suspension

  • Fork typesuspension fork
  • Front suspension160mm
  • Shock RockShox Deluxe Select+ RT, 230mm x 57.5mm
  • Fork ManufacturerRockShox
  • Fork RockShox Domain RC, DebonAir, Motion Control damper, lockout, tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel

Note on Product Images, Product Description and Specifications

Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components.

Images used on the product pages may partly be sample images and may deviate from the actual configuration. The specified specifications are solely decisive for the scope of delivery and the specific product design.

The specified model year corresponds to the model series defined by the manufacturer and not necessarily to the year of manufacture. Since some models are produced unchanged over several years, the actual year of manufacture may vary. Regardless of this, you will receive a current product in accordance with the specified specifications.

Product descriptions may be partly automatically generated. Despite careful checking, errors cannot be completely ruled out. The product description is therefore not binding; in this case, too, only the specifications are decisive.

Subject to alterations and errors.
