TrekRail 9.7 Gen 2

Loading..

Questions and Answers

Carbon
625
Bosch
Shimano Deore XT
29"
Diamond
Disc Brakes

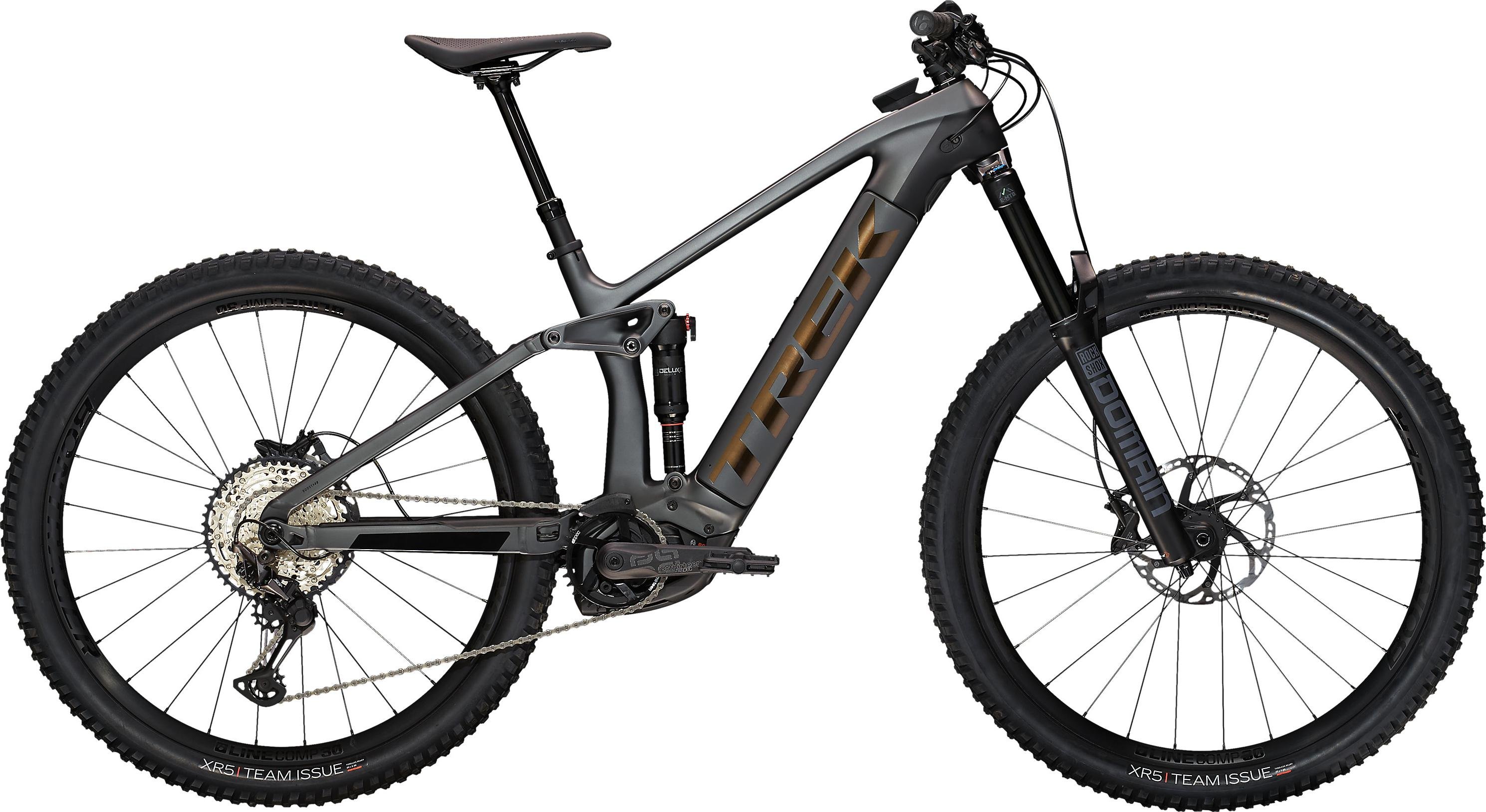

The Trek Rail 9.7 Gen 2 is an electric mountain bike designed for those who crave adventure on rugged terrain but also appreciate the convenience of a little boost from its powerful motor. Built with a lightweight OCLV Mountain Carbon main frame, this bike is not just sturdy; it also ensures easy handling and agility. The innovative Removable Integrated Battery (RIB) allows for a sleek look while ...Read more

Brakes

  • Brake Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
  • Rotors Shimano RT76, 6-bolt, 203mm

    • Cockpit

  • StemBontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length
  • GripsBontrager XR Trail Comp, nylon lock-on
  • Display Bosch Kiox with Anti-theft solution
  • Handlebar Bontrager Comp, alloy, 31.8mm, 15mm rise, 780mm width
  • HeadsetKnock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom

    • General

  • Frame OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
  • Weight*M - 22.96 kg / 50.62 lbs
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

    • Groupset

  • Chain / Belt Shimano SLX M7100, 12 speed
  • Crank E*thirteen E*spec Plus, 165mm length
  • Pedals VP-536 nylon platform
  • Cassette Shimano SLX M7100, 10-51T, 12 speed
  • Shifters Shimano SLX M7100, 12 speed
  • Chainrings E*thirteen, 34T, steel
  • Rear Derailleur Shimano XT M8100, long cage
  • GearingShimano XT/SLX, 12fach

    • Motor & Battery

  • Motor Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20mph or 32km/h max assist
  • Torque85 Nm
  • Battery Bosch PowerTube 625Wh
  • Charger Bosch standard 4A, 100-240V
  • Battery Capacity625 Wh
  • Motor ManufacturerBosch
  • Battery ManufacturerBosch
  • Maximum Motor Supportup to 25 kph

    • Wheels & Tires

  • TiresBontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50''
  • Rear AxisBontrager Switch thru axle, removable lever
  • Rear Wheel Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
  • Front Wheel Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle

    • Saddle

  • Saddle Bontrager Arvada, steel rails, 138mm width
  • Seat PostBontrager Line Dropper, internal routing, 31.6mm, Size S: 100mm travel, 345mm length, Size M, L, XL: 150mm travel, 440mm length

    • Suspension

  • Fork RockShox Domain RC, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel
  • Shock RockShox Deluxe Select+, 230mm x 57.5mm
  • Fork typesuspension fork
  • Front suspension160mm
  • Fork ManufacturerRockShox
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. Errors and omissions excepted.
