TrekRail 9.7 Gen 4 (625Wh)

Loading..

Questions and Answers

Carbon
625
Bosch
Shimano Deore XT
29"
Diamond
Disc Brakes

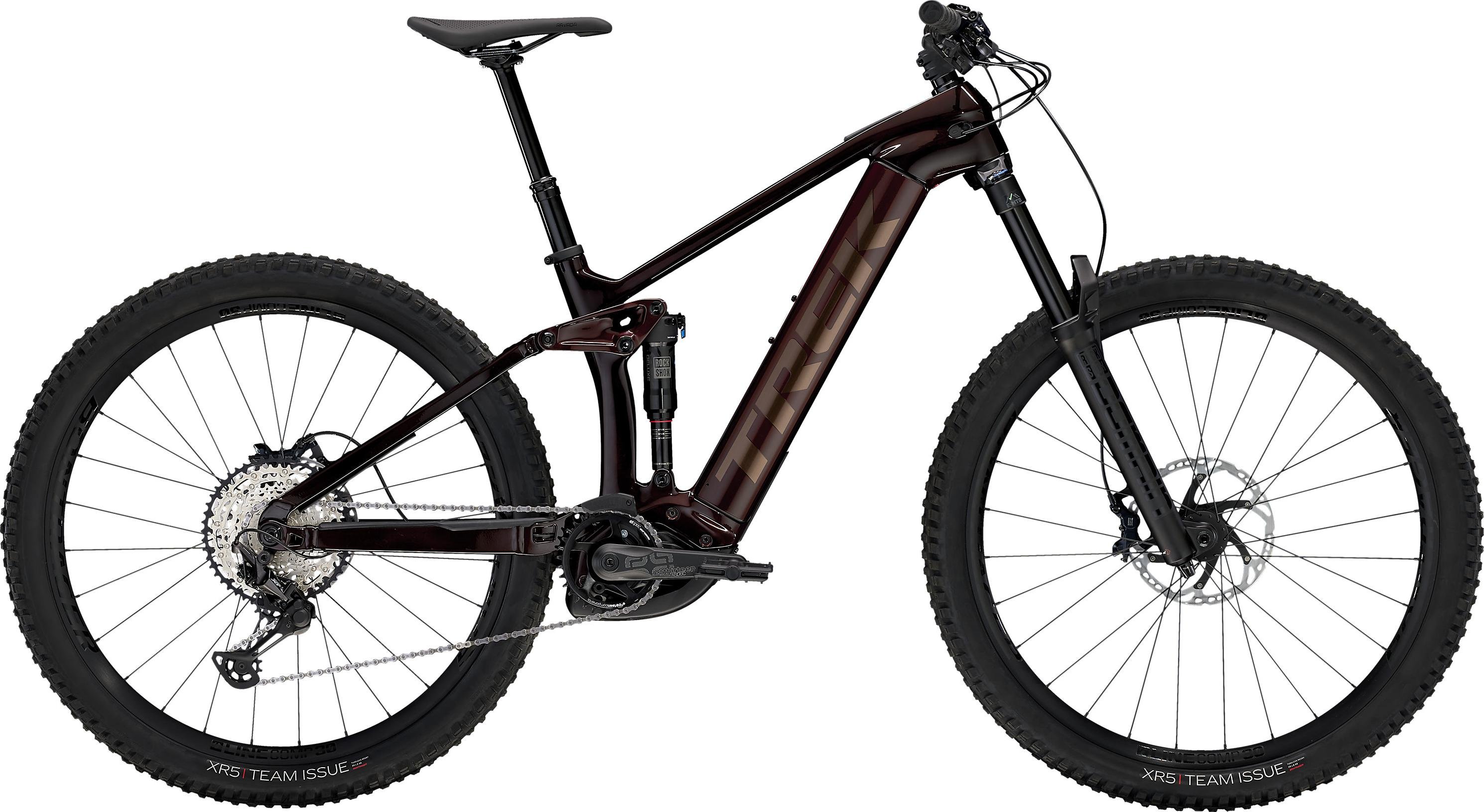

Introducing the Trek Rail 9.7 Gen 4 (625Wh) 2023 electric mountain bike, an exceptional choice for both seasoned trail enthusiasts and newcomers eager to tackle rugged landscapes. This bike brings together cutting-edge technology and top-notch performance, making your mountain biking experience not only enjoyable but also exhilarating.

The heart of this ride is its OCLV Mountain Carbon main frame, ...Read more

General

  • Frame OCLV Mountain Carbon main frame, 1.8'' lower head tube, Bosch System Controller compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9mm seat tube, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148
  • Weight*M - 24.65 kg / 54.35 lbs
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

    • Brakes

  • Brake Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
  • Rotors Shimano RT76, 6-bolt, 203mm | Max brake rotor sizes - Frame: 200mm, Fork: see fork manufacturer

    • Wheels & Tires

  • TiresBontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50''
  • Rear AxisBontrager Switch thru axle, removable lever
  • Rear Wheel Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
  • Front Wheel Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle

    • Cockpit

  • StemBontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length
  • GripsBontrager XR Trail Comp, nylon lock-on
  • Display Bosch LED remote, smart system
  • Handlebar Bontrager Comp, alloy, 31.8mm, 15mm rise, 780mm width

    • Motor & Battery

  • Motor Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
  • Torque85 Nm
  • Batterysmart system, Size S: Bosch PowerTube 625Wh, Size M, L, XL: Bosch PowerTube 750Wh
  • ChargerBosch standard 2A, 110V, smart system / Bosch standard 4A, 110V, smart system *
  • Battery Capacity625 Wh (S), 750 Wh (M-XL)
  • Motor ManufacturerBosch
  • Battery ManufacturerBosch
  • Maximum Motor Supportup to 25 kph

    • Groupset

  • Chain / Belt Shimano SLX M7100, 12 speed
  • Crank E*thirteen E*spec Plus, 165mm length
  • Pedals VP-536 nylon platform
  • Cassette Shimano SLX M7100, 10-51T, 12 speed
  • Shifters Shimano SLX M7100, 12 speed
  • Chainrings E*thirteen E*spec, 34T alloy, 55mm chainline
  • Rear Derailleur Shimano XT M8100, long cage
  • GearingShimano Deore XT

    • Saddle

  • SaddleBontrager Arvada, hollow chromoly rails, 138mm width / Bontrager Arvada, steel rails, 138mm width *
  • Seat PostTranzX JD-YSP39, internal routing, 34.9mm, Size S: 100mm travel, Size M: 150mm travel, Size L, XL: 170mm travel

    • Suspension

  • Fork RockShox Domain RC, DebonAir, Motion Control damper, lockout, 1.8'' oversized tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel
  • Shock RockShox Deluxe Select+ RT, 230mm x 57.5mm
  • Fork typesuspension fork
  • Front suspension160mm
  • Fork ManufacturerRockShox
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. Errors and omissions excepted.
